SV80-61-0-N-12DG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

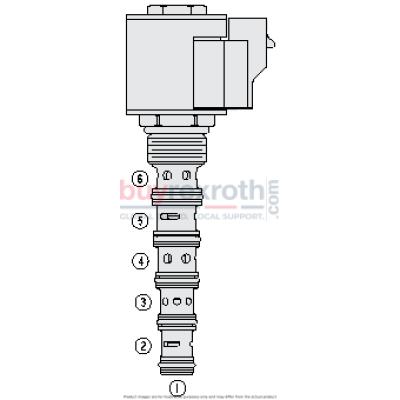

The Hydraforce SV80-61-0-N-12DG (5008827) is a high-performance solenoid-operated cartridge valve, designed for direct acting control within hydraulic systems. This 2-position, 6-way spool-type valve operates by blocking or allowing flow between designated ports depending on its energized or deenergized state. Specifically, it blocks flow to ports 5 and 6 while allowing flow between ports 4 and 3, and between ports 1 and 2 when deenergized. Upon energization, the configuration shifts to block flow to ports 2 and 3 while enabling flow between ports 4 and 5, and between ports 1 and 6. This valve is particularly suited for use as a selector in circuits controlling two cylinders of unequal area ratios. For optimal operation, the cylinder head sides should be connected to ports 3 and 5, with rod sides connected to ports 2 and 6. It features a hardened precision spool and cage ensuring longevity and reliability under various conditions. The SV80-61-0-N-12DG is equipped with heavy-duty waterproof E-Coils that are rated up to IP69K for robust performance even in demanding environments. These coils are continuous-duty rated and are interchangeable across different voltages for flexible usage. The unit's operational integrity is maintained across a wide range of temperatures from -40°C to +100°C with Buna N seals or up to +204°C with Viton seals, making it versatile for different hydraulic fluid applications. It supports mineral-based or synthetic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. Designed for easy installation in VC106 cavities without orientation restrictions, it has a broad pressure rating up to 207 bar (3000 psi) ensuring reliable operation under high-pressure conditions. This valve's compact design weighs only about 0.18 kg (0.4 lb), making it an efficient choice for space-conscious applications needing precise hydraulic control.
