SV80-61-0-N-00 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

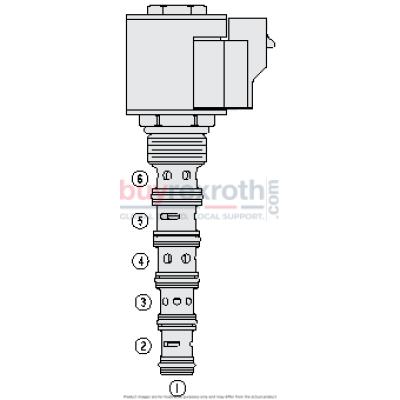

The Hydraforce SV80-61-0-N-00 (5008810) is a solenoid-operated, 2-position, 6-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed to control the direction of the flow in hydraulic systems. It operates by blocking or allowing flow between specified ports depending on whether it is energized or de-energized. Specifically, when de-energized, it blocks flow to ports 5 and 6 while allowing flow between ports 4 and 3, and between ports 1 and 2. Conversely, when energized, it shifts to block flow to ports 2 and 3 and permits flow between ports 4 and 5, and between ports 1 and 6. This valve is particularly useful in circuits where it acts as a selector to direct flow between two cylinders of unequal area ratios; connections for cylinder head sides should be made to ports 3 and 5, with rod sides connected to ports 2 and 6. The SV80-61-0-N-00 features a hardened precision spool and cage ensuring longevity under demanding conditions. It supports various coil voltages and terminations with heavy-duty waterproof E-Coils that are rated up to IP69K for high-degree protection against ingress of dust and water. The coils are continuous-duty rated, highlighting their reliability for sustained operations. In terms of technical specifications, this model accommodates a pressure rating up to 207 bar (3000 psi) with maximum internal leakage maintained at around 246 ml/min at the same pressure level. It operates efficiently within fluid temperatures ranging from -40°C to +100°C with Buna N seals or -26°C to +204°C with Viton seals. The valve's design allows it to handle mineral-based or synthetic hydraulic fluids within a viscosity range of approximately 7.4 to 420 cSt. Overall, the Hydraforce SV80-61-0-N-00 offers robust performance for complex hydraulic systems requiring precise control over fluid handling across multiple lines simultaneously without orientation restrictions during installation.
