SV80-61-0-N-12ER SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

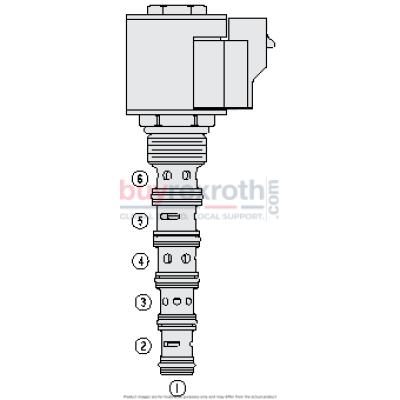

The Hydraforce 5008811 (5008811) is a solenoid-operated, 2-position, 6-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This valve operates by controlling the flow between multiple ports based on its energized or de-energized state. When de-energized, the SV8061 configuration blocks flow to ports 5 and 6 while allowing flow between ports 4 and 3, and between ports 1 and 2. Conversely, when energized, the spool shifts to block flow to ports 2 and 3 and permits flow between ports 4 and 5, as well as between ports 1 and 6. This valve is particularly effective in circuits where it acts as a selector to direct flow between two cylinders of unequal area ratios. For optimal operation in such setups, it is recommended that the cylinder head sides be connected to ports 3 and 5 while rod sides connect to ports 2 and 6. The Hydraforce SV8061 is engineered with a hardened precision spool and cage which ensures longevity even under demanding conditions. It features optional coil voltages and terminations tailored to different system requirements. Enhancing its suitability for rugged environments, this model comes with heavy-duty waterproof E-Coils that are rated up to IP69K for high-degree protection against ingress of dust and high-temperature high-pressure water jets. Additionally, these coils are continuous-duty rated, indicating reliability for extended operational periods. The cartridges are designed to be voltage interchangeable which provides flexibility in maintenance and replacement processes.
