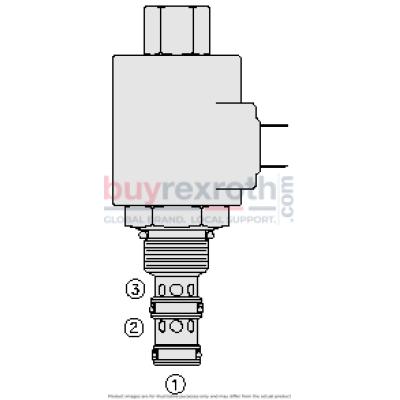

The Hydraforce TS10-36AM-0-N-00 (Material Number: 5122101) is a highly specialized screw-in, cartridge-style valve designed for precise pressure control in hydraulic systems. This pilot-operated, spool-type, proportional pressure reducing/relieving valve can be infinitely adjusted using a variable electric input, with the regulated pressure being directly proportional to the input electrical current. It operates by allowing flow from port 2 to port 1 until the desired pressure is achieved at port 1, at which point it restricts inlet flow to maintain this pressure and relieves excess from port 1 to port 3. The valve features standard 12 and 24 volt coils and offers optional waterproof E-Coils rated up to IP69K for enhanced durability in harsh environments. It fits an industry-common cavity and includes an optional manual override. The TS10-36AM-0-N-00 is rated for pressures up to 241.3 bar (3500 psi) at ports 1 and 2, with a relief setting of approximately 100 psi when no current is applied. It boasts a cycle life with less than 5% performance degradation over one million cycles under specified conditions. The valve supports operating fluid temperatures between -40\u00b0C to 100\u00b0C with buna N seals, among other seal options for different temperature ranges. The recommended PWM frequency for optimal operation is set at 200 Hz. Installation requires a VC10-3 cavity with specified torque settings for the cartridge and coil nut, ensuring secure placement without orientation restrictions. For maintenance or replacement purposes, compatible seal kits and housings are available, supporting its versatile application in various hydraulic systems requiring precise pressure management.
