INTERFACE MODULE R-IB IL AI 4/EF-PAC

Manufacturer: Bosch Rexroth

Material #: R911170426

Model : R-IB IL AI 4/EF-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL AI 4/EF-PAC (R911170426) is an advanced analog input module designed for seamless integration within an Inline station. This high-precision module specializes in the acquisition of analog voltage or current signals, providing a versatile solution for various automation tasks. The unit features differential input channels that can handle a range of inputs including ...mA to ...mA, mA; as well as ...V to V, ...V, and V levels, accommodating a broad spectrum of signal requirements. The module's connection capabilities are robust, offering both 2-wire and 3-wire connection options to ensure compatibility with different sensor types and configurations. This flexibility makes it suitable for diverse application scenarios where precise signal processing is critical. The R-IB IL AI 4/EF-PAC comes complete with necessary accessories such as a connection plug and a labeling field, which simplifies installation and maintenance processes. Designed with practicality in mind, this input module boasts protection type IP20, ensuring it is safeguarded against touch by fingers and objects greater than 12 millimeters but not protected against water. This level of protection is appropriate for indoor use where exposure to moisture is not a concern. In summary, the Bosch Rexroth R-IB IL AI 4/EF-PAC (R911170426) stands out as an essential component for industrial automation systems requiring accurate and reliable analog signal acquisition. Its compatibility with various signal ranges, ease of installation, and protective features make it an indispensable tool for ensuring operational efficiency in complex automated environments.

$1,344.78 USD

More are expected on December 19, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 19, 2024 when ordered in

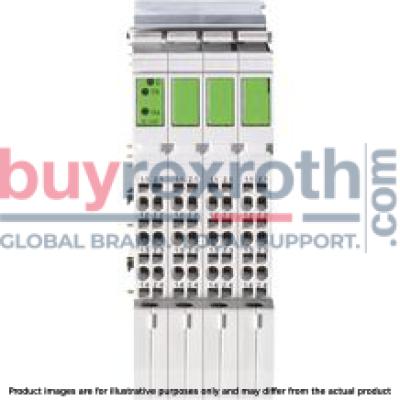

INTERFACE MODULE R-IB IL AI 4/EF-PAC

Inline connector

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.254 kg

This module is designed for use within an Inline station. It is used to acquire analog voltage or current signals.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual

Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Width	48.8
Productgroup ID	4,6
Height	136.8
International protection code	IP20
Permissible air humidity (storage)	10-95
Permissible air humidity (transport)	10-95
A/D conversion time	10
Voltage input signal	0-10 V; ±10 V; 0-5 V; ±5 V
Number of channels	4
Current input signal	0-20 mA; ±20 mA 4-20 mA
Resolution A/D	16 Bit
Connection type	Tension spring modules
Connectivity technology	2-, 3-, 4-wire technology (shielded)
Depth	72
Weight	0.254
Ambient temperature (during operation)	-25-55
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.08-0.5 mm²,Flexible: 0.08-0.5 mm²,AWG: 28 ... 16

General data

Type		R-IB IL AI 4/EF-PAC
Weight 1)	g	210
Operating mode		Process data operation with 5 words/1 word PCP
Sensor connection type		2-, 3-, 4-wire technology (shielded)
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20, IEC 60529
Protection class		III, VDE 0106, IEC 60536

1)	Including plug

Connection data

Type		R-IB IL AI 4/EF-PAC
Designation		Inline connection plug
Connection type		Tension spring modules
Conductor cross-section solid/flexible/AWG		0.08 mm² ... 1.5 mm² 0.08 mm² ... 1.5 mm² 28 ... 16

Interface local bus

Type		R-IB IL AI 4/EF-PAC
Connection type		Data ranking
Transmission speed	kBit/s	500

Inline potentials/performance balance

Type		R-IB IL AI 4/EF-PAC
Logic voltage UL	V DC	7.5
Typical current consumption from UL	mA	85
Maximum current consumption from UL	mA	100
Peripheral supply voltage UANA	V DC	24
Typical current consumption from UANA	mA	13
Maximum current consumption from UANA	mA	20
Typical power consumption total	mW	950
Maximum power consumption total	mW	1250

Supply of module electronics and peripherals via bus coupler/power feed module

Type		R-IB IL AI 4/EF-PAC
Connectivity technology		Potential jumpers

Sensor supply voltage UIS via feed from UM

Type		R-IB IL AI 4/EF-PAC
Nominal value UIS	V DC	24
Nominal current IIS per channel	mA	50
Guarantee		Internal, channel electronic fuse, short-circuit protected with single-channel diagnostics - - -
Short-circuit protection		Short-circuit protection with electronic fuse

Analog inputs

Type		R-IB IL AI 4/EF-PAC
Number of analog inputs 1)		4
A/D conversion time	µs	≤ 10
Limit frequency (3 dB)	Hz	500
Measurement representation		16 bits (15 bits + sign) 13 bits (12 bits + sign) 16 bits (15 bits + sign) 16 bits (15 bits + sign) - -
Data formats		IB IL, IB ST, S7-compatible, standardized representation
Average		None or averaged over 4, 16 or 32 measured valuesdefault setting: 16 measured values
Process data update	ms	< 1
Bus synchronicity		Yes
Transient protection of the inputs		Via diverter

1)	Analog differential inputs

Differential inputs, voltage

Type		R-IB IL AI 4/EF-PAC
Number of inputs		4
Voltage input signal		0 V … 10 V; ±10 V 0 V … 5 V; ±5 V - -
Typical input resistance voltage input	kΩ	≈ 300
Open circiut response		Goes to 0 V
Common-mode voltage range signal ‒ ground		-50 V DC … 50 V DC

Differential inputs, current

Type		R-IB IL AI 4/EF-PAC
Number of inputs		4
Current input signal		0 mA … 20 mA; ±20 mA 4 mA … 20 mA -
Typical input resistance power input 1)	Ω	≈ 110
Open circiut response		Goes to 0 mA
Maximum overload protection		Overload protected; max. ±30 V DC

1)	Measuring resistance

Mechanical tests

Type		R-IB IL AI 4/EF-PAC
Shock 1)		Load 15 g for 11 ms, half sinusoidal wave, three shocks per spatial direction and orientationLoad 25 g for 6 ms, half sinusoidal wave, three shocks per spatial direction and orientation acc. to EN 60068-2-27/IEC 60068-2-27

1)	Deviations compared to the common technical data given in the application description DOK-CONTRL-ILSYSPRO***-AW..-DE-P

Conformity

Type		R-IB IL AI 4/EF-PAC
Conforms with
Testing of interference immunity acc. to EN 61000-6-2 1)	Discharge of static electricity (ESD)	Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2

1)	Deviations compared to the common technical data given in the application description DOK-CONTRL-ILSYSPRO***-AW..-DE-P

Tolerance and temperature behavior of the inputs

		Tolerance absolute, typical	Tolerance absolute, maximum	Tolerance relative, typical	Tolerance relative, maximum
TU = 25 °C
Measurement range	0 V ... 5 V ±5 V	± 2.5 mV	± 7.5 mV	± 0.05 %	± 0.15 %
	0 V ... 10 V ±10 V	± 2.5 mV	± 10 mV	± 0.025 %	± 0.1 %
	0 mA ... 20 mA 4 mA ... 20 mA±20 mA	± 14 μA	± 40 μA	± 0.07 %	± 0.2 %
TU = -25 °C … +55 °C
Measurement range	0 V ... 5 V ±5 V	± 9 mV	± 20 mV	± 0.18 %	± 0.4 %
	0 V ... 10 V ±10 V	± 13 mV	± 30 mV	± 0.13 %	± 0.3 %
	0 mA ... 20 mA 4 mA ... 20 mA±20 mA	± 22 μA	± 80 μA	± 0.11 %	± 0.4 %

Additional tolerances under the influence of electromagnetic fields

Type			R-IB IL AI 4/EF-PAC
Type of electromagnetic interference	Typical deviation from the measurement range end value ‒ relative
Electro-magnetic fields Field strength 10 V/macc. to EN 61000-4-3/IEC 61000-4-3	Voltage input	%	< ± 1
	Current input	%	< ± 1
Line-fed disturbances III (test voltage 10 V)acc. to EN 61000-4-6/IEC 61000-4-6	Voltage input	%	< ± 1
	Current input	%	< ± 1
Fast transient disturbances (burst) supply 4 kV, input 2 kVacc. to EN 61000-4-4/IEC 61000-4-4	Voltage input	%	< ± 1
	Current input	%	< ± 1

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL AI 4/EF-PAC
Common potentials
24 V main voltage UM, 24 V segment voltage US and GND are on the same potential. FE represents a separate potential area.
Separate potentials in the system of bus coupler/feed module and I/O module
Test distance		Test voltage
7.5 V supply (bus logic), 24 V supply UANA/analog peripherals		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic), 24 V supply UANA/function earth		500 V AC, 50 Hz, 1 min.
Analog peripherals/function earth		500 V AC, 50 Hz, 1 min.

Error messages to the higher-level control or computer system

Type		R-IB IL AI 4/EF-PAC
Error message		Upon failure of the internal peripheral voltage supply: Peripheral error message to the bus coupler Upon failure or undershooting of the logic voltage UL: Peripheral error message to the bus coupler Upon peripheral / user error: Error signal via input process data

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-IB IL AI 4/EF-PAC
A	mm	48.8
B	mm	136.8
C	mm	72
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
