INTERFACE MODULE R-IB IL AI 4/U-PAC

Manufacturer: Bosch Rexroth

Material #: R911172895

Model : R-IB IL AI 4/U-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL AI 4/U-PAC (R911172895) is an advanced analog input module tailored for integration within an Inline station, designed to facilitate the acquisition of analog voltage signals with precision and reliability. This module features differential input channels, which enhance signal integrity by minimizing electrical noise and potential interference, thus ensuring accurate data acquisition in various application scenarios. Equipped with a robust V wire connection technique, the R-IB IL AI 4/U-PAC ensures secure and stable connectivity for consistent performance. This is particularly beneficial in environments where reliable signal transmission is critical. The module's design also simplifies installation and maintenance processes due to its user-friendly connection plug and clearly organized labeling field, which aids in quick identification and troubleshooting. The versatility of the R-IB IL AI 4/U-PAC makes it suitable for a wide range of applications that require precise monitoring of analog parameters such as temperature, pressure, or flow rates. Its capability to handle ...V inputs allows it to be flexible enough to cater to different sensor types and signal ranges, making it an ideal choice for industries that utilize complex automation systems. Furthermore, the inclusion of accessories with the module ensures that users have all necessary components for immediate deployment into their systems. The Bosch Rexroth R-IB IL AI 4/U-PAC (R911172895) stands out as a reliable solution for professionals seeking efficient and accurate analog signal processing within their automated control systems.

$579.34 USD

More are expected on December 23, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 23, 2024 when ordered in

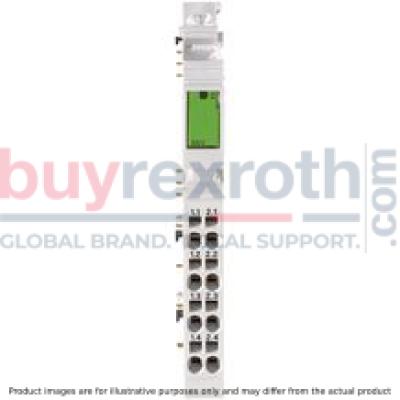

INTERFACE MODULE R-IB IL AI 4/U-PAC

Inline connector

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.089 kg

This module is designed for use within an Inline station. It is used to acquire analog voltage signals.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual

Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Width	12.2
Productgroup ID	4,6
Height	120
International protection code	IP20
Permissible air humidity (storage)	10-95
Permissible air humidity (transport)	10-95
A/D conversion time	6.5
Number of channels	4
Connection type	Zugfederanschluss
Connection techniques	2-Leitertechnik
Depth	71.5
Weight	0.089
Ambient temperature (during operation)	-25-55
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16

General data

Type		R-IB IL AI 4/U-PAC
Color		Gray
Weight 1)	g	66
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20, IEC 60529
Protection class		III, IEC 61140, EN 61140, VDE 0140-1

1)	Including plug

Connection data

Type		R-IB IL AI 4/U-PAC
Designation		Inline connection plug
Connection type		Spring-cage connection
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16

Interface local bus

Type		R-IB IL AI 4/U-PAC
Connection type		Inline data jumper
Transmission speed	kBit/s	500
Transfer physics		Copper

Inline potentials/performance balance

Type		R-IB IL AI 4/U-PAC
Logic voltage UL 1)	V DC	7.5
Typical current consumption from UL	mA	55
Peripheral supply voltage UANA	V DC	24
Typical current consumption from UANA	mA	30
Typical power consumption total	W	0.94

1)	Via potential jumpers

Analog inputs

Type		R-IB IL AI 4/U-PAC
Number of analog inputs 1)		4
Connectivity technology		2-wire technology
Resolution A/D	bits	12
A/D conversion time	µs	≤ 6.5
Limit frequency (3 dB)	Hz	300
Measurement representation		12 bits (11 bits + sign) - - - - -
Data formats		IB IL, S7 compatible
Process data update 2)	µs	250
Filtering		None or averaged over 4, 16 or 32 measured values
Overload protection	V DC	± 30
Typical input resistance voltage input	kΩ	324
Open circiut response		Goes to 0 V
Common-mode voltage range signal ‒ ground		max. 50 V

1)	Differential inputs, voltage
2)	All channels

Programming data

Type		R-IB IL AI 4/U-PAC
ID code (hex)		7F
ID code (dec)		127
Length code (hex)		04
Length code (dec)		04
Input address room	byte	8
Output address room	byte	8
Parameter channel (PCP)	byte	0
Register length (bus)	bits	64

Fieldbus data telegram

Type		R-IB IL AI 4/U-PAC
Need for parameter data	byte	10
Need for configuration data	byte	5

Error messages to the higher-level control or computer system

Type		R-IB IL AI 4/U-PAC
Error message		Upon failure of the internal peripheral power supply: Peripheral error message to the bus coupler Upon failure of the peripheral power supply: Message in the diagnostic code (in format IB IL) When the measurement range is exceeded or undershot: Message in the diagnostic code (in format IB IL) Upon invalid configuration: Message in the diagnostic code (in format IB IL)

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL AI 4/U-PAC
Test distance		Test voltage
5 V supply incoming remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
5 V supply to further remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic), 24 V supply UANA/peripherals		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic), 24 V supply UANA/function earth		500 V AC, 50 Hz, 1 min.
Peripherals/function earth		500 V AC, 50 Hz, 1 min.

Conformity

Type		R-IB IL AI 4/U-PAC
Conforms with
Testing of interference immunity acc. to EN 61000-6-2	Discharge of static electricity (ESD)	Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2
	Electro-magnetic fields	Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3
	Fast transients (burst)	Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4
	Transient overvoltage (surge)	Criterion B; supply lines DC: ±1 kV/±1 kV (symmetric/asymmetric); ±1 kV on shielded I/O lines acc. to EN 61000-4-5/IEC 61000-4-5
	Line-fed disturbances	Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6
Testing of disturbance transmission acc. to EN 61000-6-3	Radio disturbance characteristics	Class A acc. to EN 55022

Approvals
The current approvals can be found at www.boschrexroth.com.

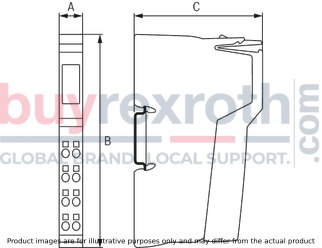

Dimensions

Type		R-IB IL AI 4/U-PAC
A	mm	12.2
B	mm	120
C	mm	71.5
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
