INTERFACE MODULE R-IB IL AI 8/IS-PAC

Manufacturer: Bosch Rexroth

Material #: R911308494

Model : R-IB IL AI 8/IS-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL AI 8/IS-PAC (R911308494) is a sophisticated analog input module designed to integrate seamlessly within an Inline station. This module specializes in acquiring accurate analog current signals from both active and passive sensors, ensuring reliable data capture for a variety of applications. The R-IB IL AI 8/IS-PAC features multiple input ranges, which include ...mA to ...mA, offering flexibility for different sensor types and signal requirements. Equipped with a wire connection setup, this module ensures straightforward installation and maintenance. It also comes complete with essential accessories such as a connection plug and a labeling field, which simplifies the process of organizing and identifying connections within complex systems. The design of this module emphasizes ease of use while maintaining high performance in signal acquisition tasks. The capability to handle various input ranges makes the R-IB IL AI 8/IS-PAC a versatile component suitable for an array of industrial applications where precise monitoring of analog signals is critical. Its integration into the Inline station system allows for scalable solutions that can grow with the needs of the application, providing users with a flexible platform that can adapt to changing requirements. Bosch Rexroth's commitment to quality and innovation is evident in the reliable operation and durable construction of the R-IB IL AI 8/IS-PAC module.

$2,052.64 USD

More are expected on December 23, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 23, 2024 when ordered in

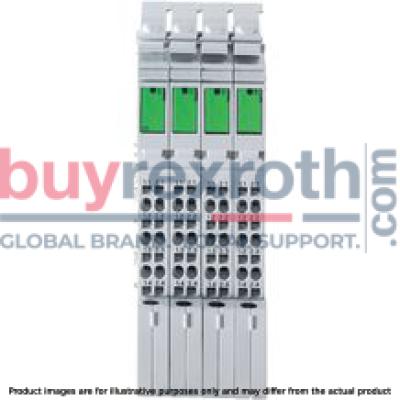

INTERFACE MODULE R-IB IL AI 8/IS-PAC

Inline connector

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.252 kg

This module is designed for use within an Inline station. It is used to acquire analog current signals from active and passive sensors.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual

Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport)	70-106 kPa (up to 3,000 m above sea level)
Width	48.8
Productgroup ID	4,6
Height	136.8
International protection code	IP20
Permissible air humidity (storage)	10-95
Permissible air humidity (transport)	10-95
A/D conversion time	10
Number of channels	8
Connection type	Zugfederanschluss
Connection techniques	2-, 3-Leitertechnik
Depth	72
Weight	0.252
Ambient temperature (during operation)	-25-55
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16

General data

Type		R-IB IL AI 8/IS-PAC
Weight 1)	g	215
Operating mode		Process data operation with 4 bytes
Sensor connection type		2-, 3-wire technology
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20, IEC 60529
Protection class		III, VDE 0106, IEC 60536

1)	Including plug

Connection data

Type		R-IB IL AI 8/IS-PAC
Designation		Inline connection plug
Connection type		Tension spring modules
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16

Interface local bus

Type		R-IB IL AI 8/IS-PAC
Connection type		Data ranking
Transmission speed	kBit/s	500

Inline potentials/performance balance

Type		R-IB IL AI 8/IS-PAC
Logic voltage UL	V DC	7.5
Typical current consumption from UL	mA	52
Maximum current consumption from UL	mA	65
Peripheral supply voltage UANA	V DC	24
Typical current consumption from UANA	mA	31
Maximum current consumption from UANA	mA	40
Typical power consumption total	mW	1134

Supply of module electronics and peripherals via bus coupler/power feed module

Type		R-IB IL AI 8/IS-PAC
Connectivity technology		Potential jumpers

Sensor supply voltage UIS via feed from UM

Type		R-IB IL AI 8/IS-PAC
Nominal value UIS	V	+ 24
Permissible range		+10 V … +30 V
Permissible temperature range (Tu)		-25 °C ... +55 °C
Nominal current IIS per channel	mA	+ 20
Nominal current IISMAX ‒ peripheral plug 1)	mA	+ 50
Guarantee		Internal, electronic fuse, short-circuit protected - - -

1)	Total current for two channels

Analog inputs

Type			R-IB IL AI 8/IS-PAC
Number of analog inputs 1)			8
A/D conversion time		µs	≤ 10
Measurement representation			16 bits (15 bits + sign) 13 bits (12 bits + sign) 16 bits (15 bits + sign) 16 bits (15 bits + sign) 16 bits -
Data formats			IB IL, IB ST, IB RT, standardized representation, PIO
Average			None or averaged over 4, 16 or 32 measured valuesdefault setting: 16 measured values
Process data update			Bus synchronous
Firmware runtime depending on the command	0x00hex	µs	< 800
	5x00hex	µs	< 850
	7000hex/7100hex	µs	< 1500
	7400hex/7500hex/7600hex/7700hex	µs	< 1300

1)	Analog single-ended inputs

Analog input levels

Type		R-IB IL AI 8/IS-PAC
Input resistance 1)	Ω	25
Cut-off frequency (–3 dB) of the input filter	Hz	3.5
Behavior upon sensor interruption		Regulating toward 0 mA or 4 mA
Maximum permissible voltage between analog current inputs and analog reference potential or between two power inputs 2)	V	± 2.5
Maximum permissible current in each input 3)	mA	± 100

1)	Measuring resistance
2)	Equal to 100 mA due to the measuring resistances
3)	Destruction limit

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL AI 8/IS-PAC
Common potentials
24 V main voltage UM, 24 V segment voltage US and GND are on the same potential. FE represents a separate potential area.
Separate potentials in the system of bus coupler/feed module and I/O module
Test distance		Test voltage
5 V supply incoming remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
5 V supply to further remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic), 24 V supply UANA/peripherals		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic), 24 V supply UANA/function earth		500 V AC, 50 Hz, 1 min.
Peripherals/function earth		500 V AC, 50 Hz, 1 min.

Error messages to the higher-level control or computer system

Type		R-IB IL AI 8/IS-PAC
Error message		Upon failure of the voltage supply UANA: Peripheral error message Upon peripheral / user error: Error signal via input process data

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-IB IL AI 8/IS-PAC
A	mm	48.8
B	mm	136.8
C	mm	72
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
