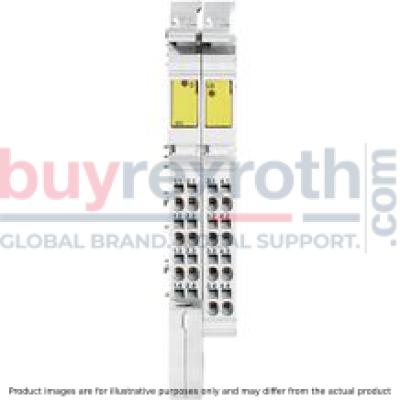

R-IB IL AO 1/SF/CN-PAC

Manufacturer: Bosch Rexroth

Material #: R911172575

Model : R-IB IL AO 1/SF/CN-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL AO 1/SF/CN-PAC (R911172575) is a high-precision module engineered for seamless integration within an Inline station to facilitate the output of analog current or voltage signals. This module is adept at converting digital signals from the control level to analog signals, which are then used for driving actuators or for monitoring purposes. It serves as a crucial interface between the digital world of control systems and the analog inputs and outputs found in various automation environments. The R-IB IL AO 1/SF/CN-PAC module boasts remarkable versatility, being capable of handling a wide range of signal types, which makes it suitable for diverse applications that require precise control over process parameters such as temperature, pressure, or flow rate. Its robust design ensures reliable operation even in demanding industrial conditions. This Bosch Rexroth module stands out with its ease of installation and maintenance, designed with user-friendly features that promote quick setup and minimal downtime. Its compact form factor allows efficient use of space within control cabinets, while also ensuring compatibility with other components in the Inline station series. In summary, the R911172575 model from Bosch Rexroth is a specialized output module that excels in converting digital commands into precise analog outputs necessary for controlling complex industrial processes. Its integration capabilities and reliability make it an essential component for operations seeking accuracy and efficiency in their automation systems.

$921.98 USD

More are expected on January 14, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as January 14, 2025 when ordered in

This module is designed for use within an Inline station. It is used to output analog current or voltage signals.

General data

Type		R-IB IL AO 1/SF(/CN)-PAC
Color		Gray
Weight 1)	g	126
Operating mode		Process data operation with 1 word
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20
Protection class		III, IEC 61140, EN 61140, VDE 0140-1

1)	Including plug

Connection data

Type		R-IB IL AO 1/SF(/CN)-PAC
Designation		Inline connection plug
Connection type		Spring-cage connection
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16

Interface local bus

Type		R-IB IL AO 1/SF(/CN)-PAC
Connection type		Inline data jumper
Transmission speed	kBit/s	500
Transfer physics		Copper

Inline potentials/performance balance

Type		R-IB IL AO 1/SF(/CN)-PAC
Logic voltage UL 1)	V DC	7.5
Typical current consumption from UL	mA	30
Maximum current consumption from UL	mA	40
Peripheral supply voltage UANA	V DC	24
Typical current consumption from UANA	mA	50
Maximum current consumption from UANA	mA	65
Typical power consumption total	W	1.425

1)	Via potential jumpers

Analog outputs

Type		R-IB IL AO 1/SF(/CN)-PAC
Number of analog outputs		1
Connectivity technology		2-wire technology (shielded)
Resolution D/A	bits	16
Output value representation		16 bits
Process data update	ms	< 1
Transient protection		Yes

Analog outputs, current

Type		R-IB IL AO 1/SF(/CN)-PAC
Current output signal		0 mA ... 20 mA 4 mA ... 20 mA -
Output load current output	Ω	> 500
Precision		Typ. 0.8 % (of the output range end value)

Analog outputs, voltage

Type		R-IB IL AO 1/SF(/CN)-PAC
Voltage output signal		0 V ... 10 V
Output load voltage output	kΩ	> 2
Precision		Typ. 0.5 % (of the output range end value)

Programming data

Type		R-IB IL AO 1/SF(/CN)-PAC
ID code (hex)		7D
ID code (dec)		125
Length code (hex)		01
Length code (dec)		01
Process data channel	bits	16
Input address room	byte	0
Output address room	byte	2
Parameter channel (PCP)	byte	0
Register length (bus)	bits	16

Fieldbus data telegram

Type		R-IB IL AO 1/SF(/CN)-PAC
Need for parameter data	byte	4
Need for configuration data	byte	4

Error messages to the higher-level control or computer system

Type		R-IB IL AO 1/SF(/CN)-PAC
Error message		Upon failure or undershooting of the logic voltage UL: Peripheral error message to the bus coupler

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL AO 1/SF(/CN)-PAC
Test distance		Test voltage
7.5 V supply (bus logic), 24 V supply UANA/peripherals		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic), 24 V supply UANA/function earth		500 V AC, 50 Hz, 1 min.
24 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.

Mechanical tests

Type		R-IB IL AO 1/SF(/CN)-PAC
Shock 1)		15 g, 11 ms; 25 g, 6 ms; half sinusoidal shock pulse, 3 shocks per spatial direction

1)	Acc. to EN 60068-2-27/IEC 60068-2-27Deviation compared to DOK-CONTRL-ILSYSINS***-AW..-DE-P

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-IB IL AO 1/SF(/CN)-PAC
A	mm	24.4
B	mm	136.8
C	mm	71.5
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
