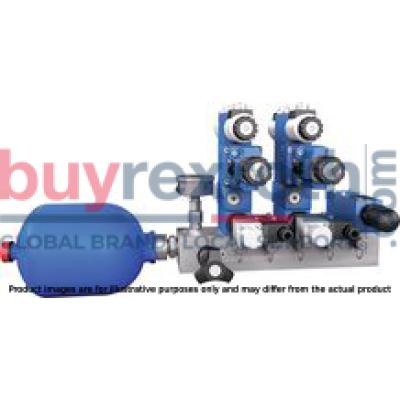

MULTISTATION MANI. 4HSR06M-40/01D PHOSP&

Manufacturer: Bosch Rexroth

Material #: R900731952

Model : MULTISTATION MANI. 4HSR06M-40/01D PHOSP&

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth MULTISTATION MANI. 4HSR06M-40/01D PHOSP& (R900731952) is a sophisticated manifold designed for creating highly compact hydraulic control systems. It serves as the foundational element for ready-for-connection controls in a vertical stacking configuration, allowing for the efficient assembly of vertically stackable sandwich plate valves along with on-off and proportional servo valves. The design incorporates a common pump and tank port (P and T), with the pump line accessible from both front sides of the manifold. Each station of this manifold comes equipped with separate actuator ports A and B, as well as measuring ports MA and MB, which are strategically located at the bottom side of the plate for easy access. This facilitates precise control and monitoring of hydraulic systems. The manifolds are prepped to accept a pressure relief valve type DBD and can be connected to a pressure gauge type ABZMM within channel P, ensuring that system pressures can be effectively regulated and monitored. The MULTISTATION MANI. 4HSR06M-40/01D PHOSP& is also designed to support the mounting of NG sandwich plates and valves, enhancing its versatility for various hydraulic applications. With its robust construction, it can withstand a maximum operating pressure specified by Bosch Rexroth standards, ensuring reliable performance across multiple stations. This manifold is an essential component for engineers looking to build or maintain efficient, high-performance hydraulic systems with space-saving designs and comprehensive control features.

$680.00 USD

More are expected on September 9, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as September 9, 2024 when ordered in

Base element for ready-for-connection controls in vertical stacking design Compact hydraulic controls Common pump and tank line Separate actuator ports of the stations Measuring ports in the actuator lines Mounting of NG6 sandwich plates and valves Pressure relief valve type DBD in pressure line P Connection possibility of a pressure gauge in pressure line P

Manifolds are the base element for ready for connection controls in vertical stacking design. On each station, highly compact hydraulic controls can be build using vertically stackable sandwich plate valves in connection with on/off and proportional servo valves. All stations have a common pump and tank port (P2 and T2). The pump line is lead out at both front sides of the manifold. Every station is equipped with separate actuator ports "A" and "B” and measuring ports “MA” and “MB”. The actuator ports are located at the bottom side of the plate. The manifolds are prepared for the installation of a pressure relief valve type DBD 6 and a pressure gauge type ABZMM in channel P.

	01	02	03	04		05		06	07	08
Manifold		HSR	06	M	‒	40	/	01	D

Number of ready-for-connection controls in vertical stacking design
01	1 Control	1
	2 controls	2
	3 Controls	3
	4 controls	4
	5 controls	5
	6 controls	6
	7 controls	7
	8 controls	8
02	Manifold	HSR
Size
03	Size 6	06
Measuring ports
04	With measuring ports in the actuator ports A and B	M
Component series
05	Manifold with installation possibility for a pressure relief valve type DBD 6 (with NG06) and attachment possibility for a pressure gauge type ABZMM in pressure channel P	40
Connection thread
06	Pipe thread according to ISO 228 Part 1	01
Position of actuator ports
07	At the bottom	D
Coating
08	Galvanic coating DIN 50979	FE//ZN8//CN/T0
08	Phosphate coating according to DIN EN 12476	PHOSPHATED 1)

1)	Manganese or zinc phosphate coating

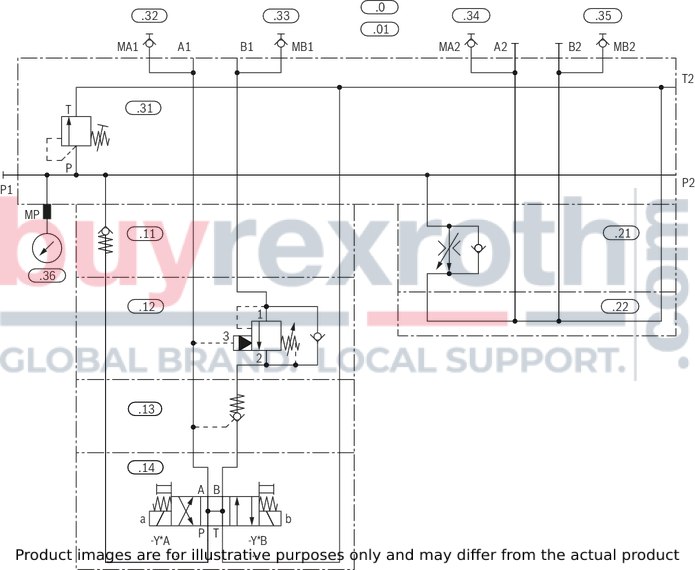

Required ordering code of a completely mounted manifold

Example:

2-fold manifold

Position	Quantity	Device designation	Type designation	Material number
.0	1		2HSR06MD4X...C736A/G24N9K4M011)	1)
.01	1	Manifold	2HSR06M-40/01D PHOSPHATED	R900731949
.11	1	Check valve	Z1S 6 P15-4X/N	R901219725
.12	1	Sandwich plate	HSZ 06 A431-1X/LJ4M00	R900971827
.13	1	Check valve	Z2S 6B1-6X/	R900347501
.14	1	Directional spool valve	4WE 6 H73-6X/EG24N9K4/A12	R900906660
	4	Stud screw	DIN939-M5X180-10.9	R900028125
	4	Round nut	ZN10035-M5-ST	R913020308
.21	1	Flow control valve	Z2FRM 6 TB2-2X/6QRV	R900910912
.22	1	Cover plate	HSA 06 A005-4X/M00	R901092289
	4	Hexagon socket head cap screw	ISO4762-M5X80-10.9-F&	R913000070
.31	1	Pressure relief valve	DBDS 6 K1X/315P220	R900773948
.32	1	Measuring coupling	MCS20-SDS-E-G1/4-ST3N00Z-M	R900009090
.33	1	Measuring coupling	MCS20-SDS-E-G1/4-ST3N00Z-M	R900009090
.34	1	Measuring coupling	MCS20-SDS-E-G1/4-ST3N00Z-M	R900009090
.35	1	Measuring coupling	MCS20-SDS-E-G1/4-ST3N00Z-M	R900009090
.36	1	Pressure gauge	ABZMM 63- 400BAR/MPA-R/B-G	R900022459
	1	Assembly kit	AB-G1/4-G-G1/4-NBR	R901126946
	2	Plug screw	ZN10001-G3/8A-N-ST	R913011602
			For port A2, B2:
	1	Plug screw	ZN1001-G1/2A-N-ST	R913011603
			For port P1:
	1	Name plate	RNI-17620-001-REXROTH	R900002783

1)	Material number and short designation of the type are defined by Rexroth.

Size		6
Stations		from 1 ... 8
Material		GGG40
Surface coating		Galvanic coating according to DIN 50979 (FE//ZN8//CN//T0) Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants) (FE//ZNPH/R/5/T4 or FE//MNPH/R/5/T4)
Operating pressure max. 1)	bar	315
Hydraulic fluid		see table below
Fixing holes		4 x M8 front threads for vertical attachment, 2 through holes ø9 for front attachment

1)	Manifold without valve fitting

Hydraulic fluid		Classification	Standards	Data sheet
Mineral oil		Mineral oil HLP	DIN 51524	90220
Bio-degradable	Insoluble in water	Triglycerides (rape seed oil) HETG	ISO 15380	90221
	Insoluble in water	Synthetic esters HEES	ISO 15380
	Soluble in water	Polyglycols HEPG	ISO 15380
Flame-resistant	Water-free	Organic esters HFDU, phosphoric acid esters HFDR	ISO 12922	90222
Flame-resistant	Containing water	Emulsions HFA-E, aqueous solution HFC	ISO 12922	90223

Important information on hydraulic fluids:

For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. Some hydraulic fluids (HFC, HFD ...) may attack and destroy galvanized surfaces. Phosphatized plates (zinc phosphate coating, if applicable) are therefore not suitable. The zinc content of plates with galvanized insides, however, is very low. After a flushing procedure with subsequent filter exchange, the zinc is washed out. Special caution is required regarding leaking hydraulic fluid, especially during maintenance and disassembly of the manifold.

Notice:

For the installation, commissioning and maintenance of oil hydraulic systems, please observe data sheet 07900.

For applications outside these parameters, please consult us!

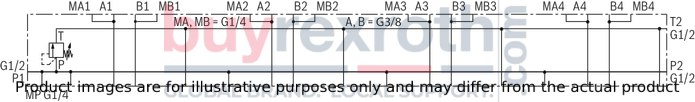

Manifolds with 4 stations

Manifold 4HSR06M-40/01D

Notice:

The pressure relief valves are not included in the scope of delivery.

Check valve

Z1S 6

Check valve

Z1S 6

Size 6 Component series 4X Maximum operating pressure 350 bar Maximum flow 40 l/min

Data sheet

Operating Instructions

Configurator / CAD

Spare parts & repair

Check valves, pilot operated

Z2S 6

Check valves, pilot operated

Z2S 6

Size 6 Component series 6X Maximum operating pressure 315 bar Maximum flow 60 l/min

Data sheet

Operating Instructions

Configurator / CAD

Spare parts & repair

2/2, 3/2 and 4/2 directional seat valve with solenoid actuation

M-.SED6

2/2, 3/2 and 4/2 directional seat valve with solenoid actuation

M-.SED6

Size 6 Component series 1X Maximum operating pressure 350 bar Maximum flow 25 l/min

Data sheet

Operating Instructions

Configurator / CAD

Spare parts & repair

Directional poppet valves, directly operated, with solenoid actuation

M-.SEW 6

Directional poppet valves, directly operated, with solenoid actuation

M-.SEW 6

Size 6 Component series 3X Maximum operating pressure 420 / 630 bar Maximum flow 25 l/min

Data sheet

Operating Instructions

Configurator / CAD

Spare parts & repair

Directional spool valves, direct operated, with solenoid actuation

WE 6...E

Directional spool valves, direct operated, with solenoid actuation

WE 6...E

Size 6 Component series 6X Maximum operating pressure 350 bar Maximum flow (DC) 80 l/min Maximum flow (AC) 60 l/min

Data sheet

Configurator / CAD

Spare parts & repair

4/3, 4/2 and 3/2 directional valve with fluidic actuation

WH 6

4/3, 4/2 and 3/2 directional valve with fluidic actuation

WH 6

Size 6 Component series 5X Maximum operating pressure 315 bar Maximum flow 60 l/min

Data sheet

Configurator / CAD

Spare parts & repair

4/3, 4/2 and 3/2 directional valve with fluidic actuation

WP 6

4/3, 4/2 and 3/2 directional valve with fluidic actuation

WP 6

Size 6 Component series 6X Maximum operating pressure 315 bar Maximum flow 60 l/min

Data sheet

Configurator / CAD

Spare parts & repair

Directional spool valves, direct operated, with mechanical or manual actuation

WMD 6

Directional spool valves, direct operated, with mechanical or manual actuation

WMD 6

Size 6 Component series 5X Maximum operating pressure 315 bar Maximum flow 60 l/min

Data sheet

Configurator / CAD

Spare parts & repair

Directional spool valves, direct operated, with mechanical or manual actuation

WMDA 6

Directional spool valves, direct operated, with mechanical or manual actuation

WMDA 6

Size 6 Component series 5X Maximum operating pressure 315 bar Maximum flow 60 l/min

Data sheet

Configurator / CAD

Spare parts & repair

Directional spool valves, direct operated, with mechanical or manual actuation

WMM 6

Directional spool valves, direct operated, with mechanical or manual actuation

WMM 6

Size 6 Component series 5X Maximum operating pressure 315 bar Maximum flow 60 l/min

Data sheet

Configurator / CAD

Spare parts & repair

Directional spool valves, direct operated, with mechanical or manual actuation

WMR 6

Directional spool valves, direct operated, with mechanical or manual actuation

WMR 6

Size 6 Component series 5X Maximum operating pressure 315 bar Maximum flow 60 l/min

Data sheet

Configurator / CAD

Spare parts & repair

Directional spool valves, direct operated, with mechanical or manual actuation

WMRZ 6

Directional spool valves, direct operated, with mechanical or manual actuation

WMRZ 6

Size 6 Component series 6X Maximum operating pressure 315 bar Maximum flow 60 l/min

Data sheet

Spare parts & repair

Directional spool valves, direct operated, with mechanical or manual actuation

WMU 6

Directional spool valves, direct operated, with mechanical or manual actuation

WMU 6

Size 6 Component series 5X Maximum operating pressure 315 bar Maximum flow 60 l/min

Data sheet

Configurator / CAD

Spare parts & repair

Pressure relief valve, direct controlled

DBD

Pressure relief valve, direct controlled

DBD

Size 6 … 30 Component series 1X Maximum operating pressure 630 bar

Data sheet

Operating instructions

Configurator / CAD

Spare parts & repair

Pressure relief valve, pilot controlled

ZDB 6, Z2DB 6

Pressure relief valve, pilot controlled

ZDB 6, Z2DB 6

Size 6 Component series 4X Maximum operating pressure 315 bar Maximum flow 60 l/min

Data sheet

Configurator / CAD

Spare parts & repair

Pressure reducing valve, direct operated

ZDR 6 D

Pressure reducing valve, direct operated

ZDR 6 D

Size 6 Component series 4X Maximum operating pressure 350 bar Maximum flow 50 l/min

Data sheet

Configurator / CAD

Spare parts & repair

Twin throttle check valve

Z2FS 6

Twin throttle check valve

Z2FS 6

Size 6 Component series 4X Maximum operating pressure 315 bar Maximum flow 80 l/min

Data sheet

Configurator / CAD

Spare parts & repair

4/2 and 4/3 proportional directional valves, direct operated, without electrical position feedback, without integrated electronics (OBE)

4WRA

4/2 and 4/3 proportional directional valves, direct operated, without electrical position feedback, without integrated electronics (OBE)

4WRA

Size 6, 10 Component series 2X Maximum operating pressure 315 bar Maximum flow 75 l/min

Data sheet

Environmental compatibility statement

Configurator / CAD

Spare parts & repair

4/2 and 4/3 proportional directional valves, direct operated, without electrical position feedback, with integrated electronics (OBE)

4WRAE

4/2 and 4/3 proportional directional valves, direct operated, without electrical position feedback, with integrated electronics (OBE)

4WRAE

Size 6, 10 Component series 2X Maximum operating pressure 315 bar Maximum flow 75 l/min

Data sheet

Environmental compatibility statement

Configurator / CAD

Spare parts & repair

4/2 and 4/3 proportional directional valves, direct operated, wit electrical position feedback, without integrated electronics (OBE)

4WRE

4/2 and 4/3 proportional directional valves, direct operated, wit electrical position feedback, without integrated electronics (OBE)

4WRE

Size 6 Component series 2X Maximum operating pressure 315 bar Maximum flow 80 l/min

Data sheet

Environmental compatibility statement

Configurator / CAD

Spare parts & repair

4/2 and 4/3 proportional directional valves, direct operated, wit electrical position feedback, with integrated electronics (OBE)

4WREE

4/2 and 4/3 proportional directional valves, direct operated, wit electrical position feedback, with integrated electronics (OBE)

4WREE

Size 6, 10 Component series 2X Maximum operating pressure 315 bar Maximum flow 180 l/min

Data sheet

Environmental compatibility statement

Configurator / CAD

Spare parts & repair

Cover plates

HSA

Cover plates

HSA

Size 6, 4, 5, 10, 16, 20, 22, 30, 32, 35 Maximum operating pressure 315 bar

Data sheet

Spare parts & repair

Adapter plates

HSE

Adapter plates

HSE

Size 4 … 32 Maximum operating pressure 630 bar, 315 bar

Data sheet

Spare parts & repair

Sandwich plates

HSZ 06

Sandwich plates

HSZ 06

Size 6 Maximum operating pressure 315 bar

Data sheet

Spare parts & repair

Hydro-electric piston type pressure switches

HED 8 -2X

Hydro-electric piston type pressure switches

HED 8 -2X

Component series 2X Maximum operating pressure 630bar Pressure ratings 50, 100, 200, 350 and 630 bar UL recognized component, CCC-certified

Data sheet

Configurator / CAD

Spare parts & repair

Pressure gauge with fluid filling

ABZMM

Pressure gauge with fluid filling

ABZMM

Data sheet

Spare parts & repair

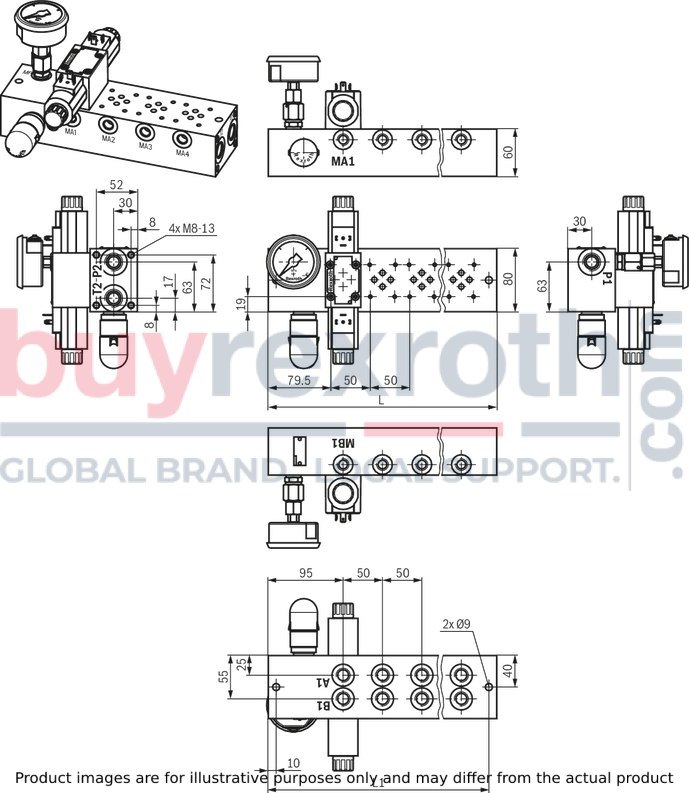

Manifold 1-8HSR06M-40/01

Dimensions in mm

Number of stations	L	L1
Number of stations	mm	mm
1	140	130
2	190	180
3	240	230
4	290	280
5	340	330
6	390	380
7	440	430
8	490	480

Pressure reducing valve in connection with check valve

The pressure reducing valve type ZDR .. DA (pressure reduction in channel A) must always be installed between the directional valve and the check valve type Z2S... This ensures that the check valve can block in a leak-free manner.

Pressure relief valve in connection with check valve

Leak-free blocking of the actuator is not possible if a pressure relief valve type ZDB../Z2DB.. is effective in channel A and/or B and a check valve is installed.

Pressure switch in connection with throttle check valve

Supply control

The pressure switch type HED 8 OH, effective in channel A and/or B, is installed between the subplate and the throttle check valve type Z2FS.

Discharge control

The pressure switch type HED 8 OH, effective in channel A and/or B, is installed between the directional valve and the throttle check valve type Z2FS.

Notice:

The illustrated sections of circuit diagrams are examples. The project planning information must also be observed for valves with a similar function.

Mounting screws dependent on the valve fitting

Stud screw M5 DIN 939, property class 10.9

Dimensions in mm

1)	L = length of the stud screws according to DIN 939

Round nut ZN10035-M5-ST, material no.: R913020308

Dimensions in mm

Stud screw M6 DIN 939, property class 10.9

Dimensions in mm

1)	L = length of the stud screws according to DIN 939

Round nut ZN10035-M6-ST, material no.: R913020310

Dimensions in mm

Notice:

The length of the mounting screws of the attached vertical stackings have to be calculated individually. Up to 115 mm, hexagon socket head cap screw according to ISO 4762 with stability 10.9 may be used. From 120 mm, stud screws according to DIN 939 or threaded bolts with stability 10.9 and corresponding round nuts are to be used. For the tightening torques, please refer to the data sheets of the valves used.
