MULTISTATION MANI. 4HSR06M-40/01D FE//Z&

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

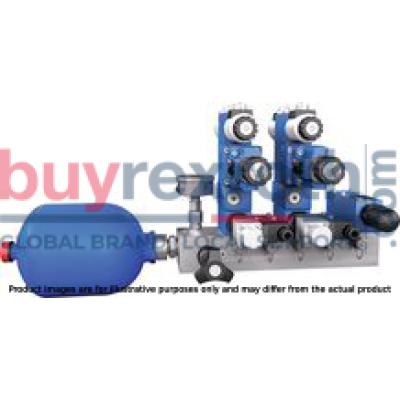

The Bosch Rexroth MULTISTATION MANI. 4HSR06M-40/01D FE//Z& (R901464548) is a sophisticated hydraulic manifold designed for compact and efficient control of fluid power systems. As the base element for ready-for-connection controls in a vertical stacking design, this manifold facilitates the construction of highly compact hydraulic controls by allowing vertically stackable sandwich plate valves to be used in conjunction with on/off and proportional servo valves. Each of the manifold's stations includes separate actuator ports A and B, as well as measuring ports MA and MB, which are all conveniently located at the bottom side of the plate for ease of access. The common pump and tank ports P and T serve all stations, ensuring streamlined flow paths within hydraulic systems. The pump line is also accessible from both front sides of the manifold, providing versatility in system configuration. Additionally, this model is equipped to support the installation of a pressure relief valve type DBD and allows for the connection of a pressure gauge type ABZMM in channel P, enhancing system safety and monitoring capabilities. With its ability to mount NG sandwich plates and valves, this Bosch Rexroth manifold is an integral component for creating tightly integrated hydraulic control assemblies that require minimal space while delivering reliable performance. The design considerations ensure that maintenance operations can be carried out with ease due to the accessible layout of ports and measurement points. This makes it an essential part for applications requiring precise fluid power management in a compact form factor.
