DR10DP3-4X/150YM

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

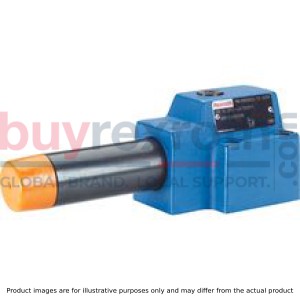

The Bosch Rexroth DR10DP3-4X/150YM (R900500041) is a high-performance, direct operated pressure reducing valve designed for subplate mounting with a way version to ensure the limitation of system pressure within hydraulic systems. This model maintains secondary circuit pressure through an adjustable mechanism, ensuring consistent performance and reliability. The valve's initial open position allows for unrestricted flow from channel B to channel A, while the secondary pressure is set by adjusting the compression spring. Equipped with an internal signal and pilot oil supply via the control line from channel A, the DR10DP3-4X/150YM ensures that any external force affecting the actuator is compensated by moving the control spool against the spring, thereby connecting channel A to channel TY and maintaining a constant pressure level. The excess hydraulic fluid is then diverted into the tank to prevent undue pressure increase. This model also features external leakage oil discharge through channel TY from its spring chamber. Additionally, it supports an optional check valve for free flow back from channel A to B, enhancing its versatility in various applications. Monitoring and maintenance are made easy with a pressure gauge connection that allows for secondary pressure checks. The Bosch Rexroth DR10DP3-4X/150YM valve offers multiple adjustment types including a rotary knob, threaded pin with hexagon and protective cap, lockable rotary knob with scale, or rotary knob with scale for user convenience. It complies with DIN Form D and ISO porting patterns for ease of integration into existing systems. With its robust design, this valve can withstand maximum operating pressures (bar) and handle maximum flow rates (l/min), making it suitable for demanding applications where precise pressure regulation is essential. Whether used in industrial machinery or mobile equipment, this model ensures efficient operation and enhances system safety by maintaining desired pressure levels consistently.
