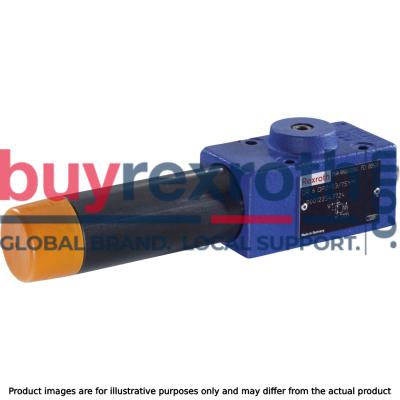

PRESSURE REDUCING VALVE DR6DP2-5X/210YM/12
Manufacturer: Bosch Rexroth
Material #: R900434477
Model : DR6DP2-5X/210YM/12
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DR6DP2-5X/210YM/12 (R900434477) is a high-performance industrial hydraulic valve designed for reliable pressure reduction from the supply pressure to a set value. This direct-actuated spool valve is part of the DR series, offering precise control for hydraulic systems. It features a pressure adjustment range up to 210 bar and an adjustable spindle with an external hexagon and protective cap, which allows for easy setting of the desired pressure.
The valve's design includes a pilot oil return, external measuring port with SAE thread, and it operates with a maximum pressure capability. The model supports a maximum flow rate and is intended for subplate mounting, following the NFPA T3.5.1 R2 D03 and ISO 6264 patterns. The DR6DP2-5X/210YM/12 also provides flexibility in actuation types, including mechanical actuation through various adjustment types such as rotary knobs or threaded pins with hexagons.
This Bosch Rexroth valve comes equipped with NBR seals, making it compatible with hydraulic fluids like HL, HLP, HLPD, HVLP, HVLPD, and HFC. It has multiple ports for connectivity and features an external leakage oil discharge via channel TY to ensure system cleanliness.
The unit's robust construction includes an optional check valve for free flow back from channel A to channel P and a pressure gauge connection for monitoring secondary pressure levels effectively. With its size specification and weight considerations accounted for during design, the DR6DP2-5X/210YM/12 ensures consistent performance in various hydraulic applications requiring precise pressure control.
$702.00 USD
Availability: 5 In Stock
Available for immediate shipmentQty: Delivered as early as December 27, 2024 when ordered in
This product is eligible for factory repair.
Size 6, P → A, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable pressure reduction of the supply pressure to setting value.
Unpacked Weight: 1.56 kg
For subplate mounting Porting pattern according to DIN 24340 form A Porting pattern according to ISO 4401-03-02-0-05 (with locating hole) 4 optional adjustment types:• Rotary knob• Threaded pin with hexagon and protective cap• Lockable rotary knob with scale• Rotary knob with scale 5 pressure ratings Check valve, optional
The valve type DR 6 DP is a direct operated pressure reducing valve in 3-way version, i. e. with pressure limitation of the secondary circuit.
It is used to limit a system pressure. The secondary pressure is set via the adjustment type (4)
The valve is open in initial position. Hydraulic fluid can flow from channel P to channel A without restrictions. The pressure in channel A is simultaneously applied via the control line (6) at the piston area opposite the compression spring (3). If the pressure in channel A exceeds the value set at the compression spring (3), the control spool (2) moves to control position and keeps the set pressure in channel A at a constant level.
Signal and pilot oil come internally via the control line (6) from channel A.
If the pressure in channel A increases further due to an external force effect at the actuator, it pushes the control spool (2) even further against the compression spring (3).
In this way, channel A is connected to channel T(Y) via the control edge (8) at the control spool (2). So much hydraulic fluid is discharged into the tank that the pressure can only increase slightly.
The leakage oil discharge from the spring chamber (7) is always effected externally via channel T(Y).
For the free flow back from channel A to channel P, a check valve (5) can optionally be installed.
A pressure gauge connection (1) allows for the control of the secondary pressure.
Type DR 6 DP1-5X/.Y…
(measured with HLP46, ϑOil = 40 ±5 °C)
pA-qV characteristic curves
pA-qV characteristic curves
Notice!
The curve development is maintained if the pressure is set lower according to the pressure rating.
The characteristic curves apply to the pressure at the valve output p = 0 bar across the entire flow range.
Δp-qV characteristic curves
Δp-qV characteristic curves
|
1 |
P to A (minimum pressure differential) |
|
2 |
A to T(Y) (minimum pressure differential) |
|
3 |
Δp only via check valve |
|
4 |
Δp via check valve and fully opened control cross-section |
Version "M"
Without check valve
Version "no code"
With check valve
Dimensions in mm
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Space required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24 |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, T (Y) |
|
11 |
Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6 |
|
12 |
Without check valve |
|
13 |
With check valve |
|
14 |
Port B without function |
|
15 |
Porting pattern according toISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, separate order) |
Subplates (separate order)
(without locating hole)
G 341/01 (G1/4)
G 342/01 (G3/8)
G 502/01 (G1/2)
(with locating hole)
G 341/60 (G1/4)
G 342/60 (G3/8)
G 502/60 (G1/2)
Valve mounting screws (separate order)
4 metric hexagon socket head cap screws
ISO 4762 - M5 x 50 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
tightening torque MA = 7 Nm] ± 10% ,
material no. R913000064
4 hexagon socket head cap screws UNC
10-24 UNC x 2” (on request)
