BALL RUNNER BLOCK CARBON STEEL KWC-055-FLS-C1-U-2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

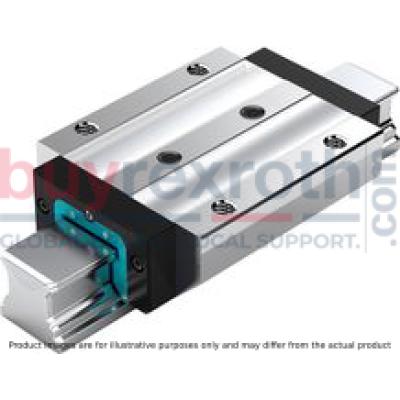

The Bosch Rexroth B.RUNNER BLOCK CS KWC-055-FLS-C1-U-2 (R165351910) is a highly precise ball runner block designed for heavy-duty machine construction and applications requiring extreme load-bearing capacity and rigidity. This runner block is part of the Ball Rail Systems product group, which ensures smooth, quiet operation and minimal variation in elastic deflection due to its optimized entry-zone geometry and a high number of balls. The B.RUNNER BLOCK CS KWC-055-FLS-C1-U-2 features a low preload class C and an ultra precision accuracy class UP, indicating it is manufactured for applications demanding the highest levels of precision. Constructed from unalloyed steel CS, the runner block body is robust and durable. It comes without a ball chain, initial lubrication, attachment elements on either front edge, or angular lube nipples, which are instead loosely attached. This model has been preserved for longevity but does not include initial lubrication, allowing users to apply their preferred type of lubricant according to their specific application needs. The product boasts an overall length of . mm and offers improved rigidity under liftoff and side loading conditions due to additional mounting screw holes at the center. It also has high torque load capacity. The innovative channel design within the runner block facilitates minimum lubrication quantities while ensuring efficient operation. Attachments can be mounted from both above and below the runner block for added versatility. Furthermore, this Bosch Rexroth runner block is interchangeable with all SNS Ball Guide Rails, providing limitless combination possibilities with all ball guide rail versions for tailored linear motion solutions. The unit's design allows it to self-align to compensate for misalignments during installation or operation without sacrificing performance. In summary, the Bosch Rexroth B.RUNNER BLOCK CS KWC-055-FLS-C1-U-2 (R165351910) stands out as an essential component for sophisticated linear motion systems where precision, durability, and flexibility are paramount.
