CURVE 320+ HOR STS 90° R500

Manufacturer: Bosch Rexroth

Material #: 3842547133

Model : CURVE 320+ HOR STS 90

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 320+ HOR STS 90° R500 (3842547133) is a state-of-the-art roller curve designed for seamless integration into conveyor systems. This horizontal STS VFplus roller curve boasts patented roller elements that ensure low-friction and quiet changes in chain direction. Its easy-to-clean design is particularly beneficial for industries where hygiene is paramount, as it features ball bearings made from non-rusting steel with seals on both sides and FDA-compliant grease filling. The contact surfaces with the chain are also made from FDA-compliant materials, underscoring its suitability for environments with stringent cleanliness standards. The CURVE 320+ HOR STS 90° R500 has a deflection angle that facilitates effective sliding rail lengths and actual chain lengths, which can be provided upon request from Bosch Rexroth's modification department. With a weight specification provided in the detailed product information, this component includes all necessary fastening materials for mounting to the STS section profile. It comes fully assembled, streamlining the installation process. This roller curve's profile is constructed from non-rusting stainless steel, while the roller carrier is made of PA (polyamide). The ball bearings are also crafted from non-rusting steel that meets FDA requirements, ensuring durability and compliance with health regulations. The connectors and rollers are similarly constructed using high-quality materials like non-rusting steel and PA for longevity and performance. Designed to accommodate all suitable chain types, this model offers versatility across various conveyor setups. Its deflection radius of R500 allows it to fit into systems requiring specific curvature dimensions. Users will benefit from its ability to support longer conveyor sections due to the reduced friction on chains, thus enhancing overall operational efficiency by increasing the service life of chains and reducing system costs.

$1,812.73 USD

More are expected on November 26, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 26, 2024 when ordered in

CURVE 320+ HOR STS 90° R500

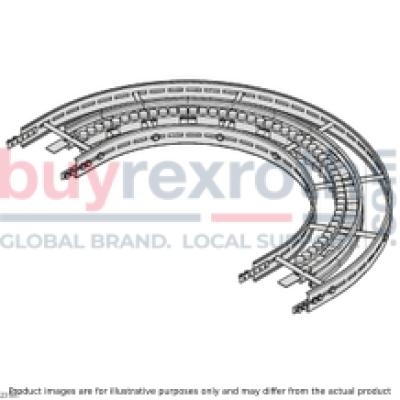

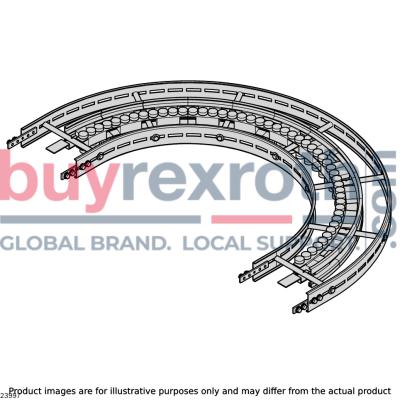

Roller curve horizontal STS VFplus 320 90°

Unpacked Weight: 7.67 kg

Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Plastic-coated roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Deflection radius: R500 Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	90
Productgroup ID	2
Effective sliding rail length	5x 0,98
Actual chain length	2x 0,98
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	7.67
Scope of delivery	Incl. fastening material for mounting to the STS section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation

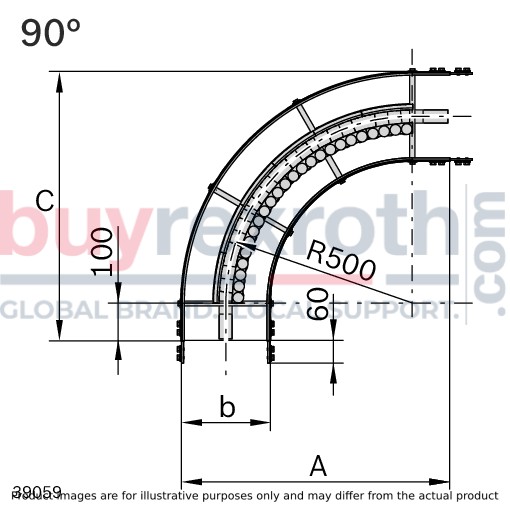

Size [b]	320
Dimension [A]	760
Material information	Profile: Non-rusting steel 1.4301,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Non-rusting steel 1.4301,Rollers: PA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
