CURVE 240+ HOR STS 180° R500

Manufacturer: Bosch Rexroth

Material #: 3842547130

Model : CURVE 240+ HOR STS 180

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 240+ HOR STS 180° R5 (3842547130) is a high-quality roller curve designed for horizontal changes in the direction of conveyor chains within various applications. This component features patented roller elements that ensure low-friction and quieter chain direction changes, enhancing operational efficiency. The easy-to-clean design is particularly beneficial in environments where hygiene is paramount. It incorporates ball bearings constructed from non-rusting steel, sealed on both sides, and filled with FDA-compliant grease, ensuring durability and compliance with stringent regulations. The CURVE 240+ HOR STS 180° R5 is built with surfaces that come into contact with the chain made from FDA-compliant materials, making it suitable for industries where food safety standards are critical. The deflection angle facilitates smooth transitions in conveyor systems, while the effective sliding rail length and actual chain length can be tailored to meet specific requirements. Customers can also request additional versions through Bosch Rexroth's modification department. This roller curve's profile is made from non-rusting steel, ensuring longevity and resistance to corrosion. The roller carrier is constructed from PA (polyamide), offering strength and wear resistance. The ball bearings are also made of non-rusting steel FDA-grade material, while the connectors and rollers are crafted from stainless steel and PA respectively. The product has a deflection radius of R5 and is compatible with all suitable chain types. It comes fully assembled with all necessary fastening materials for mounting to the STS section profile included in the scope of delivery. The CURVE 240+ HOR STS 180° R5 enables longer conveyor sections due to its plastic-coated roller elements with ball bearings, contributing to an increased service life of the conveyor chain and reduced system costs overall.

$2,355.13 USD

More are expected on December 30, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 30, 2024 when ordered in

CURVE 240+ HOR STS 180° R500

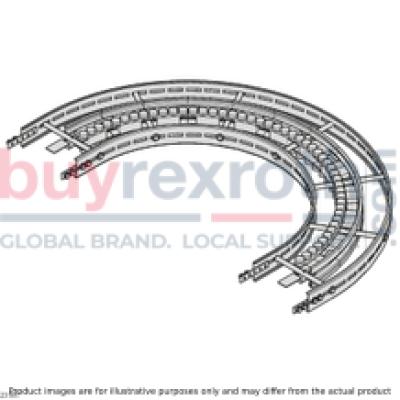

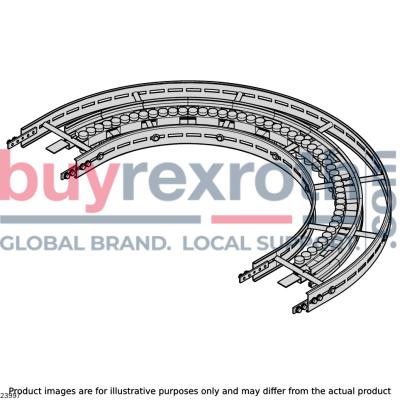

Roller curve horizontal STS VFplus 240 180°

Unpacked Weight: 12.66 kg

Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Plastic-coated roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Deflection radius: R500 Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	5x 1,77
Actual chain length	2x 1,77
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	12.66
Scope of delivery	Incl. fastening material for mounting to the STS section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	240

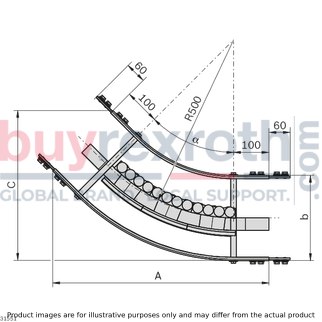

Dimension [A]	1240
Material information	Profile: Non-rusting steel 1.4301,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Non-rusting steel 1.4301,Rollers: PA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
