CURVE 160+ HOR STS 45°R500

Manufacturer: Bosch Rexroth

Material #: 3842547124

Model : CURVE 160+ HOR STS 45

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 160+ HOR STS 45°R500 (3842547124) is a high-quality roller curve designed for seamless horizontal changes in chain direction within conveyor systems. This innovative component features patented roller elements that significantly reduce friction and noise during operation, enhancing the overall efficiency and longevity of the conveying process. The easy-to-clean design is particularly beneficial for industries that require strict hygiene standards, as it includes ball bearings made of non-rusting steel with seals on both sides and FDA-compliant grease filling. The CURVE 160+ HOR STS 45°R500 is constructed with surfaces that come into contact with the chain also made from FDA-compliant materials, ensuring safety and compliance in food-grade applications. With a deflection angle of 45 degrees and a deflection radius of R500, this roller curve can accommodate all suitable chain types and is compatible with open section profiles. Additionally, its effective sliding rail length and actual chain length are tailored to specific requirements. The robust profile is crafted from non-rusting steel, while the roller carrier utilizes durable PA material; connectors are also made from non-rusting steel to ensure stability and resistance to corrosion. The rollers themselves are fashioned from PA for smooth operation. This unit comes fully assembled, including fastening materials for mounting to the STS section profile, simplifying installation procedures. Overall, the Bosch Rexroth CURVE 160+ HOR STS 45°R500 promises to be a valuable addition to conveyor systems requiring reliable redirection of chains with minimal wear and tear on components—a testament to Bosch Rexroth’s commitment to innovation in motion and control technologies.

$1,183.76 USD

More are expected on December 31, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 31, 2024 when ordered in

CURVE 160+ HOR STS 45°R500

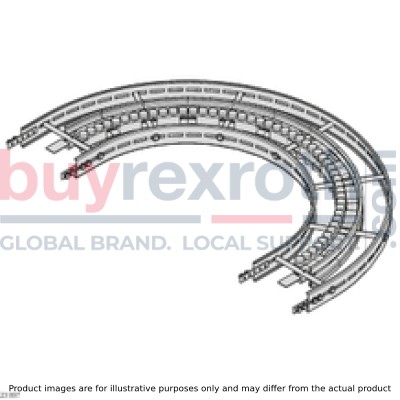

Roller curve horizontal STS VFplus 160 45°

Unpacked Weight: 3.98 kg

Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Plastic-coated roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Deflection radius: R500 Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

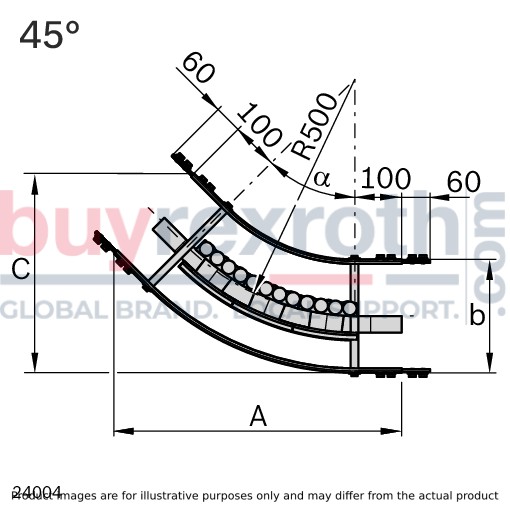

Deflection angle [α]	45
Productgroup ID	2
Effective sliding rail length	5x 0,59
Actual chain length	2x 0,59
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	3.98
Scope of delivery	Incl. fastening material for mounting to the STS section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	160
Dimension [A]	580.8
Material information	Profile: Non-rusting steel 1.4301,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Non-rusting steel 1.4301,Rollers: PA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
