CAM WHEEL 90+ STS 45°

Manufacturer: Bosch Rexroth

Material #: 3842547116

Model : CAM WHEEL 90+ STS 45

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL 90+ STS 45° (3842547116) is a high-quality curve wheel designed for use in various conveyor systems. This CAM WHEEL model is part of the STS VFplus series, known for its easy-to-clean design, which is crucial for applications requiring strict hygiene standards. The wheel features ball bearings made of non-rusting steel, complete with seals on both sides and FDA-compliant grease filling, ensuring durability and safe contact with food products. The surfaces of the CAM WHEEL that come into contact with the chain are made from FDA-compliant materials, eliminating any risk of contamination. The design avoids any interfering contours above the chain plate height, allowing for smooth operation without any hindrance to the movement of the conveyor chain. This versatility makes it suitable for both horizontal and vertical applications, particularly in wedge conveyors. With an effective sliding rail length and actual chain length specified by product group ID, this component can be used to create precise deflection angles within a conveyor system. While it comes standard with certain dimensions for deflection angles, other angles can be requested to meet specific requirements. The CAM WHEEL is compatible with all suitable chain types. Constructed with a housing made of non-rusting steel 1.4301 and a white chain wheel composed of PA material, it upholds a robust build quality. It has been designed to facilitate low-friction direction changes within very small radii, enhancing efficiency in conveyor operations. The Bosch Rexroth CAM WHEEL comes fully assembled and includes fastening material for mounting to STS section profiles. Additional versions and custom modifications are available upon request through Bosch Rexroth's modification department. With its comprehensive design and construction features, this curve wheel is an essential component for optimizing conveyor system performance while adhering to stringent health standards.

$759.72 USD

More are expected on February 10, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as February 10, 2025 when ordered in

CAM WHEEL 90+ STS 45°

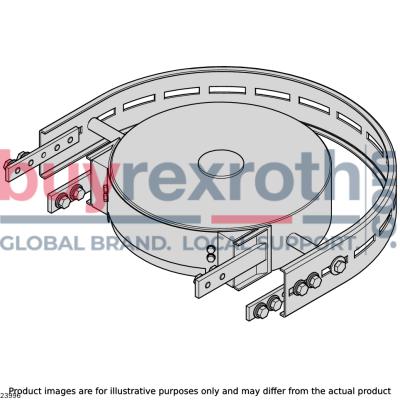

Curve wheel STS VFplus 90 45°

Unpacked Weight: 4.4 kg

Surfaces in contact with chain made of FDA-compliant materials No interfering contours above chain plate height Can be used horizontally and vertically (for wedge conveyors)

The curve wheel is used for the horizontal change in direction of the chain. It enables low-friction direction changes with very small radii.

Size: 65, 90, 120 For deflection angles, see table Other deflection angles on request Suitable chain types: all

Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials
No interfering contours above chain plate height
Can be used horizontally and vertically (for wedge conveyors)

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	45
Productgroup ID	2
Effective sliding rail length	2x 0,41
Actual chain length	2x 0,33
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	4.4
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Size [b]	90
Dimension [A]	210.5
Material information	Housing: Non-rusting steel 1.4301,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)

Curve wheel STS

Curve wheel STS VFplus 30°

Curve wheel STS VFplus 45°

Curve wheel AL VFplus 90°

Curve wheel STS VFplus 180°

b	α	A	B	C	R
mm	°	mm	mm	mm	mm
65	30	185.5	322.5	279.4	153
	45	185.5	322.5	301.9	153
	90	185.5	322.5	285.5	153
	180	185.5		287.5	153
90	30	210.5	347.5	291.9	165.5
	45	210.5	347.5	319.6	165.5
	90	210.5	347.5	310.5	165.5
	180	210.5		310.5	165.5
120	30	240.5	377.5	306.9	180.5
	45	240.5	377.5	340.8	180.5
	90	240.5	377.5	340.5	180.5
	180	240.5		340.5	180.5

Note: High-pressure cleaning of the ball bearings is not permitted.
