CAM WHEEL 65+ AL 30° ESD

Manufacturer: Bosch Rexroth

Material #: 3842553029

Model : CAM WHEEL 65+ AL 30

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

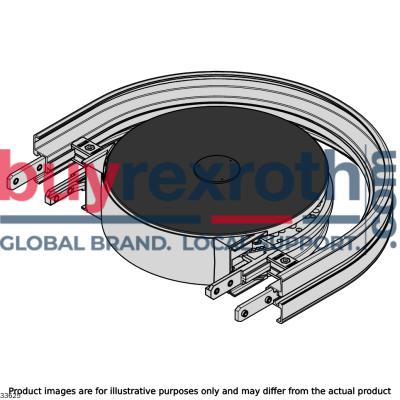

The Bosch Rexroth CAM WHEEL 65+ AL 30° ESD (3842553029) is a high-quality curve wheel designed for conveyor systems requiring horizontal direction changes. This component is specifically engineered to facilitate low-friction direction changes within very small radii, enhancing the efficiency and flexibility of material handling processes. The CAM WHEEL 65+ AL 30° ESD is notable for its electrostatic discharge (ESD) properties, making it suitable for sensitive environments where static build-up could pose a risk to electronic components or explosive materials. Constructed from durable diecast aluminum with a black PA ESD chain wheel and non-rusting steel ball bearings, the product ensures longevity and reliability in various applications. It comes fully assembled, including fastening material for easy mounting to the AL section profile. With no interfering contours above the chain plate height, this curve wheel maintains a streamlined profile within the conveyor system. The effective sliding rail length and actual chain length can be customized according to specific requirements, with additional versions available upon request through Bosch Rexroth's modification department. Designed to work seamlessly with ESD conveyor chains, this component is essential for circuit systems that do not use a conveyor chain return in their bottom run. In such cases, an appropriate cover must be utilized to ensure personal safety. Overall, the Bosch Rexroth CAM WHEEL 65+ AL 30° ESD offers a practical solution for implementing precise and safe direction changes in advanced conveyor setups while contributing to the protection of sensitive goods and work environments from electrostatic discharge.

$783.85 USD

Availability: 4 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as November 12, 2024 when ordered in

CAM WHEEL 65+ AL 30° ESD

Curve wheel AL ESD VFplus 65 30°

Unpacked Weight: 3.46 kg

No interfering contours above chain plate height

The curve wheel AL ESD provides a horizontal direction change for the conveyor chain. It enables low-friction direction changes with very small radii.

For attachment options, see the matrix

Size: 65, 90 See table for the deflection angles, more deflection angles available on request Suitable chain type: ESD conveyor chain For circuit systems without conveyor chain return in bottom run (using a curve wheel or connection drive), the appropriate cover must be used for personal safety reasons With conductive wheel

The curve wheel AL ESD provides a horizontal direction change for the conveyor chain
It enables low-friction direction changes with very small radii
No interfering contours above chain plate height

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	30
Productgroup ID	2
Effective sliding rail length	2x 0,34
Actual chain length	2x 0,28
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
ESD	yes
Weight	3.46
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Size [b]	65
Dimension [A]	185.5
Material information	Housing: Diecast aluminum,Chain wheel: PA ESD, black,Ball bearing: Non-rusting steel 1.4301/FDA

Combination matrix

		Straight			Curves		Drives			Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel ESD	Vertical curve	Head drive (STS)	Connection drive (STS)	Center drive (STS)**	Base unit (STS)	90° (STS)**
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel ESD	J	J	L2)	L2)
Curves	Vertical curve	J	J	L2)	L2)	L1)
Drives	Head drive (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N
	Connection drive (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N	N	N
Return Unit	Base unit (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	L2)	N	L2)	L2, 3)
Return Unit	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	L2)	L2)	N	N	L2)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
