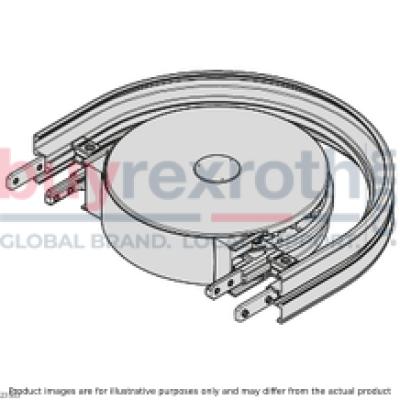

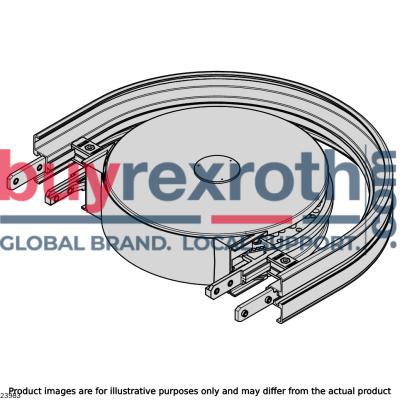

CAM WHEEL 90+ AL 180°

Manufacturer: Bosch Rexroth

Material #: 3842547055

Model : CAM WHEEL 90+ AL 180

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL 90+ AL 180° (3842547055) is a meticulously engineered component designed to facilitate the horizontal change in direction of conveyor chains with exceptional efficiency. This curve wheel boasts a deflection angle of 180 degrees and is optimized for use in both horizontal and vertical orientations, making it an ideal choice for wedge conveyors. Its construction features a die-cast aluminum housing, a white PA chain wheel, and ball bearings made from non-rusting steel that are sealed on both sides. The bearings are filled with FDA-compliant grease, ensuring safe contact with food products. The effective sliding rail length and actual chain length can be tailored to specific requirements, with additional versions available upon request through Bosch Rexroth's modification department. The surfaces that come into contact with the chain are also made from FDA-compliant materials, which minimizes contamination risks in sensitive applications. This CAM WHEEL is designed without any interfering contours above the chain plate height to ensure smooth operation and to prevent any potential snagging or disruption during use. For circuit systems that do not incorporate a chain return in the bottom run using a curve wheel or connection drive, it is recommended to use an appropriate cover for personal safety reasons. The product offers an extended service life and reduced downtimes thanks to its low-friction curve technology. It comes fully assembled, including all necessary fastening materials for mounting to the AL section profile. The inclusion of ball bearings ensures durable performance and supports the smooth redirection of conveyor chains across various industries where precise movement and reliability are paramount. Size specifications include dimensions A and B (not specified), ensuring compatibility with all suitable chain types for versatile application across different conveying systems. The Bosch Rexroth CAM WHEEL 90+ AL 180° (3842547055) represents a vital component in streamlining conveyor operations while adhering to stringent hygiene standards.

$597.17 USD

Availability: 1 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as December 24, 2024 when ordered in

CAM WHEEL 90+ AL 180°

Curve wheel AL VFplus 90 180°

Unpacked Weight: 4.8 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology Surfaces in contact with chain made of FDA-compliant material No interfering contours above chain plate height Can be used horizontally and vertically (for wedge conveyors)

The curve wheel is used for the horizontal change in direction of the chain. It enables low-friction direction changes with very small radii.

Size: 65, 90, 120 Deflection angles Suitable chain types: all For circuit systems without chain return in bottom run (using a curve wheel or connection drive), the appropriate cover must be used for personal safety reasons

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant material
No interfering contours above chain plate height
Can be used horizontally and vertically (for wedge conveyors)

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	2x 0,91
Actual chain length	2x 0,72
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	4.8
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Size [b]	90
Dimension [A]	210.5
Material information	Housing: Diecast aluminum,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA

	Material
Curve wheel AL VFplus 65 30°	Housing: diecast aluminum Chain wheel: PA; white Ball bearings: stainless steel/FDA
Curve wheel AL VFplus 65 45°
Curve wheel AL VFplus 65 90°
Curve wheel AL VFplus 65 180°
Curve wheel AL VFplus 90 30°
Curve wheel AL VFplus 90 45°
Curve wheel AL VFplus 90 90°
Curve wheel AL VFplus 90 180°
Curve wheel AL VFplus 120 30°
Curve wheel AL VFplus 120 45°
Curve wheel AL VFplus 120 90°
Curve wheel AL VFplus 120 180°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

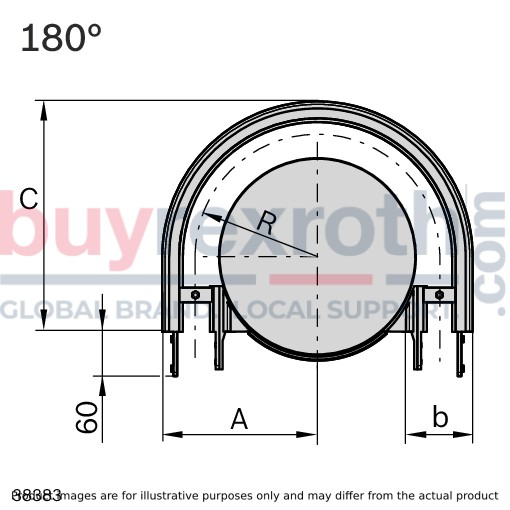

Curve wheel AL

b	α	A	B	C	R
mm	°	mm	mm	mm	mm
65	30	185.5	324.5	279.4	153
	45	185.5	324.5	301.9	153
	90	185.5	324.5	285.5	153
	180	185.5		285.5	153
90	30	210.5	349.5	291.9	165.5
	45	210.5	349.5	319.6	165.5
	90	210.5	349.5	310.5	165.5
	180	210.5		310.5	165.5
120	30	240.5	379.5	306.9	180.5
	45	240.5	379.5	340.8	180.5
	90	240.5	379.5	340.5	180.5
	180	240.5		340.5	180.5
