BASE UNIT 65+ AL CURVE WHEEL

Manufacturer: Bosch Rexroth

Material #: 3842547380

Model : BASE UNIT 65+ AL CURVE WHEEL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth BASE UNIT 65+ AL CURVE WHEEL (3842547380) is a versatile and essential component for modern conveyor systems, particularly suited for driving the conveyor chain in circuit systems with a top-running chain. This base unit can be easily transformed into a fully functional curve wheel drive when paired with the corresponding drive kit. It features an innovative drive concept that ensures smooth operation and is capable of handling several superimposed basic curve wheel units, making it ideal for alpine conveyors. The unit's housing is constructed from diecast aluminum, while the chain wheel is made of white PA material. The ball bearings are crafted from nonrusting steel and are sealed on both sides, containing FDA-compliant grease filling, ensuring durability and compliance with food industry standards. The unit's side elements come with slots designed to attach holders for lateral guides or similar accessories. This base unit has an effective sliding rail length and actual chain length that support various configurations. It boasts a permissible chain tensile force of up to N per level and can accommodate section lengths for closed circuits up to m. The maximum permissible torque stands at Nm, ensuring robust performance even in demanding applications. When multiple curve wheel base units are used in conjunction, it's important to distribute the motor torque evenly across individual levels. The conveying speed is set at vN m/min by default; however, when using drives with frequency converters (FU), the speed should be limited to m/min by a control system to ensure safety and longevity of the equipment. The BASE UNIT 65+ AL CURVE WHEEL comes unassembled but includes all necessary fastening materials for assembly. While some accessories like the connection kit alpine conveyor are recommended, others such as the drive kit curve wheel, assembly module, and slide rail are required for operation. Additional versions of this product can be requested through Bosch Rexroth's modification department. In summary, this base unit offers flexibility and performance for various conveying applications while maintaining low noise levels during operation. It is specifically designed to facilitate easy implementation of complex conveyor setups without compromising on efficiency or reliability.

$584.80 USD

More are expected on December 27, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 27, 2024 when ordered in

BASE UNIT 65+ AL CURVE WHEEL

Base unit KRA AL VFplus 65

Unpacked Weight: 5.6 kg

Side elements with slot to attach holders for lateral guides, or similar

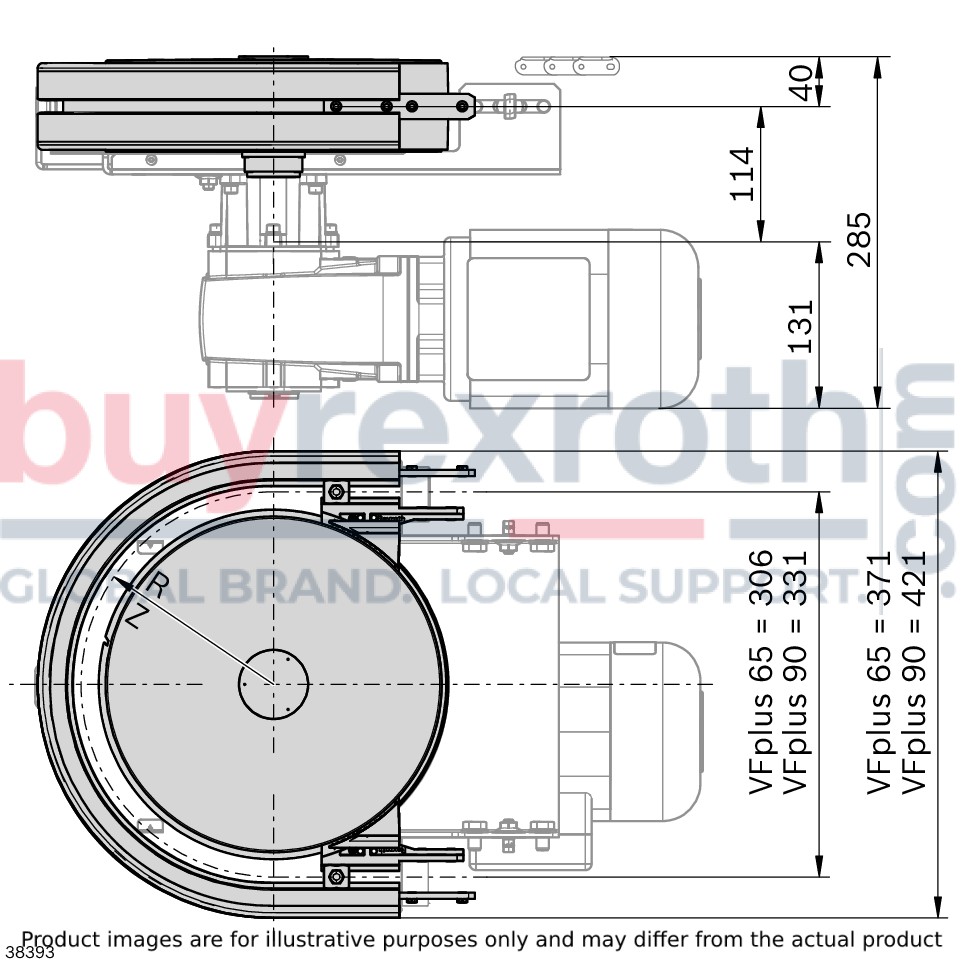

The curve wheel drive is used for driving the conveyor chain in circuit systems with a top-running chain. Combining the base unit curve wheel 180° AL with the appropriate drive kit quickly turns it into a curve wheel drive.

Size: 65 and 90 Suitable chain types: all Permissible chain tensile force: Fmax = 400 N per level, section length for closed circuits: L ≤ 10 m Permissible torque: Mmax = 60 Nm

When combining several curve wheel base units, the motor torque must be distributed across the individual levels

Conveying speed: vN = 4-21 m/min

For drives with frequency converters (FU), the speed is to be limited to a maximum of 21 m/min by a control system

Recommendation: no accumulation operation until 1000 mm after the curve wheel drive Can only be used with a closed profile

Innovative drive concept

Conveyor noise level

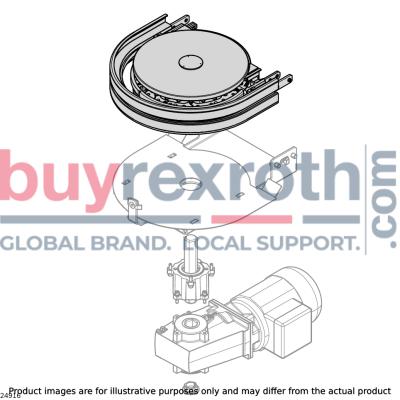

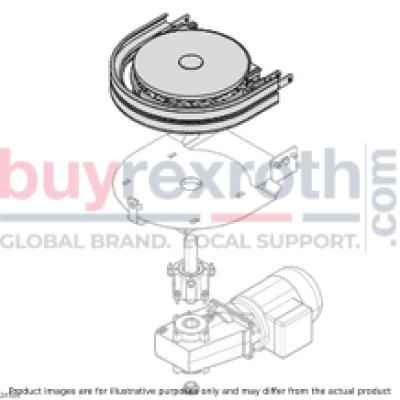

Basic unit curve wheel drive AF + drive kit curve wheel drive = curve wheel drive
Driving several superimposed basic curve wheel units (alpine conveyor) is easily implemented via the integrated hexagonal hollow shafts
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Side elements with slot to attach holders for lateral guides, or similar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	0,82
Actual chain length	0,68
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	5.6
Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Recommended accessories	Connection kit alpine conveyor
Required accessories	Drive kit curve wheel,Assembly module,Slide rail: Length calculation,Leg set
Size [b]	65
Material information	Housing: Diecast aluminum,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
