CURVE 90+ HOR AL 90° R500

Manufacturer: Bosch Rexroth

Material #: 3842547076

Model : CURVE 90+ HOR AL 90

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 90+ HOR AL 90? R500 (3842547076) is an advanced conveyor system component designed to facilitate a horizontal change in direction for conveying chains. This sliding curve is particularly useful in situations where the space constraints do not allow for a curve wheel or when the product dimensions and conveyor speeds make the use of a curve wheel impractical. The deflection angle of this sliding curve ensures seamless integration into various conveyor setups, contributing to a more flexible and efficient material handling process. Constructed with an aluminum profile that is anodized for durability and steel connectors that are galvanized to resist corrosion, this component is built to withstand the demands of continuous industrial use. The diecast aluminum cross connectors add to its robustness, making it suitable for heavy-duty applications. The CURVE 90+ HOR AL 90? R500 comes fully assembled with all necessary fastening materials included, simplifying installation and reducing setup time. This model's design focuses on reducing noise levels during high-speed operations and minimizing wear on the chain, which can result from friction in long product transportation scenarios, such as in wedge conveyors. Its compatibility with all chain types and version with open section profiles allows for versatility across a wide range of conveyor systems. Additionally, users can benefit from extended service life and decreased downtimes due to its low-friction curve technology. For specific modifications or additional versions, Bosch Rexroth provides support through their modification department. Overall, the Bosch Rexroth CURVE 90+ HOR AL 90? R500 sliding curve is an integral component that enhances conveyor performance by providing smooth directional changes under various operational conditions while ensuring longevity and reliability of the conveying system.

$570.67 USD

More are expected on November 12, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 12, 2024 when ordered in

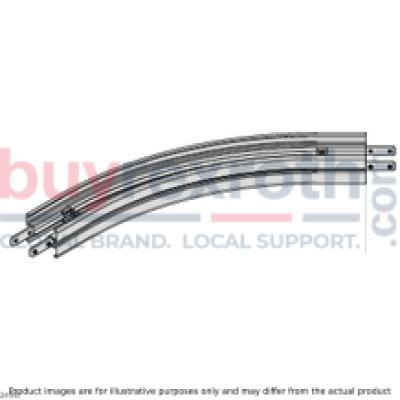

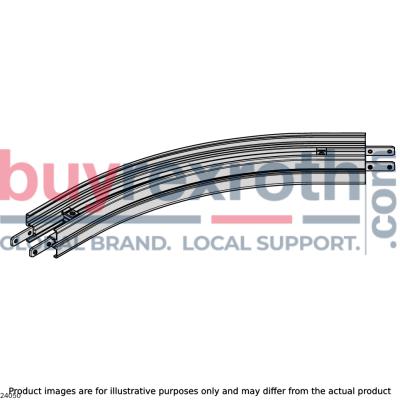

CURVE 90+ HOR AL 90° R500

Sliding curve horizontal AL VFplus 90 90° R500

Unpacked Weight: 2.71 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology

The sliding curve is used for the horizontal change in direction of the chain, if the installation space for a curve wheel is not sufficient or the speeds or product dimensions do not permit transport via the curve wheel. The sliding curve is used to reduce noise at high speeds or when transporting long products in wedge conveyors. The chain tensile force is increased through the ensuing friction.

Size: 65, 90, 120 Deflection angles and radii Suitable chain types: all Version with open section profiles Requires the use of the Advanced or Premium slide rails

The sliding curve provides a horizontal change in direction for the chain, for when there is not enough space for a curve wheel or the speeds or product dimensions do not permit conveying over a curve wheel

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	90
Productgroup ID	2
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	2.71
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	90
Dimension [A]	645
Material information	Profile: Aluminum, anodized,Profile connector: Steel, galvanized,Cross connector: Diecast aluminum

	Material
Sliding curve horizontal AL VFplus 65 30°	Profile: Aluminum, anodized Profile connector: Steel, galvanized Cross connector: Aluminum, die-cast
Sliding curve horizontal AL VFplus 65 45°
Sliding curve horizontal AL VFplus 65 90°
Sliding curve horizontal AL VFplus 90 45° R500
Sliding curve horizontal AL VFplus 90 90° R500
Sliding curve horizontal AL VFplus 90 30° R700
Sliding curve horizontal AL VFplus 90 45° R700
Sliding curve horizontal AL VFplus 90 90° R700
Sliding curve horizontal AL VFplus 120 30°
Sliding curve horizontal AL VFplus 120 45°
Sliding curve horizontal AL VFplus 120 90°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

Sliding curve horizontal AL

b	α	A	C	R
mm	°	mm	mm	mm
65	30	204.4	552.9	700
	45	331.2	688.7	700
	90	832.5	832.5	700
90	45	294	556.1	500
	90	645	645	500
	30	277.8	559.1	700
	45	352.6	697.5	700
	90	845	845	700
120	30	255.7	566.6	700
	45	378.2	708.1	700
	90	860	860	700
