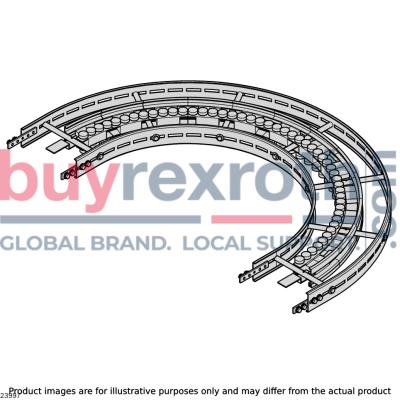

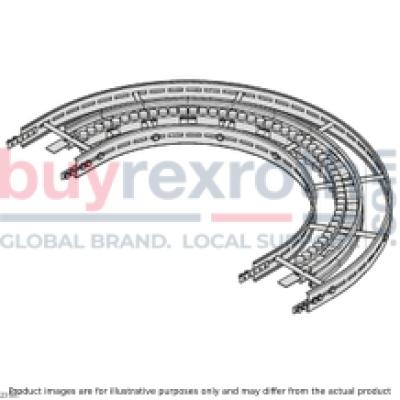

CURVE 320+ HOR STS 180° R500

Manufacturer: Bosch Rexroth

Material #: 3842547134

Model : CURVE 320+ HOR STS 180

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 320+ HOR STS 180° R5 (3842547134) is a high-performance roller curve designed for horizontal chain direction changes within conveyor systems. This innovative component features patented roller elements that ensure low-friction and quiet operation, enhancing the efficiency of material handling processes. The construction includes ball bearings made of non-rusting steel, complete with seals on both sides and FDA-compliant grease filling, making it suitable for environments where cleanliness and resistance to corrosion are paramount. The CURVE 320+ HOR STS is constructed with surfaces that come into contact with the chain made from FDA-compliant materials, ensuring it meets stringent hygiene standards required in industries such as food and pharmaceuticals. Its easy-to-clean design further supports applications where sanitation is critical. With an effective sliding rail length and actual chain length tailored to specific requirements, this roller curve can accommodate various conveyor sizes. The product boasts a deflection angle of 180 degrees with a deflection radius of R5, compatible with all suitable chain types. It is designed for use with slide rails, whose lengths can be calculated based on the size requirements. The profile is made from non-rusting steel, while the roller carrier consists of PA (polyamide), ensuring durability and longevity. This unit comes fully assembled, including fastening materials for mounting to the STS section profile, simplifying installation processes. While standard dimensions are provided, additional versions can be requested through Bosch Rexroth's modification department to meet specific application needs. With its robust construction and versatile design, the CURVE 320+ HOR STS 180° R5 is an essential component in creating efficient conveyor systems that require precise and reliable changes in direction.

$2,500.02 USD

More are expected on November 27, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 27, 2024 when ordered in

CURVE 320+ HOR STS 180° R500

Roller curve horizontal STS VFplus 320 180°

Unpacked Weight: 13.54 kg

Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Plastic-coated roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Deflection radius: R500 Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	5x 1,77
Actual chain length	2x 1,77
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	13.54
Scope of delivery	Incl. fastening material for mounting to the STS section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	320
Dimension [A]	1320
Material information	Profile: Non-rusting steel 1.4301,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Non-rusting steel 1.4301,Rollers: PA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
