TS12-26C-0-V-24DG PRESSURE CONTROL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

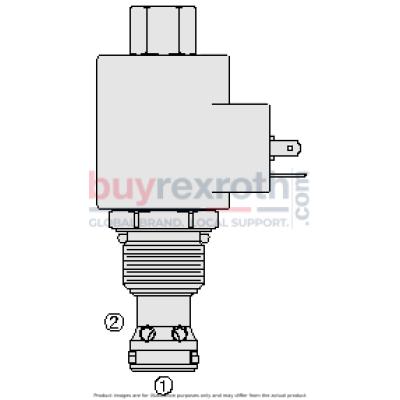

The Hydraforce 5122277V (5122277V) is a screw-in, cartridge style, pilot-operated, spool-type relief valve known as the TS12-26X. This valve offers infinite adjustability across a specified range through the use of a variable electric current. The regulated pressure is directly proportional to the input electrical current, allowing for precise control in hydraulic systems. The TS12-26X operates by blocking flow from port 1 to port 2 until enough pressure at port 1 opens the pilot section, counteracting the solenoid force induced electrically. In its default state with no current applied, it relieves pressure at approximately 100 psi (6.9 bar). The valve is equipped with standard coils available in both 12 and 24 volts, and offers optional waterproof E-Coils rated up to IP69K for enhanced durability in harsh environments. It fits an industry-common cavity and features an optional manual override for added versatility in various applications.
