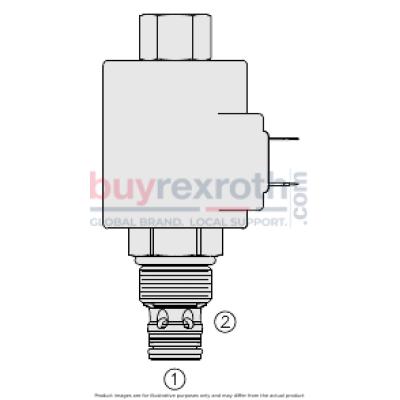

The Hydraforce 5122001 (5122001) is a screw-in, cartridge-style, pilot-operated, spool-type relief valve known as the TS10-26X. This valve is designed to be infinitely adjustable across a specified range using a variable electric current, allowing for precise control of regulated pressure proportional to the input electrical current. It effectively blocks flow from port 1 to port 2 until a sufficient pressure at port 1 offsets the solenoid force induced electrically, thus opening the pilot section. In scenarios where no current is applied, the valve relieves at approximately 100 psi (6.9 bar). The TS10-26X comes equipped with standard 12 and 24-volt coils and offers optional waterproof E-Coils that are rated up to IP69K for enhanced durability in harsh environments. Additionally, it features an industry-common cavity and an optional manual override for added versatility in application. This product is suitable for applications requiring precise pressure control and reliability in hydraulic systems.
