PV42-M30AG-0-N-00 FLOW CONTROL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

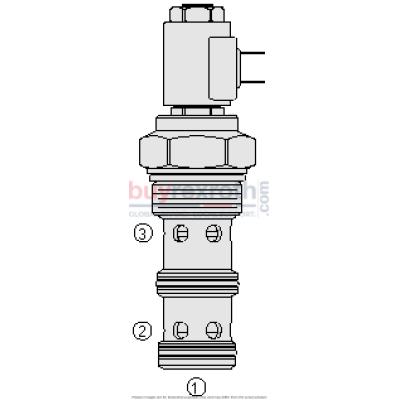

The Hydraforce PV42-M30AG-0-N-00 (5111206) is a solenoid-operated, spool-type, normally closed proportional priority flow regulator designed for precise flow control in hydraulic systems. This valve features pressure-compensated regulated and bypass flow, making it suitable for use with both mineral-based and synthetic hydraulic fluids that possess lubricating properties. The regulated flow is directly proportional to the electric current applied to the solenoid, providing excellent linearity and hysteresis characteristics. It offers a choice between two regulated flow ranges: 170 to 225 lpm (45.0 to 60.0 gpm) for Flow Range A and 112 to 225 lpm (30.0 to 60.0 gpm) for Flow Range B, with maximum flow ratings of 190 lpm (50.0 gpm) and 132 lpm (35 gpm), respectively. The PV42-M30AG-0-N-00 is built with a hardened spool and cage for enhanced durability and long life. It accommodates optional coil voltages and terminations, as well as an efficient wet-armature construction that contributes to its reliability in operation. Additionally, a manual override option is available for increased flexibility in various applications. Rated for pressures up to 241 bar (3500 psi), this valve ensures robust performance under demanding conditions while maintaining maximum internal leakage at just 190 lpm (0.40 gpm) at zero current. It fits into VC42-M3 cavities, specifically designed as part of the 42-size-3-way cavities system. For installation and maintenance convenience, seal kits are available along with comprehensive installation instructions. The PV42-M30AG-0-N-00 can be paired with EHPR size D or E coils, enhancing its adaptability across different setups where proportional pilot-operated spring-centered spool directional control is required.
