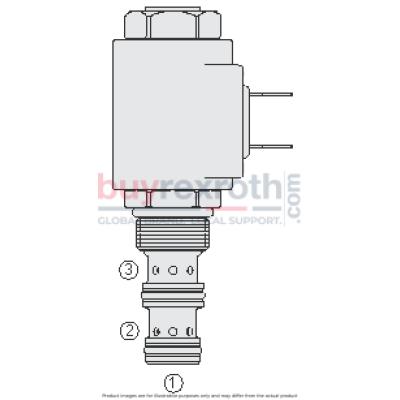

The Hydraforce PV08-30B-0-N-00 (5110501) is a solenoid-operated, pressure-compensated, spool-type, normally closed, priority type proportional flow control regulator. This versatile valve can also function as a restrictive type, 2-way pressure compensated proportional flow regulator when port 2 is blocked. Designed to regulate priority flow from port 1 to port 3 regardless of system pressure, the flow rate is proportional to the current applied to the solenoid. Any excessive flow bypasses through port 2 and can be utilized for auxiliary functions. In restrictive mode applications, with port 2 blocked, the flow rate out of port 3 remains consistent with the solenoid current irrespective of load pressure on port 3. The PV08-30B offers excellent linearity and hysteresis characteristics due to its hardened spool and cage construction for enhanced durability. It supports optional coil voltages and terminations and features efficient wet-armature construction. The valve operates at an inlet pressure rating of up to 241 bar (3500 psi) and regulated or bypass pressures up to 207 bar (3000 psi), with a proof pressure of 345 bar (5000 psi) and burst pressure reaching up to 896 bar (13000 psi). It supports various flow ratings with a maximum internal leakage of 197 ml/min at specified conditions. The operating fluid temperature ranges from -40\u00b0C to 100\u00b0C with buna N seals or -26\u00b0C to 204\u00b0C with fluorocarbon seals. The PV08-30B is compatible with mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt and maintains an operating contamination level per ISO standards. Installation specifications include compatibility with VC08-3 cavities, specific torque requirements for installation components, and no orientation restrictions during installation.
