PV08-30A-0-N-24DG FLOW CONTROLS

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

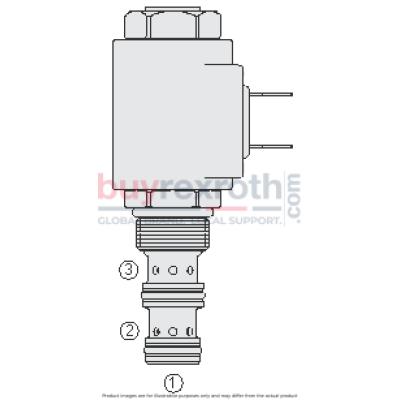

The Hydraforce 5110521 (5110521) is a solenoid-operated, pressure-compensated, spool-type, normally closed, priority type proportional flow control regulator. This versatile device can also function as a restrictive type, 2-way pressure compensated proportional flow regulator when port 2 is blocked. Designed for applications requiring precise flow control, the valve regulates priority flow out of port 3 with inlet flow at port 1, irrespective of system working pressure. The flow rate is directly proportional to the current applied to the solenoid. Any excessive flow bypasses through port 2 and can be utilized for auxiliary function control. However, it is important to avoid dead heading the priority line by external valving to prevent blocking of the bypass line. In restrictive mode applications where bypass port 2 is blocked, the flow rate out of port 3 remains proportional to the current applied to the solenoid regardless of load or pressure at port 3. The Hydraforce PV08-30 model boasts excellent linearity and hysteresis characteristics due to its hardened spool and cage construction for extended durability. It features optional coil voltages and terminations for added flexibility in various applications and benefits from an efficient wet-armature construction that enhances its performance capabilities.
