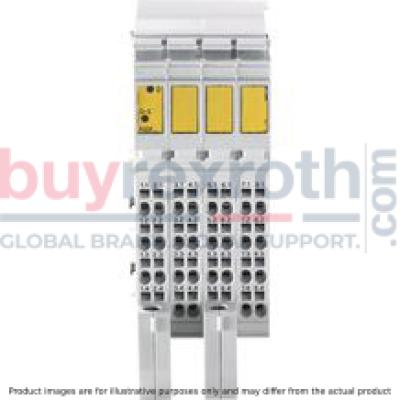

R-IB IL AO 2/SF/CN-PAC

Manufacturer: Bosch Rexroth

Material #: R911172576

Model : R-IB IL AO 2/SF/CN-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL AO 2/SF/CN-PAC (R911172576) is a state-of-the-art analog output module designed for seamless integration within an Inline station. This high-resolution module is adept at outputting analog voltage or current signals, providing users with precise control and monitoring capabilities. With a resolution of 14 bits, it ensures accurate signal processing essential for various automation tasks. The module's flexibility is showcased by its ability to output signals in the ranges of 0...20 mA or 4...20 mA for current, and 0...10 V for voltage, catering to a wide range of application requirements. The connection technology utilized is the proven 3-wire connection technique, ensuring reliable and secure connections. Included with this module are essential accessories such as a connection plug and a labeling field, which facilitate easy installation and maintenance. The consecutive terminal point labeling further simplifies wiring and commissioning processes by providing clear identification for setup. The R-IB IL AO 2/SF/CN-PAC is designed to meet the stringent demands of modern industrial environments, offering both robustness and precision. It is an ideal solution for applications requiring high-quality analog signal output within the Bosch Rexroth Inline station ecosystem.

$1,300.71 USD

More are expected on January 17, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as January 17, 2025 when ordered in

This module is designed for use within an Inline station. It is used to output analog voltage or current signals. The signals are provided with a resolution of 16 bits.

General data

Type		R-IB IL AO 2/SF/CN-PAC
Color		Gray
Weight 1)	g	190
Operating mode		Process data mode with 2 words
Actuator connection type		2-wire technology
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20
Protection class		III, IEC 61140, EN 61140, VDE 0140-1

1)	Including plug

Connection data

Type		R-IB IL AO 2/SF/CN-PAC
Designation		Inline connection plug
Connection type		Spring-cage connection
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16

Interface local bus

Type		R-IB IL AO 2/SF/CN-PAC
Connection type		Inline data jumper
Transmission speed	kBit/s	500
Transfer physics		Copper

Inline potentials/performance balance

Type		R-IB IL AO 2/SF/CN-PAC
Logic voltage UL	V DC	7.5
Typical current consumption from UL	mA	36
Maximum current consumption from UL	mA	45
Analog supply voltage UANA	V DC	24
Typical current consumption from UANA	mA	75
Maximum current consumption from UANA	mA	95
Typical power consumption total	W	2.1

Analog outputs

Type				R-IB IL AO 2/SF/CN-PAC
Number of analog outputs 1)				2
Signals/resolution in the process data bytes (quantization)	For Inline	Voltage 0 V ... 10 V		0 V ... 10.837 V; 0.333 mV/LSB
		Current 0 mA ... 20 mA		0 mA ... 21.6764 mA; 0.667 μA/LSB
		Current 4 mA ... 20 mA		4 mA ... 21.3397 mA; 0.553 μA/LSB
	For IB ST	Voltage 0 V ... 10 V		0 V ... 9.9975 V; 2.441 mV/LSB
		Current 0 mA ... 20 mA		0 mA ... 19.9951 mA; 4.8828 μA/LSB
		Current 4 mA ... 20 mA		4 mA ... 19.9961 mA; 3.906 μA/LSB
Basic error limit			%	± 0.003
Output load voltage output			kΩ	≥ 2
Output load current output				0 ... 500
Process data update of the assembly 2)			ms	< 1

1)	Configures dependent on terminal point used
2)	Including conversion time of digital-analog converter

Signal rise times

		10 % ... 90 %	0 % ... > 99 %
Voltage output 0 V ... 10 V (typical data)
At no load	µs	44	72
Ohmic load RL = 2 kΩ	µs	46	74
Ohmic/capacitive load RL = 2 kΩ/CL = 10 nF	µs	47	95
Ohmic/capacitive load RL = 2 kΩ/CL = 220 nF	µs	79	350
Ohmic/inductive load RL = 2 kΩ/LL = 3.3 mH	µs	48	75
Power output 0 mA ... 20 mA (typical data)
Ohmic load RL = 500 Ω	µs	126	380
Ohmic/capacitive load RL = 500 Ω/CL = 10 nF	µs	140	425
Ohmic/capacitive load RL = 500 Ω/CL = 220 nF	µs	350	1200
Ohmic/inductive load RL = 500 Ω/LL = 3.3 mH	µs	110	368
Power output 4 mA ... 20 mA (typical data)
Ohmic load RL = 500 Ω	µs	140	508
Ohmic/capacitive load RL = 500 Ω/CL = 10 nF	µs	145	534
Ohmic/capacitive load RL = 500 Ω/CL = 220 nF	µs	380	1200
Ohmic/inductive load RL = 500 Ω/LL = 3.3 mH	µs	116	410

Tolerance and temperature behavior of outputs at TU = 25 °C

		Tolerance absolute, typical	Tolerance absolute, maximum	Tolerance relative, typical	Tolerance relative, maximum
Output range	0 V ... 10 V	± 0.8 mV	± 2 mV	± 0.008 %	± 0.02 %
	0 mA ... 20 mA	± 2 μA	± 6 μA	± 0.01 %	± 0.03 %
	4 mA ... 20 mA	± 2 μA	± 6 μA	± 0.01 %	± 0.03 %

Tolerance and temperature behavior of outputs at TU = -25 °C ... +55 °C

			Temperature coefficient maximum	Temperature coefficient typical
Output range	0 V ... 10 V	ppm/K	± 8	± 25
	0 mA ... 20 mA	ppm/K	± 18	± 45
	4 mA ... 20 mA	ppm/K	± 18	± 45

Protective devices

Type		R-IB IL AO 2/SF/CN-PAC
Transient protection on voltage and current outputs		Yes

Programming data

Type		R-IB IL AO 2/SF/CN-PAC
ID code (hex)		5B
ID code (dec)		91
Length code (hex)		02
Length code (dec)		02
Process data channel	bits	32
Input address room	byte	4
Output address room	byte	4
Parameter channel (PCP)	byte	0
Register length (bus)	bits	32

Fieldbus data telegram

Type		R-IB IL AO 2/SF/CN-PAC
Need for parameter data	byte	6
Need for configuration data	byte	5

Error messages to the higher-level control or computer system

Type		R-IB IL AO 2/SF/CN-PAC
Error message		Upon failure or undershooting of the analog supply voltage UANA: Peripheral error message to the bus coupler

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL AO 2/SF/CN-PAC
Common potentials
24 V peripheral voltage, 24 V segment voltage and GND are on the same potential. FE represents a separate potential area.
Separate potentials in the system of bus coupler/feed module and I/O module
Test distance		Test voltage
7.5 V supply (bus logic), 24 V supply UANA/peripherals		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic), 24 V supply UANA/function earth		500 V AC, 50 Hz, 1 min.
24 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.

Mechanical tests

Type		R-IB IL AO 2/SF/CN-PAC
Shock 1)		15 g, 11 ms; 25 g, 6 ms; half sinusoidal shock pulse, 3 shocks per spatial direction

1)	Acc. to EN 60068-2-27/IEC 60068-2-27Deviation compared to DOK-CONTRL-ILSYSINS***-AW-DE-P

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-IB IL AO 2/SF/CN-PAC
A	mm	48.8
B	mm	136.8
C	mm	72
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
