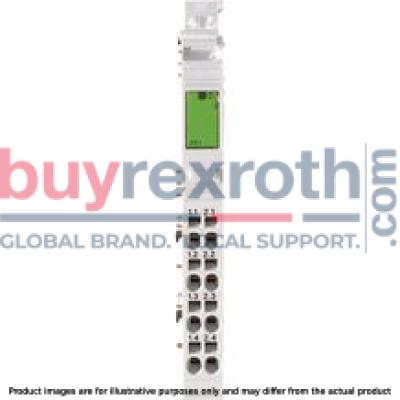

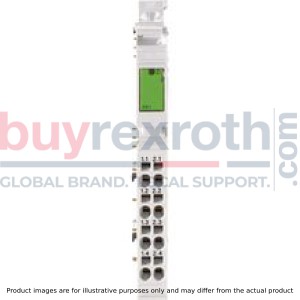

INTERFACE MODULE R-IB IL AI 4/I-PAC

Manufacturer: Bosch Rexroth

Material #: R911172894

Model : R-IB IL AI 4/I-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL AI 4/I-PAC (R911172894) is an advanced analog input module crafted for seamless integration within an Inline station, primarily utilized for the precise acquisition of analog current signals. This robust module features differential input channels that accommodate a range of ...mA to ...mA, ensuring versatile applications in signal acquisition. The design incorporates a wire connection technique that facilitates straightforward installation and maintenance. Included with the R-IB IL AI 4/I-PAC are essential accessories such as a connection plug and a labeling field, which aid in organization and identification within complex systems. The labeling field is particularly useful for system operators to quickly recognize and manage the module's function within the Inline station. This input module exemplifies Bosch Rexroth's commitment to producing high-quality automation components that enhance system reliability and performance. It is engineered to meet stringent standards, ensuring it operates effectively within industrial environments that require precise monitoring and control of analog signals. The R-IB IL AI 4/I-PAC is ideal for applications where accurate data acquisition is critical, providing users with a dependable solution for their automation needs.

$579.34 USD

More are expected on December 19, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 19, 2024 when ordered in

INTERFACE MODULE R-IB IL AI 4/I-PAC

Inline connector

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.089 kg

This module is designed for use within an Inline station. It is used to acquire analog current signals.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual

Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport)	70-106 kPa (up to 3,000 m above sea level)
Width	12.2
Productgroup ID	4,6
Height	120
International protection code	IP20
Permissible air humidity (storage)	10-95
Permissible air humidity (transport)	10-95
A/D conversion time	6.5
Number of channels	4
Current input signal	0-20 mA 4-20 mA
Connection type	Zugfederanschluss
Connection techniques	2-Leitertechnik
Depth	71.5
Weight	0.089
Ambient temperature (during operation)	-25-55
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16

General data

Type		R-IB IL AI 4/I-PAC
Color		Gray
Weight 1)	g	66
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20, IEC 60529
Protection class		III, IEC 61140, EN 61140, VDE 0140-1

1)	Including plug

Connection data

Type		R-IB IL AI 4/I-PAC
Designation		Inline connection plug
Connection type		Spring-cage connection
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16

Interface local bus

Type		R-IB IL AI 4/I-PAC
Connection type		Inline data jumper
Transmission speed	kBit/s	500
Transfer physics		Copper

Inline potentials/performance balance

Type		R-IB IL AI 4/I-PAC
Logic voltage UL 1)	V DC	7.5
Typical current consumption from UL	mA	55
Peripheral supply voltage UANA	V DC	24
Typical current consumption from UANA	mA	30
Typical power consumption total	W	0.94

1)	Via potential jumpers

Analog inputs

Type		R-IB IL AI 4/I-PAC
Number of analog inputs 1)		4
Connectivity technology		2-wire technology
Current input signal		0 mA ... 20 mA 4 mA ... 20 mA -
Resolution A/D	bits	12
A/D conversion time	µs	≤ 6.5
Limit frequency (3 dB)	Hz	300
Measurement representation		13 bits (12 bits + sign) - - - - -
Data formats		IB IL, S7 compatible
Process data update 2)	µs	250
Filtering		None or averaged over 4, 16 or 32 measured values
Overload protection		Max. ±5.2 V DC, Imax = 50 mA
Typical input resistance power input	Ω	113
Open circiut response		Regulating toward 0 mA; wire break detection for 4 mA ... 20 Ma

1)	Differential inputs, current
2)	All channels

Programming data

Type		R-IB IL AI 4/I-PAC
ID code (hex)		7F
ID code (dec)		127
Length code (hex)		04
Length code (dec)		04
Process data channel	bits	64
Input address room	byte	8
Output address room	byte	8
Parameter channel (PCP)	byte	0
Register length (bus)	bits	64

Fieldbus data telegram

Type		R-IB IL AI 4/I-PAC
Need for parameter data	byte	10
Need for configuration data	byte	5

Error messages to the higher-level control or computer system

Type		R-IB IL AI 4/I-PAC
Error message		Upon failure of the internal peripheral power supply: Peripheral error message to the bus coupler Upon failure of the peripheral power supply: Message in the diagnostic code (in format IB IL) When the measurement range is exceeded or undershot: Message in the diagnostic code (in format IB IL) Upon invalid configuration: Message in the diagnostic code (in format IB IL)

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL AI 4/I-PAC
Test distance		Test voltage
5 V supply incoming remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
5 V supply to further remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic), 24 V supply UANA/peripherals		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic), 24 V supply UANA/function earth		500 V AC, 50 Hz, 1 min.
Peripherals/function earth		500 V AC, 50 Hz, 1 min.

Conformity

Type		R-IB IL AI 4/I-PAC
Conforms with
Testing of interference immunity acc. to EN 61000-6-2	Discharge of static electricity (ESD)	Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2
	Electro-magnetic fields	Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3
	Fast transients (burst)	Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4
	Transient overvoltage (surge)	Criterion B; supply lines DC: ±1 kV/±1 kV (symmetric/asymmetric); ±1 kV on shielded I/O lines acc. to EN 61000-4-5/IEC 61000-4-5
	Line-fed disturbances	Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6
Testing of disturbance transmission acc. to EN 61000-6-3	Radio disturbance characteristics	Class A acc. to EN 55022

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-IB IL AI 4/I-PAC
A	mm	12.2
B	mm	120
C	mm	71.5
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
