PRESSURE SWITCH HEDE12-1X/400-2-K35-V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

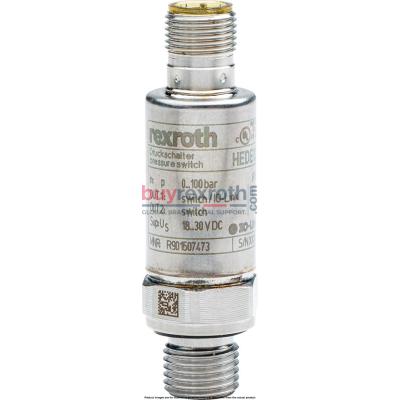

The Bosch Rexroth HEDE12-1X/400-2-K35-V (R901507477) is an advanced electronic pressure switch designed for precision monitoring and control of pressure in hydraulic systems. It features a robust stainless steel construction for all components in contact with the media, ensuring durability and resistance to corrosive fluids. With a maximum operating pressure of 400 bar, this device is suitable for high-pressure applications. The switch boasts a thin-film measuring cell that provides a high degree of measurement accuracy (less than 1% FS), along with excellent overload and bursting behavior, which enhances safety and reliability. It includes two switching outputs and allows for the configuration either through IOLink or directly via a button on the device, offering flexibility in system integration. The HEDE12-1X/400-2-K35-V is equipped with IOLink communication capabilities, enabling it to transmit pressure and diagnostic values for better process control and predictive maintenance. The hydraulic connection is a G-threaded throttle element in the pressure tube, which simplifies installation. Electrical connections are made through a 4-pole M12 connector that is A-coded according to DIN EN standards. It conforms to multiple regulatory standards including CE for electromagnetic compatibility within the EU, UL recognition, and RoHS compliance. The power supply required for operation is 24 VDC. This electronic pressure switch has been designed to work with various hydraulic fluids such as HL, HLP, HFC types, and even Nitrogen up to 400 bar. Its seals are made from FKM material known for its chemical resistance properties. Weighing at approximately 0.5 kg, it presents itself as a compact yet powerful component suitable for diverse hydraulic applications where precise pressure measurement is critical.
