PRESSURE SWITCH HEDE10-3X/250/1/-GA-K35-V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

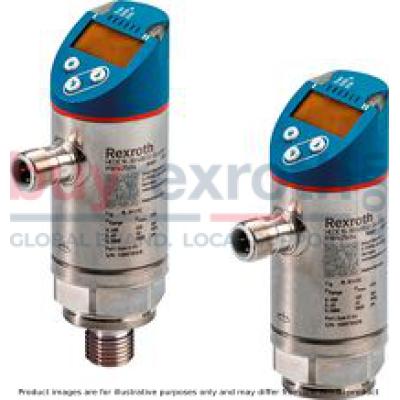

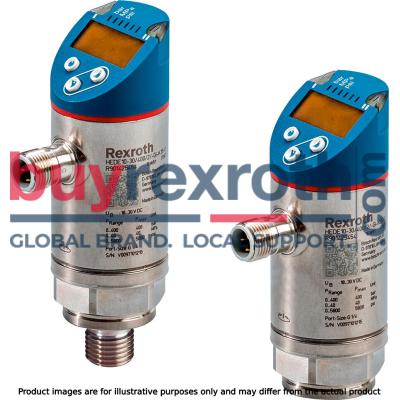

The Bosch Rexroth HEDE10-3X/250/1/-GA-K35-V (R901433085) is an advanced electronic pressure switch designed for accurate pressure measurement and monitoring in hydraulic systems. This device features a robust thin film measuring cell that ensures precise readings and excellent overload and bursting behavior, suitable for demanding applications. The pressure range of the unit allows it to be versatile across various settings, while the inclusion of both switching and analog outputs (V/mA) provides flexibility in signal processing. Equipped with a clear display for real-time pressure values and parameters, the HEDE10-3X/250/1/-GA-K35-V also facilitates easy configuration either via IOLink or directly using the button on the device. The additional transmission of pressure and diagnostic values through IOLink enhances its functionality for modern industrial applications. All components in contact with media are constructed from high-quality stainless steel, ensuring durability and compatibility with a wide range of hydraulic fluids such as HL, HLP, HFC, HETG, HEES, and HFD. The unit's compact design incorporates a throttle element in both the pressure tube and channel to manage flow dynamics effectively. It comes with a male thread or internal thread G for hydraulic connections and uses FKM seals to maintain integrity under various operating conditions. The electrical connection is facilitated by an Mx Acoded connector pole that adheres to EN standards. For compliance assurance, this model meets several conformity standards including CE for electromagnetic compatibility, RoHS Directive EU for hazardous substances, as well as UL, UKCA, and EAC certifications. With an accuracy class of 0.5%, supply voltage requirement of 24 VDC, and lightweight construction at just 0.5 kg, the Bosch Rexroth HEDE10-3X/250/1/-GA-K35-V is designed to deliver reliable performance in integrating pressure measurement into electronic control systems.
