MULTISTATION MANIFOLD 4HSR06-25/01D FE//ZN8//CN/T0

Manufacturer: Bosch Rexroth

Material #: R901375949

Model : MULTISTATION MANI. 4HSR06-25/01D FE//ZN&

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth MULTISTATION MANI. 4HSR06-25/01D FE//ZN& (R901375949) is a compact hydraulic control block designed for efficient control of valves in a vertical stacking arrangement. This base element is engineered to facilitate ready-for-connection controls, ensuring a streamlined setup for various hydraulic applications. It features common pump and tank lines, which simplifies the hydraulic circuit by sharing these lines across multiple stations. Additionally, each station has separate actuator ports, allowing for independent operation and control. The MULTISTATION MANI. 4HSR06-25/01D FE//ZN& boasts a maximum operating pressure of 250 bar and comes with a durable galvanic coating in accordance with DIN EN ISO standards, which provides resistance to corrosion and extends the lifespan of the unit under harsh conditions. The port sizes for both the pump and return are G3/4, aligning with standard hydraulic connections for ease of integration. This model has been meticulously designed with dimensions that accommodate its compact nature while still offering robust performance. The length and weight are optimized to support multiple vertical stackings without compromising on stability or functionality. In addition to its core capabilities, it offers optional measuring ports in the actuator lines for monitoring purposes. The unit utilizes HLP hydraulic fluid, ensuring reliable operation and compatibility with industry-standard fluids. Its design also allows for the mounting of sandwich plates and valves of size 6, further enhancing its versatility in various configurations. Overall, the Bosch Rexroth MULTISTATION MANI. 4HSR06-25/01D FE//ZN& (R901375949) represents an effective solution for those seeking a high-quality base element that provides both compact design and reliable performance in controlling multiple hydraulic valves within a single integrated system.

$393.00 USD

More are expected on May 5, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as May 5, 2025 when ordered in

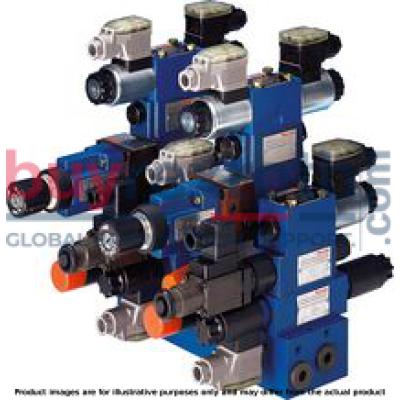

MULTISTATION MANIFOLD 4HSR06-25/01D FE//ZN8//CN/T0

Size 6, 4 valves

Compact hydraulic controls for 4 valves of size 6

Unpacked Weight: 7.3 kg

Base element for ready-for-connection controls in vertical stacking design Compact hydraulic controls Common pump line Common tank line Separate actuator ports of the stations Measuring ports in the actuator lines, optional Mounting of sandwich plates and valves of size 6

Base element for ready-for-connection controls in vertical stacking design
Compacter hydraulic control block
Common pump and tank line
Separate actuator ports of the stations
Size 6
Maximum operating pressure 315 bar

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Max. pressure	315
Surface coating	Galvanic coating DIN EN ISO 19598
Port sizes pump and return	G1/2
Productgroup ID	9,10,11,12,13,14
Connection point	bottom
Size	6
Length	233
Number of vertical stackings	4
Port size	G3/8
Weight	7.3
Hydraulic fluid	HLP

Manifold	01	02	03		04		05	06	07	08
		HSR	06	‒		/	01

Number of ready-for-connection controls in vertical stacking design
01	1 Control	1
	2 controls	2
	3 Controls	3
	4 controls	4
	5 controls	5
	6 controls	6
	7 controls	7
	8 controls	8
	9 controls	9
	10 controls	10
02	Manifold	HSR
03	Size 6	06
Component series
04	Port size: A, B = G3/8; P, T = G1/2	25
04	With enlarged connection thread; port size: A, B = G1/2; P, T = G3/4	35
Connection thread
05	Pipe thread according to ISO 228/1	01
Position of actuator ports
06	Lateral	C
06	At the bottom	D
Version
07	Standard version	no code
07	With measuring ports in A and B	S08 1)
Coating
08	Phosphate coating according to DIN EN 12476	PHOSPHATED 2)
08	Galvanic coating DIN 50979	FE//ZN8//CN/T0
1) Not possible with component series 25 with lateral actuator ports
2) Standard version (manganese or zinc phosphate coating)

Size		6
Material		GGG40
Surface coating		Standard coating: Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants)
Operating pressure max. 1)	bar	315

1)	Manifold without valve fitting

For applications outside these parameters, please consult us!
