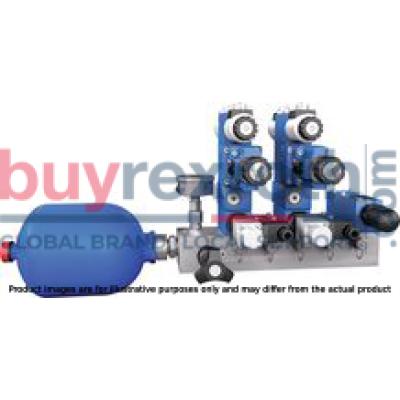

MULTISTATION MANI. 2HSR06M-40/01D PHOSP&

Manufacturer: Bosch Rexroth

Material #: R900731949

Model : MULTISTATION MANI. 2HSR06M-40/01D PHOSP&

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth MULTISTATION MANI. 2HSR06M-40/01D PHOSP& (R900731949) is a meticulously engineered hydraulic manifold designed for constructing compact and efficient hydraulic control systems. This manifold serves as a base element for ready-for-connection controls in a vertical stacking design, facilitating the creation of highly compact hydraulic controls by using vertically stackable sandwich plate valves along with on/off and proportional servo valves. The design of the manifold allows for all stations to share common pump and tank ports labeled P and T, respectively, with the pump line accessible at both front sides of the manifold. Each station on this Bosch Rexroth manifold is equipped with separate actuator ports A and B, as well as measurement ports MA and MB, strategically placed at the bottom side of the plate for ease of access and system monitoring. The manifolds are prepped to accommodate a pressure relief valve type DBD and have provisions for installing a pressure gauge type ABZMM within channel P to ensure system safety and performance monitoring. With its capability to mount NG sandwich plates and valves, this product offers versatility in system design. It is built to withstand maximum operating pressures specified by its component series, ensuring reliable performance across multiple stations. Users can expect robust construction coupled with thoughtful design elements that streamline installation while providing flexibility in hydraulic system configuration. The MULTISTATION MANI. 2HSR06M-40/01D PHOSP& is an essential component for those looking to build effective hydraulic solutions that require precise control over fluid power in various applications.

$690.00 USD

More are expected on March 19, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as March 19, 2025 when ordered in

Base element for ready-for-connection controls in vertical stacking design Compact hydraulic controls Common pump and tank line Separate actuator ports of the stations Measuring ports in the actuator lines Mounting of NG6 sandwich plates and valves Pressure relief valve type DBD in pressure line P Connection possibility of a pressure gauge in pressure line P

Manifolds are the base element for ready for connection controls in vertical stacking design. On each station, highly compact hydraulic controls can be build using vertically stackable sandwich plate valves in connection with on/off and proportional servo valves. All stations have a common pump and tank port (P2 and T2). The pump line is lead out at both front sides of the manifold. Every station is equipped with separate actuator ports "A" and "B” and measuring ports “MA” and “MB”. The actuator ports are located at the bottom side of the plate. The manifolds are prepared for the installation of a pressure relief valve type DBD 6 and a pressure gauge type ABZMM in channel P.

	01	02	03	04		05		06	07	08
Manifold		HSR	06	M	‒	40	/	01	D

Number of ready-for-connection controls in vertical stacking design
01	1 Control	1
	2 controls	2
	3 Controls	3
	4 controls	4
	5 controls	5
	6 controls	6
	7 controls	7
	8 controls	8
02	Manifold	HSR
Size
03	Size 6	06
Measuring ports
04	With measuring ports in the actuator ports A and B	M
Component series
05	Manifold with installation possibility for a pressure relief valve type DBD 6 (with NG06) and attachment possibility for a pressure gauge type ABZMM in pressure channel P	40
Connection thread
06	Pipe thread according to ISO 228 Part 1	01
Position of actuator ports
07	At the bottom	D
Coating
08	Galvanic coating DIN 50979	FE//ZN8//CN/T0
08	Phosphate coating according to DIN EN 12476	PHOSPHATED 1)

1)	Manganese or zinc phosphate coating

Required ordering code of a completely mounted manifold

Example:

2-fold manifold

Position	Quantity	Device designation	Type designation	Material number
.0	1		2HSR06MD4X...C736A/G24N9K4M011)	1)
.01	1	Manifold	2HSR06M-40/01D PHOSPHATED	R900731949
.11	1	Check valve	Z1S 6 P15-4X/N	R901219725
.12	1	Sandwich plate	HSZ 06 A431-1X/LJ4M00	R900971827
.13	1	Check valve	Z2S 6B1-6X/	R900347501
.14	1	Directional spool valve	4WE 6 H73-6X/EG24N9K4/A12	R900906660
	4	Stud screw	DIN939-M5X180-10.9	R900028125
	4	Round nut	ZN10035-M5-ST	R913020308
.21	1	Flow control valve	Z2FRM 6 TB2-2X/6QRV	R900910912
.22	1	Cover plate	HSA 06 A005-4X/M00	R901092289
	4	Hexagon socket head cap screw	ISO4762-M5X80-10.9-F&	R913000070
.31	1	Pressure relief valve	DBDS 6 K1X/315P220	R900773948
.32	1	Measuring coupling	MCS20-SDS-E-G1/4-ST3N00Z-M	R900009090
.33	1	Measuring coupling	MCS20-SDS-E-G1/4-ST3N00Z-M	R900009090
.34	1	Measuring coupling	MCS20-SDS-E-G1/4-ST3N00Z-M	R900009090
.35	1	Measuring coupling	MCS20-SDS-E-G1/4-ST3N00Z-M	R900009090
.36	1	Pressure gauge	ABZMM 63- 400BAR/MPA-R/B-G	R900022459
	1	Assembly kit	AB-G1/4-G-G1/4-NBR	R901126946
	2	Plug screw	ZN10001-G3/8A-N-ST	R913011602
			For port A2, B2:
	1	Plug screw	ZN1001-G1/2A-N-ST	R913011603
			For port P1:
	1	Name plate	RNI-17620-001-REXROTH	R900002783

1)	Material number and short designation of the type are defined by Rexroth.

Size		6
Stations		from 1 ... 8
Material		GGG40
Surface coating		Galvanic coating according to DIN 50979 (FE//ZN8//CN//T0) Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants) (FE//ZNPH/R/5/T4 or FE//MNPH/R/5/T4)
Operating pressure max. 1)	bar	315
Hydraulic fluid		see table below
Fixing holes		4 x M8 front threads for vertical attachment, 2 through holes ø9 for front attachment

1)	Manifold without valve fitting

Hydraulic fluid		Classification	Standards	Data sheet
Mineral oil		Mineral oil HLP	DIN 51524	90220
Bio-degradable	Insoluble in water	Triglycerides (rape seed oil) HETG	ISO 15380	90221
	Insoluble in water	Synthetic esters HEES	ISO 15380
	Soluble in water	Polyglycols HEPG	ISO 15380
Flame-resistant	Water-free	Organic esters HFDU, phosphoric acid esters HFDR	ISO 12922	90222
Flame-resistant	Containing water	Emulsions HFA-E, aqueous solution HFC	ISO 12922	90223

Important information on hydraulic fluids:

For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. Some hydraulic fluids (HFC, HFD ...) may attack and destroy galvanized surfaces. Phosphatized plates (zinc phosphate coating, if applicable) are therefore not suitable. The zinc content of plates with galvanized insides, however, is very low. After a flushing procedure with subsequent filter exchange, the zinc is washed out. Special caution is required regarding leaking hydraulic fluid, especially during maintenance and disassembly of the manifold.

Notice:

For the installation, commissioning and maintenance of oil hydraulic systems, please observe data sheet 07900.

For applications outside these parameters, please consult us!

Manifolds with 4 stations

Manifold 4HSR06M-40/01D

Notice:

The pressure relief valves are not included in the scope of delivery.
