MULTISTATION MANI. 1HSR06M-40/01D FE//Z&

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

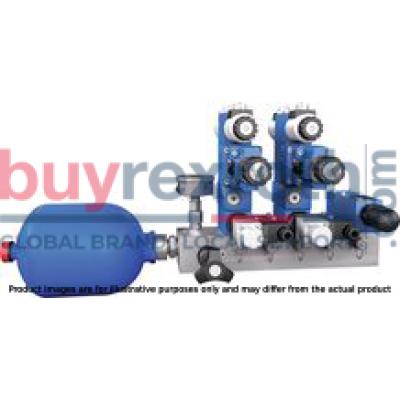

The Bosch Rexroth MULTISTATION MANI. 1HSR06M-40/01D FE//Z& (R901447930) is a sophisticated hydraulic manifold that serves as the foundational element for creating highly compact, ready-for-connection controls in a vertical stacking design. This manifold allows for the construction of intricate hydraulic controls by utilizing vertically stackable sandwich plate valves in conjunction with on/off and proportional servo valves. Each station within the manifold has access to a common pump and tank port P and T, with the pump line accessible from both front sides of the manifold, ensuring flexibility in system configuration. Equipped with separate actuator ports A and B at each station, located on the bottom side of the plate, this manifold ensures precise control over individual actuators. Additionally, it includes measuring ports MA and MB for monitoring performance within the actuator lines. The design facilitates easy mounting of NG sandwich plates and valves, enhancing its adaptability to various control applications. The MULTISTATION MANI. 1HSR06M-40/01D FE//Z& is prepped for installing a pressure relief valve type DBD within channel P to safeguard against overpressure scenarios. Moreover, there is a provision for connecting a pressure gauge type ABZMM into the pressure line P, which aids in real-time pressure monitoring—crucial for maintaining system integrity and performance. Overall, this Bosch Rexroth manifold is engineered to offer reliable and efficient hydraulic control solutions that can be customized to meet specific application requirements while maintaining compactness and ease of integration into various hydraulic systems.
