PRESSURE SWITCH HEDE10-3X/400/2/-GI-K35-0

Manufacturer: Bosch Rexroth

Material #: R901425454

Model : HEDE10-3X/400/2/-GI-K35-0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth HEDE10-3X/400/2/-GI-K35-0 (R901425454) is an advanced electronic pressure switch designed to provide precise monitoring and control in hydraulic systems. This component is equipped with a display for real-time pressure values and parameter settings, which are easily configurable via IOLink or directly on the device through buttons. It features two switching outputs and the capability to transmit pressure and diagnostic data through IOLink, enhancing its functionality for various applications. With a robust construction, all components that come into contact with media are made of high-quality stainless steel, ensuring durability and resistance to harsh conditions. The thin-film measuring cell at its core offers excellent overload protection and bursting behavior, contributing to the reliability of the system it's integrated into. The device's throttle element in the pressure channel further refines its performance. For connection purposes, it includes a connector pole Mx Acoded in accordance with EN standards. Its electrical connector is also designed for easy integration with a pole Mx Acoded setup. The switch operates on a supply voltage of 24 VDC and has an accuracy class of 0.5%. It supports various hydraulic fluids including HL, HLP, HFC, HETG, HEES, and HFD. The HEDE10-3X/400/2/-GI-K35-0 handles maximum operating pressures up to 400 bar and offers pressure ratings at 100 bar increments from 100 to 400 bar. Its compact design makes it suitable for space-constrained environments without compromising performance. Additionally, it conforms with multiple industry standards including CE, UL, UKCA, EAC, and RoHS directives. Overall, this Bosch Rexroth electronic pressure switch is an essential component for those requiring precise pressure measurement coupled with high-quality material construction for long-term use in demanding hydraulic applications.

Destination

$933.00 USD

Availability: Backordered

Ships from US

Add to Cart

Qty:
Delivered as early as November 27, 2026

$979.65 USD

Availability: Backordered

Ships from CA

Add to Cart

Qty:
Delivered as early as November 27, 2026

Source From Bosch Rexroth

Unavailable

This product is eligible for factory repair.

Start Repair

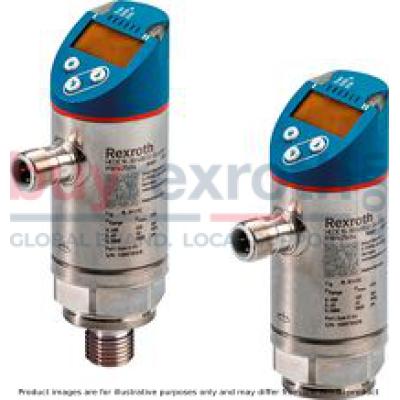

PRESSURE SWITCH HEDE10-3X/400/2/-GI-K35-0

Electronic pressure switch with display, 2 switching outputs, pressure range 0 … 400 bar, connector 4-pole M12x1 A-coded, throttle element

Display for pressure values and parameters. Additional transmission of pressure and diagnosis values via IO-Link. All components in contact with the media are made of stainless steel. Excellent overload and bursting behavior.

Unpacked Weight: 0.240 kg

Suitable for measuring pressures in hydraulic systems as well as for transforming the measured values into electronic signal values Sensor thin film measuring cell Connection cable with 4-pole M12 connector on the housing Accuracy class 1.0 Male thread or internal thread G1/4'' Components in contact with the media made of stainless steel and FKM Compact design One switching output and one analog output or two switching outputs IO link V1.1

Thin film measuring cell
2 switching outputs
Parameterization via IO-Link or buttons at the device
Hydraulic connection G1/4
Throttle in pressure channel
Configuration via IO-Link or button at device
Throttle element in the pressure channel
Connector 4-pole, M12x1, A-coded
Maximum operating pressure 600 bar
Component series 3X
Pressure ratings 100, 250, 400 and 600 bar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Connection diagram	Internal thread G1/4
Max. pressure	400
Output signal	2 switching outputs
Supply voltage	24 VDC
Display	yes
Electrical connection description	Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101
Conformity description	CE – electro-magnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU
Conformity	CE,UL,UKCA,EAC,RoHS
Hydraulic fluid	HL,HLP,HFC,HETG,HEES,HFD
Seals	FKM
Productgroup ID	9,10,11,12,13,14
Weight	0.240

01		02		03		04		05		06		07		08
HEDE10	-	3X	/		/		/-		-		-		-	*

01	Hydro-electric pressure switch	HEDE10
02	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
03	Pressure rating maximum 100 bar	100 bar
	Pressure rating maximum 250 bar	250 bar
	Pressure rating maximum 400 bar	400 bar
	Pressure rating maximum 600 bar	600 bar
Output
04	1 switching and 1 analog output	1
04	2 switching outputs	2
Hydraulic connection
05	Internal thread G1/4	Gi
05	Male thread G1/4	Ga
Electrical connection
06	Individual connection
06	Without mating connector; connector M12 DIN EN 61076-2-101 without cable with M12 connector, A-coded	K35 1)
Seal material
07	FKM seals 2)	V
	Without seal (with internal thread)	0
08	Further details in the plain text	*

1)	Mating connectors, separate order, see "Accessories"
2)	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)

Accessories

Mating connectors for the electrical connection see chapter Electrical connection. Mounting clamp and protective cap see chapter Accessories.

Type

Component series		3X

General

Weight		m	kg	0.26
Installation position				any
Ambient temperature range		ϑ	°C	-25 … +80
Storage temperature range		ϑ	°C	-40 … +100
Sine test according to DIN EN 60068-2-6:1996-05				10 ... 2000 Hz, max. 20 g, 10 double cycles
Transport shock according to DIN EN 60068-2-27:1995-03				Half-sine 50 g / 11 ms, 3 x in positive direction, 3 x negative direction (a total of 18 single shocks)
Noise test according to DIN EN 60068-2-64: 1995-08				20...2000 Hz, 10 gRMS, 24 h
Conformity	CE			DIN EN 60947-1: 2007 / A1: 2011 / A2: 2014 DIN EN 60947-5-1: 2004 / A1: 2009 DIN EN 61058-1: 2002 / A2: 2008 DIN EN 60529: 1991 / A2: 2013
Conformity	UL			UL, 508 17th edition File No E223220 (up to 350 bar)
Protection class according to DIN EN 60529				IP 65 / IP 67 with mating connector mounted and fitted
Protection class according to EN 50178				III

Hydraulic

Pressure measuring ranges		pN	bar	100	250	400	600	100	250	400	600	100	250	400	600	100	250	400	600
Overload protection		pmax	bar	300	500	800		300	500	800		300	500	800		300	500	800
Bursting pressure		p	bar	400	1000	1600	2500	400	1000	1600	2500	400	1000	1600	2500	400	1000	1600	2500
Switching point	Setting range		bar	1 … 100	2 … 250	4 … 400	6 … 600	1 … 100	2 … 250	4 … 400	6 … 600	1 … 100	2 … 250	4 … 400	6 … 600	1 … 100	2 … 250	4 … 400	6 … 600
Switching point	Reset range		bar	0.5 … 99.5	1 … 249	2 … 398	3 … 597	0.5 … 99.5	1 … 249	2 … 398	3 … 597	0.5 … 99.5	1 … 249	2 … 398	3 … 597	0.5 … 99.5	1 … 249	2 … 398	3 … 597
In steps of			bar	0.5	1	2	3	0.5	1	2	3	0.5	1	2	3	0.5	1	2	3
Druckflüssigkeit 1)				see table below
Hydraulic fluid temperature range	(at the working port of the pressure switch)	ϑ	°C	-25 … +80
Viscosity range			mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c)				Class 20/18/15 1)
Materials in contact with the medium				V4A (1.4542), FKM (with male thread)
Pressure port	Internal thread "Gi"			G1/4
Pressure port	Male thread "Ga"			G1/4

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM, low-temperature seals	DIN 51524	90220
Bio-degradable	⇒Insoluble in water	HETG	NBR, FKM	ISO 15380	90221
	⇒Insoluble in water	HEES	FKM	ISO 15380
	⇒Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	⇒Water-free	HFDU, HFDR	FKM	ISO 12922	90222
Flame-resistant	⇒Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922	90223

Important information on hydraulic fluids:

For more information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The flash point of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature.

• Flame-resistant – containing water:

- Maximum pressure differential per control edge 50 bar

- Pressure pre-loading at the tank port >20% of the pressure differential, otherwise increased cavitation

- Life cycle as compared to operation with mineral oil HL, HLP 50 to 100%

• Bio-degradable and flame-resistant:

When using hydraulic fluids that are simultaneously zinc-solving, zinc may accumulate (700 mg zinc per pole tube).

Electric

	Electrical connection				M12 plug-in connection, gold-plated contacts
Input variables	Operating voltage		UB		18 … 30 VDC
	Current consumption		I	mA	< 50
	Isolation resistance		mΩ		>100 (500 VDC)
Output parameters	Analog output	Current carrying capacity	U		0 ... 10 VDC (minimum load 2000 Ω)
		Voltage	I		4 ... 20 mA (max. load (UB – 10) x 50 Ω)
		Rise time (10 to 90 %)	t	ms	3
	Switching output	Output function			Normally open contact / normally closed contact programmable
		Current carrying capacity 1)	I	mA	150
		Voltage drop (short-circuit protection clocked)	U	V	< 2.5
		Overload-resistant			yes
		Switching frequency	f	Hz	≤ 170
Accuracy / variations	Characteristic curve deviation 2)			%	< ± 0.5
	Temperature coefficient	Zero point and range			< 0.2 % / 10 K
	Hysteresis			%	< ± 0.25
	Switching point accuracy			%	< ± 0.5
	Repetition accuracy			%	0.1
Programming options					Hysteresis/window; normally open contact/normally closed contact; activation, deactivation delay; damping; indicator unit/diagnosis output
	Long-term drift under reference conditions (6 months)			%	0.05
	EMC (electro-magnetic compatibility)	EN 61000-4-2 ESD		kV	4 / 8
		EN 61000-4-3 HF radiated		V/m	10
		EN 61000-4-4 Burst		kV	2
		EN 61000-4-5 Surge		kV	1
		EN 61000-4-6 HF conducted		V	10
Reaction times	Readiness delay time			s	0.3
	Minimal reaction time switching output			ms	<3
	Adjustable delay time dS, dr			s	0...50
	Damping switching output (dAP)			s	0...4
	Damping analog output (dAA)			s	0...4
	Rise time analog output			ms	< 3
	Watchdog integrated				yes
	Switching cycles min.				100 million / 50 million with pressure rating 600 bar
IO-Link device	Transmission type				COM2 (38.4 kBaud)
	IO-Link revision				1.1
	SDCI standard				IEC 61131-9
	Profiles				Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
	SIO mode				yes
	Required master port class				A
	Process data analog				1
	Process data binary				2
	Minimal process cycle time			ms	2.3
Display	Indicator unit				3 x LED green (bar, psi, MPa)
	Switching status				2 x LED yellow
	Measured values				4-digit alphanumerical display / alternating display (red and green)

1)	200 (...60 °C); 250 (...40 °C) mA
2)	according to end point setting DIN16086

For applications outside these parameters, please consult us!

1 ... 8: indicator LEDs
LED 1	Switching status OUT1 (is illuminated when output 1 is switched through)
LED 8	Switching status OUT2 (is illuminated when output 2 is switched through)
LED 2 ... 7 1)	System pressure in the specified unit of measurement
9: Enter key [•]
Selection of the parameters and confirmation of the parameter values
10 and 11: Arrows up [⇑] and down [⇓]
Setting of the parameter values (permanent by continuous pressure; step-wise by pressing individually)
12: Alphanumerical display, 4-digit
Display of the current system pressure
Display of the parameters and parameter values

1)	With variant 1 switching and 1 analog output, these LEDs don’t have any function.

according to DIN EN 175301-803

"K35" two switching outputs
n-switching (NPN)	p-switching (PNP)

OUT1: Switching output or IO-Link OUT2: Switching output Color marking according to DIN EN 60947-5-2	OUT1: Switching output or IO-Link OUT2: Switching output Color marking according to DIN EN 60947-5-2
"K35" one switching and one analog output:

OUT1: Switching output or IO-Link OUT2: 4 ... 20 mA / 0 ... 10 V Color marking according to DIN EN 60947-5-2

Connector view at the device:

When establishing the electrical connection, the protective earthing conductor (PE, grounded) must be connected correctly.

Dimensions in mm

1)	Depending on lubrication, seal and pressurization

1	Status LEDs
2	4-digit alphanumerical display
3	Programming button
4	Dimension for "Gi" version with internal thread G1/4"
5	Dimension for "Ga" version with male thread G1/4"
