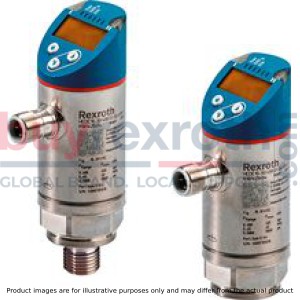

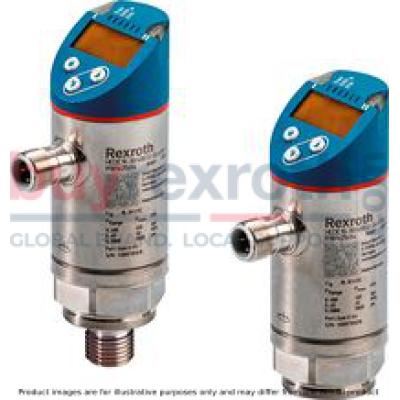

PRESSURE SWITCH HEDE10-3X/100/1/-GI-K35-0

Manufacturer: Bosch Rexroth

Material #: R901425473

Model : HEDE10-3X/100/1/-GI-K35-0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth HEDE10-3X/100/1/-GI-K35-0 (R901425473) is an advanced electronic pressure switch designed to provide precise monitoring and control for a variety of applications. This device features a clear display that allows users to easily read pressure values and adjust parameters. It offers both switching and analog outputs, with the capability to transmit pressure and diagnostic values via IO-Link, enhancing its integration into modern control systems. With a robust construction, all components in contact with media are crafted from high-quality stainless steel, ensuring durability and resistance against corrosion. The thin-film measuring cell contributes to the switch's excellent overload and bursting behavior, making it reliable even in demanding situations. It has been engineered for optimal performance with a maximum operating pressure of 600 bar and available pressure ratings of 100, 200, 315, and 600 bar. The Bosch Rexroth HEDE10-3X/100/1/-GI-K35-0 is configured either through IO-Link or manually via a button on the device itself. The inclusion of a throttle element in the pressure channel further enhances its functionality. For easy electrical connection, it comes equipped with an M12 connector that is A-coded according to EN standards. This electronic pressure switch is compatible with various hydraulic fluids such as HL, HLP, HFC, HETG, HEES, and HFD. Its compact design incorporates FKM seals for additional reliability in sealing. The unit's output signals include one switching output plus one analog output (0...10 V or 4...20 mA), or alternatively two switching outputs for increased versatility. Conforming to multiple standards including CE, UL, UKCA, EAC, and RoHS Directive EU ensures that this product meets stringent quality and safety requirements across different regions. Its accuracy class of 0.5% further attests to its precision in measuring pressures within hydraulic systems while transforming these measurements into electronic signal values for comprehensive system control and monitoring.

$899.00 USD

More are expected on October 2, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as October 2, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

PRESSURE SWITCH HEDE10-3X/100/1/-GI-K35-0

Electronic pressure switch with display, 1 switching output and 1 analog output 0...10 V /4...20 mA, pressure range 0 … 100 bar, connector 4-pole M12x1 A-coded, throttle element

Display for pressure values and parameters. Additional transmission of pressure and diagnosis values via IO-Link. All components in contact with the media are made of stainless steel. Excellent overload and bursting behavior.

Unpacked Weight: 0.24 kg

Suitable for measuring pressures in hydraulic systems as well as for transforming the measured values into electronic signal values Sensor thin film measuring cell Connection cable with 4-pole M12 connector on the housing Accuracy class 1.0 Male thread or internal thread G1/4'' Components in contact with the media made of stainless steel and FKM Compact design One switching output and one analog output or two switching outputs IO link V1.1

Thin film measuring cell
1 switching output 1 analog output 0…10 V / 4…20 mA
Configuration via IO-Link or button at device
Throttle element in the pressure channel
Connector 4-pole, M12x1, A-coded
Maximum operating pressure 600 bar
Component series 3X
Pressure ratings 100, 250, 400 and 600 bar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Max. pressure	100
Electrical connection description	Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101
Productgroup ID	9,10,11,12,13,14
Conformity description	CE – electro-magnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU
Display	yes
Connection diagram	Internal thread G1/4
Supply voltage	24 VDC
Weight	0.24
Seals	FKM
Output signal	1 switching output, 1 analog output
Hydraulic fluid	HL,HLP,HFC,HETG,HEES,HFD
Conformity	CE,UL,UKCA,EAC,RoHS

01		02		03		04		05		06		07		08
HEDE10	-	3X	/		/		/-		-		-		-	*

01	Hydro-electric pressure switch	HEDE10
02	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
03	Pressure rating maximum 100 bar	100 bar
	Pressure rating maximum 250 bar	250 bar
	Pressure rating maximum 400 bar	400 bar
	Pressure rating maximum 600 bar	600 bar
Output
04	1 switching and 1 analog output	1
04	2 switching outputs	2
Hydraulic connection
05	Internal thread G1/4	Gi
05	Male thread G1/4	Ga
Electrical connection
06	Individual connection
06	Without mating connector; connector M12 DIN EN 61076-2-101 without cable with M12 connector, A-coded	K35 1)
Seal material
07	FKM seals 2)	V
	Without seal (with internal thread)	0
08	Further details in the plain text	*

1)	Mating connectors, separate order, see "Accessories"
2)	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)

Accessories

Mating connectors for the electrical connection see chapter Electrical connection. Mounting clamp and protective cap see chapter Accessories.

Type

Component series		3X

General

Weight		m	kg	0.26
Installation position				any
Ambient temperature range		ϑ	°C	-25 … +80
Storage temperature range		ϑ	°C	-40 … +100
Sine test according to DIN EN 60068-2-6:1996-05				10 ... 2000 Hz, max. 20 g, 10 double cycles
Transport shock according to DIN EN 60068-2-27:1995-03				Half-sine 50 g / 11 ms, 3 x in positive direction, 3 x negative direction (a total of 18 single shocks)
Noise test according to DIN EN 60068-2-64: 1995-08				20...2000 Hz, 10 gRMS, 24 h
Conformity	CE			DIN EN 60947-1: 2007 / A1: 2011 / A2: 2014 DIN EN 60947-5-1: 2004 / A1: 2009 DIN EN 61058-1: 2002 / A2: 2008 DIN EN 60529: 1991 / A2: 2013
Conformity	UL			UL, 508 17th edition File No E223220 (up to 350 bar)
Protection class according to DIN EN 60529				IP 65 / IP 67 with mating connector mounted and fitted
Protection class according to EN 50178				III

Hydraulic

Pressure measuring ranges		pN	bar	100	250	400	600	100	250	400	600	100	250	400	600	100	250	400	600
Overload protection		pmax	bar	300	500	800		300	500	800		300	500	800		300	500	800
Bursting pressure		p	bar	400	1000	1600	2500	400	1000	1600	2500	400	1000	1600	2500	400	1000	1600	2500
Switching point	Setting range		bar	1 … 100	2 … 250	4 … 400	6 … 600	1 … 100	2 … 250	4 … 400	6 … 600	1 … 100	2 … 250	4 … 400	6 … 600	1 … 100	2 … 250	4 … 400	6 … 600
Switching point	Reset range		bar	0.5 … 99.5	1 … 249	2 … 398	3 … 597	0.5 … 99.5	1 … 249	2 … 398	3 … 597	0.5 … 99.5	1 … 249	2 … 398	3 … 597	0.5 … 99.5	1 … 249	2 … 398	3 … 597
In steps of			bar	0.5	1	2	3	0.5	1	2	3	0.5	1	2	3	0.5	1	2	3
Druckflüssigkeit 1)				see table below
Hydraulic fluid temperature range	(at the working port of the pressure switch)	ϑ	°C	-25 … +80
Viscosity range			mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c)				Class 20/18/15 1)
Materials in contact with the medium				V4A (1.4542), FKM (with male thread)
Pressure port	Internal thread "Gi"			G1/4
Pressure port	Male thread "Ga"			G1/4

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM, low-temperature seals	DIN 51524	90220
Bio-degradable	⇒Insoluble in water	HETG	NBR, FKM	ISO 15380	90221
	⇒Insoluble in water	HEES	FKM	ISO 15380
	⇒Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	⇒Water-free	HFDU, HFDR	FKM	ISO 12922	90222
Flame-resistant	⇒Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922	90223

Important information on hydraulic fluids:

For more information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The flash point of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature.

• Flame-resistant – containing water:

- Maximum pressure differential per control edge 50 bar

- Pressure pre-loading at the tank port >20% of the pressure differential, otherwise increased cavitation

- Life cycle as compared to operation with mineral oil HL, HLP 50 to 100%

• Bio-degradable and flame-resistant:

When using hydraulic fluids that are simultaneously zinc-solving, zinc may accumulate (700 mg zinc per pole tube).

Electric

	Electrical connection				M12 plug-in connection, gold-plated contacts
Input variables	Operating voltage		UB		18 … 30 VDC
	Current consumption		I	mA	< 50
	Isolation resistance		mΩ		>100 (500 VDC)
Output parameters	Analog output	Current carrying capacity	U		0 ... 10 VDC (minimum load 2000 Ω)
		Voltage	I		4 ... 20 mA (max. load (UB – 10) x 50 Ω)
		Rise time (10 to 90 %)	t	ms	3
	Switching output	Output function			Normally open contact / normally closed contact programmable
		Current carrying capacity 1)	I	mA	150
		Voltage drop (short-circuit protection clocked)	U	V	< 2.5
		Overload-resistant			yes
		Switching frequency	f	Hz	≤ 170
Accuracy / variations	Characteristic curve deviation 2)			%	< ± 0.5
	Temperature coefficient	Zero point and range			< 0.2 % / 10 K
	Hysteresis			%	< ± 0.25
	Switching point accuracy			%	< ± 0.5
	Repetition accuracy			%	0.1
Programming options					Hysteresis/window; normally open contact/normally closed contact; activation, deactivation delay; damping; indicator unit/diagnosis output
	Long-term drift under reference conditions (6 months)			%	0.05
	EMC (electro-magnetic compatibility)	EN 61000-4-2 ESD		kV	4 / 8
		EN 61000-4-3 HF radiated		V/m	10
		EN 61000-4-4 Burst		kV	2
		EN 61000-4-5 Surge		kV	1
		EN 61000-4-6 HF conducted		V	10
Reaction times	Readiness delay time			s	0.3
	Minimal reaction time switching output			ms	<3
	Adjustable delay time dS, dr			s	0...50
	Damping switching output (dAP)			s	0...4
	Damping analog output (dAA)			s	0...4
	Rise time analog output			ms	< 3
	Watchdog integrated				yes
	Switching cycles min.				100 million / 50 million with pressure rating 600 bar
IO-Link device	Transmission type				COM2 (38.4 kBaud)
	IO-Link revision				1.1
	SDCI standard				IEC 61131-9
	Profiles				Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
	SIO mode				yes
	Required master port class				A
	Process data analog				1
	Process data binary				2
	Minimal process cycle time			ms	2.3
Display	Indicator unit				3 x LED green (bar, psi, MPa)
	Switching status				2 x LED yellow
	Measured values				4-digit alphanumerical display / alternating display (red and green)

1)	200 (...60 °C); 250 (...40 °C) mA
2)	according to end point setting DIN16086

For applications outside these parameters, please consult us!

1 ... 8: indicator LEDs
LED 1	Switching status OUT1 (is illuminated when output 1 is switched through)
LED 8	Switching status OUT2 (is illuminated when output 2 is switched through)
LED 2 ... 7 1)	System pressure in the specified unit of measurement
9: Enter key [•]
Selection of the parameters and confirmation of the parameter values
10 and 11: Arrows up [⇑] and down [⇓]
Setting of the parameter values (permanent by continuous pressure; step-wise by pressing individually)
12: Alphanumerical display, 4-digit
Display of the current system pressure
Display of the parameters and parameter values

1)	With variant 1 switching and 1 analog output, these LEDs don’t have any function.

according to DIN EN 175301-803

"K35" two switching outputs
n-switching (NPN)	p-switching (PNP)

OUT1: Switching output or IO-Link OUT2: Switching output Color marking according to DIN EN 60947-5-2	OUT1: Switching output or IO-Link OUT2: Switching output Color marking according to DIN EN 60947-5-2
"K35" one switching and one analog output:

OUT1: Switching output or IO-Link OUT2: 4 ... 20 mA / 0 ... 10 V Color marking according to DIN EN 60947-5-2

Connector view at the device:

When establishing the electrical connection, the protective earthing conductor (PE, grounded) must be connected correctly.

Dimensions in mm

1)	Depending on lubrication, seal and pressurization

1	Status LEDs
2	4-digit alphanumerical display
3	Programming button
4	Dimension for "Gi" version with internal thread G1/4"
5	Dimension for "Ga" version with male thread G1/4"

Notice:

Oscillation-free installation is recommended.

Mounting clamp for HEDE 10

Designation	Material number	Buy
Fastening clamp E10193	R900786138	eShop

Protective cap for HEDE 10

Designation	Material number	Buy
Protective cap HEDE10-3X	R901453193	eShop

Show all products

Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1

4P Z24

Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1

4P Z24

For sensors and valves with connector “K24”, “K35” and “K72” Mating connectors M12, 4-pole, line cross-section 0.75 mm2
