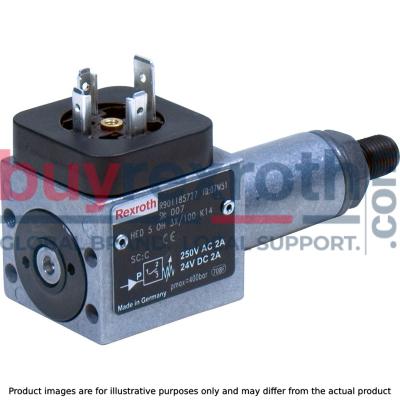

PRESSURE SWITCH HED 5 OH-3X/350K14V
Manufacturer: Bosch Rexroth
Material #: R901227564
Model : HED 5 OH-3X/350K14V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth HED 5 OH-3X/350K14V (R901227564) is a high-precision hydraulic pressure switch designed for reliable monitoring and control of pressure systems. This piston-type pressure switch features a micro switch with both normally closed (NC) and normally open (NO) contact functions, ensuring versatile application across various circuit setups. The robust design includes FKM seals for compatibility with a range of hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR.
This model boasts exceptional hysteresis characteristics and high repetition accuracy of less than 1% of the set pressure value. It has a maximum operating pressure rating of 350 bar and offers selectable pressure ratings including 50, 100, 200, 250, and 315 bar to suit different requirements. The device is equipped with a large cubic DIN EN electrical connector that supports potential-free switching of currents ranging from mA to .5 A without any mating connector included.
The HED 5 OH-3X/350K14V comes with a supply voltage range between 24 to 240 V AC/DC and has been built to conform with international standards including CE according to the Low Voltage Directive EU Electrical connector Connector pole PE and is also recognized by CCC and UL certifications (except for the MT version). Its flange connection design ensures secure installation while its light weight of .52 kg facilitates easy handling.
For optimal performance and longevity, it is recommended that the pressure switch be installed in an environment with minimal vibrations and protected from hydraulic pressure surges. The product group ID associated with this model are 45060, 45061, 45062, 45063, and 45064. Users can expect consistent operation due to the careful construction comprising housing components that house the piston mechanism supported by a spring plate which actuates the micro switch upon reaching designated pressure levels.
$364.00 USD
More are expected on April 8, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 8, 2025 when ordered in
This product is eligible for factory repair.
400 bar micro switch with NC contact/NO contact function, device connector DIN EN 175301-803 (large cubic connector)
Potential-free switching of currents from 1 mA to 2.0 A. Small hysteresis, depending on the set switching point. High repetition accuracy < 1% of the set pressure.
Unpacked Weight: 0.23 kg
4 pressure ratings Electrical connection with large cubic connector Micro switch with NC/NO contact function Potential-free switching of currents from 1 mA to 2 A
Hydro-electric pressure switches of type HED 5 are piston type pressure switches.
They basically consist of housing (1), installation kit with piston (2), compression spring (3), adjustment element (4) and micro switch (5)
The pressure to be monitored acts on the piston (2)
The latter is supported by the spring plate (6) and acts against the continuously adjustable force of the compression spring (3).
The spring plate (6) transmits the movement of the piston (2) onto the micro switch (5). This switches the electric circuit on or off, depending on the circuit set-up.
Notice:
In order to increase the life cycle, the pressure switch should be mounted with low vibrations and protected from hydraulic pressure surges.
Switching pressure differential (measured with HLP46, ϑOil = 40 ±5 °C)
Pressure rating 50 bar
Pressure rating 100 bar
Pressure rating 200 bar
Pressure rating 350 bar
Notice:
The switching pressure differential may increase within the course of the life cycle due to the deterioration of the oil quality and the number of load cycles.
|
"K14" without indicator light |
"K14" with indicator light |
|
|
|
Switching function Terminals 1-2: Contact opens in case of pressure increase Terminals 1-3: Contact closes in case of pressure increase |
|
Notice:
For general information on safety, installation or commissioning, see operating instructions.
Type HED 5 …K14
Dimensions in mm
|
1 |
Adjustment element |
|
2 |
Plug-in connection according to EN 175301-803 (port “K14”) |
|
3 |
Mating connector without circuitry (separate order) |
|
4 |
Mating connector with circuitry (separate order) |
|
5 |
Space required to remove the mating connector |
|
6 |
Seal ring (connection bore of the counterpart: max. Ø6) |
Mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762-M4X45-10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14)
Tightening torque MA = 2 Nm ± 10 %
Material no. R913000370
Mating connectors for mechanical pressure switches with connector “K14”, without circuitry, standard
4P Z14
Mating connectors for mechanical pressure switches with connector “K14”, without circuitry, standard
4P Z14
For mechanical pressure switches with connector “K14”, according to EN 175301-803 and ISO 4400, 3-pole + PE, “large cubic connector”Data sheet
Spare parts & repair
Mating connectors for mechanical pressure switches with connector “K14”, with indicator lights at connections 2 and 3
4P Z15L
Mating connectors for mechanical pressure switches with connector “K14”, with indicator lights at connections 2 and 3
4P Z15L
For mechanical pressure switches with connector “K14”, according to EN 175301-803 and ISO 4400, 3-pole + PE, “large cubic connector”Data sheet
Spare parts & repair
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1
4P Z24
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1
4P Z24
For sensors and valves with connector “K24”, “K35” and “K72” Mating connectors M12, 4-pole, line cross-section 0.75 mm2Data sheet
Spare parts & repair
