PRESSURE SWITCH HED 5 OH-3X/100K14

Manufacturer: Bosch Rexroth

Material #: R901185727

Model : HED 5 OH-3X/100K14

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth HED 5 OH-3X/100K14 (R901185727) is a high-precision hydraulic pressure switch designed for reliable monitoring and control of pressure in hydraulic systems. This piston type pressure switch is characterized by its robust construction and features a bar micro switch with both normally closed (NC) and normally open (NO) contact functions, allowing for the potential-free switching of currents ranging from milliamps to 2 amps. The device ensures small hysteresis and high repetition accuracy, which is less than 1% of the set pressure, contributing to the consistent performance of the system it's integrated into. The HED 5 OH-3X/100K14 comes with an NBR seal and offers flange connection capabilities, making installation straightforward. It has a maximum pressure rating of 315 bar and does not include a mating connector; however, it does have a large cubic connector conforming to DIN EN standards. The electrical connection is described as a connector with pole + PE according to DIN EN, ensuring secure and reliable electrical integration. This model has been designed for use with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, and HFC. It conforms to CE standards according to the Low Voltage Directive EU Electrical connector specifications. Moreover, it boasts certifications such as CE, CCC (except for MT version), and UL approval. The product group ID includes numbers 4 through 8 indicating its categorization within Bosch Rexroth's product offerings. With an operating voltage range from 24 to 240 V AC/DC and a weight of approximately 0.5 kg, this pressure switch provides versatility in application while maintaining durability. In summary, the Bosch Rexroth HED 5 OH-3X/100K14 offers precise control for hydraulic systems demanding high accuracy in pressure monitoring with its durable design and comprehensive certification compliance ensuring reliability in various operational conditions.

$333.00 USD

More are expected on September 30, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as September 30, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

PRESSURE SWITCH HED 5 OH-3X/100K14

350 bar micro switch with NC contact/NO contact function, device connector DIN EN 175301-803 (large cubic connector)

Potential-free switching of currents from 1 mA to 2.0 A. Small hysteresis, depending on the set switching point. High repetition accuracy < 1% of the set pressure.

Unpacked Weight: 0.2355 kg

4 pressure ratings Electrical connection with large cubic connector Micro switch with NC/NO contact function Potential-free switching of currents from 1 mA to 2 A

Hydro-electric pressure switches of type HED 5 are piston type pressure switches.

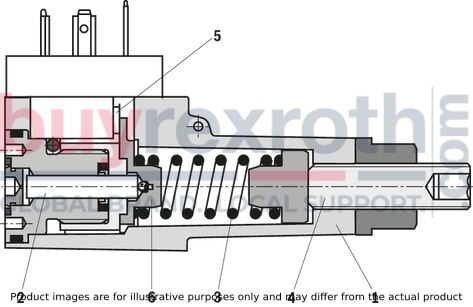

They basically consist of housing (1), installation kit with piston (2), compression spring (3), adjustment element (4) and micro switch (5)

The pressure to be monitored acts on the piston (2)

The latter is supported by the spring plate (6) and acts against the continuously adjustable force of the compression spring (3).

The spring plate (6) transmits the movement of the piston (2) onto the micro switch (5). This switches the electric circuit on or off, depending on the circuit set-up.

Notice:

In order to increase the life cycle, the pressure switch should be mounted with low vibrations and protected from hydraulic pressure surges.

NBR seal
Piston type pressure switch
Micro switch with NC contact/NO contact function
Flange connection
Pressure rating maximum 100 bar
Without mating connector, connector DIN EN 175301-803
Maximum operating pressure 400 bar
Pressure ratings 25, 63, 100, 200 and 400 bar
UL approval
Component series 3X
CCC approval (except for MT version)

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Max. pressure	350
Electrical connection description	Connector 4-pole (3 + PE) according to EN 175301-803
Productgroup ID	9,10,11,12,13,14
Conformity description	CE – according to Low-Voltage Directive 2014/35/EU
Electrical connector	Connector 4-pole (3 + PE)
Connection diagram	Flange connection
Supply voltage	12...250 V AC/DC
Weight	0.2355
Seals	NBR
Output signal	Micro switch with normally closed contact/NO contact function
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HETG,HFC
Conformity	CE,CCC,UL

01	Piston type pressure switch	HED5
02	Flange connection	OH
03	Component series 30 ... 39 (version “G and “P”) (30 ... 39: unchanged installation and connection dimensions)	3X
04	Pressure rating maximum 50 bar	50
	Pressure rating maximum 100 bar	100
	Pressure rating maximum 200 bar	200
	Pressure rating maximum 350 bar	350
Electrical connection
05	Individual connection
05	Without mating connector; connector DIN EN 175301-803	K14 1)
Seal material
07	NBR seals	no code
	FKM seals	V
	Low-temperature seals (max. 315 bar)	MT
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
08	Further details in the plain text

	1) Mating connectors, separate order, see accessories

Type

Component series		3X

General

Weight		m	kg	0.2
Installation position				any
Ambient temperature ranges (NBR seals)		ϑ	°C	-30 … +50
Ambient temperature ranges (FKM seals)		ϑ	°C	-20 … +50
Ambient temperature range (low-temperature seal)		ϑ	°C	-40 … +50
Sine test				DIN EN 60068-2-6:1996-05, 10...2000 Hz, max. 10 g, 10 double cycles
Transport shock				DIN EN 60068-2-27:1995-03, half-sine 15 g / 11 ms, 3 x in positive direction, 3 x in negative direction (a total of 6 single shocks per axis)
Noise test				DIN EN 60068-2-64: 1995-08, 20...2000 Hz, 14gRMS, 24 h
Conformity/certification	CE			DIN EN 61058-1: 2002 / A2: 2008 DIN EN 60947-1: 2007 / A1: 2011 DIN EN 60947-5-1: 2004 / A1: 2009 DIN EN 60529: 1991 / A2: 2013
	UL			UL, 508 17th edition File No E223220 (up to 350 bar)
	CCC			GB 14048.5-2008

Hydraulisch

Pressure rating	p	bar	50	100	200	350
Operating pressure NBR/FKM seals, max.	p	bar	350			400
Pressure adjustment range (decreasing)	p	bar	5 … 50	10 … 100	15 … 200	25 … 350
Pressure differential per rotation 1)	p	bar	≈ 10	≈ 17	≈ 38	≈ 60
Hydraulic fluid 1)			see table below
Hydraulic fluid temperature range (NBR seals)	ϑ	°C	-30 … +80
Hydraulic fluid temperature range (FKM seals)	ϑ	°C	-20 … +80
Hydraulic fluid temperature range (low-temperature seals)	ϑ	°C	-40 … +80
Viscosity range	μ	mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 2)			Class 20/18/15 according to ISO 4406 (c)
Load cycles			≥ 4 million

1)	Direction of rotation: clockwise → Set pressure increase counterclockwise → Set pressure decrease
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oils and related hydrocarbons		HL, HLP	NBR, FKM	DIN 51524
Mineral oils and related hydrocarbons		HVLP	Low-temperature design MT
Bio-degradable	Insoluble in water	HETG	NBR, FKM	ISO 15380
	Insoluble in water	HEES	FKM	ISO 15380
	Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	Containing water	HFC	NBR	ISO 12922
Important information on hydraulic fluids! Further information and information on the use of other hydraulic fluids on request!

Elektrisch

Anschlussart				EN 175301-803, 3-pole + PE
Protection class according to DIN EN 60529				IP65 with mating connector mounted and fitted
Line cross-section	Mating connector, max.		mm²	1.5
Line entry mating connector				M16 x 1.5
Switching frequency, max.			1/h	4800
Switching accuracy (repetition accuracy)				< 1 % of the set pressure
Switch				according to VDE 0630-1/DIN EN 61058-1
Transition resistance		R	mΩ	< 50
Insulation coordination				Überspannung Kategorie 3
Contamination				Degree of contamination 3
Bounce time	On	t	ms	< 5
Bounce time	Off	t	ms	< 5
Current, min. 1)		I	mA	1.0 with 24 V DC
Current, max.		I	A	0.5 with 50 V DC, inductive
		I	A	0.2 with 125 V DC, inductive
		I	A	0.1 with 250 V DC, inductive
		I	A	2.0 with 250 V AC

1)	DC-12 (utility model according to IEC 60947)
2)	DC-22 (utility model according to IEC 60947)
3)	AC-12 (utility model according to IEC 60947)

Switching power
Switching cycles	Voltage U in V	Ohmic load max. in A	Inductive load, max. in A
2 million	250, AC	2 A for 2 million switching cycles (AC-12)	0.5 A, cos. ϕ = 0.6 for 2 million switching cycles (DC-12)
2 million	24, DC	2 A for 2 million switching cycles (AC-12)	0.5 A for 2 million switching cycles 3)
5 million	24, DC	5.0 mA for 5 million switching cycles (DC-12)	‒
3)	Value does not comply with any utility category according to IEC 60947

All variants can be unloaded to pmin = 0 bar. (Observe the switching pressure differential!)

For applications outside these parameters, please consult us!

Switching pressure differential (measured with HLP46, ϑOil = 40 ±5 °C)

Pressure rating 50 bar

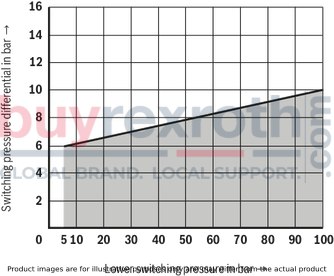

Pressure rating 100 bar

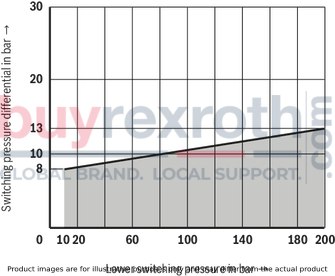

Pressure rating 200 bar

Pressure rating 350 bar

Notice:

The switching pressure differential may increase within the course of the life cycle due to the deterioration of the oil quality and the number of load cycles.

"K14" without indicator light	"K14" with indicator light

Switching function Terminals 1-2: Contact opens in case of pressure increase Terminals 1-3: Contact closes in case of pressure increase

Notice:

For general information on safety, installation or commissioning, see operating instructions.

Type HED 5 …K14

Dimensions in mm

1	Adjustment element
2	Plug-in connection according to EN 175301-803 (port “K14”)
3	Mating connector without circuitry (separate order)
4	Mating connector with circuitry (separate order)
5	Space required to remove the mating connector
6	Seal ring (connection bore of the counterpart: max. Ø6)

Mounting screws (separate order)

4 hexagon socket head cap screws ISO 4762-M4X45-10.9-flZn-240h-L

(friction coefficient μtotal = 0.09 to 0.14)

Tightening torque MA = 2 Nm ± 10 %

Material no. R913000370

Mating connectors for mechanical pressure switches with connector “K14”, without circuitry, standard

4P Z14

Mating connectors for mechanical pressure switches with connector “K14”, without circuitry, standard

4P Z14

For mechanical pressure switches with connector “K14”, according to EN 175301-803 and ISO 4400, 3-pole + PE, “large cubic connector”
