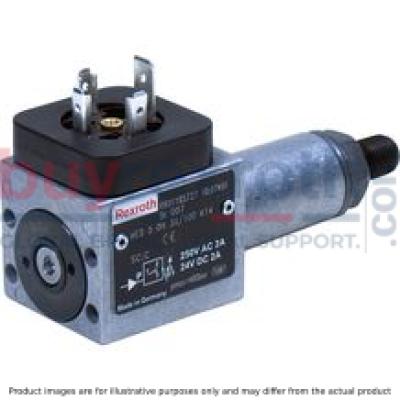

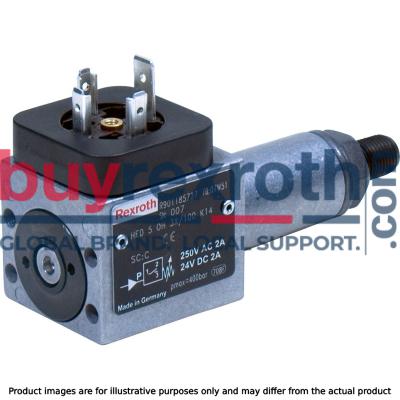

PRESSURE SWITCH HED 5 OH-3X/50K14
Manufacturer: Bosch Rexroth
Material #: R901182344
Model : HED 5 OH-3X/50K14
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth HED 5 OH-3X/50K14 (R901182344) is a high-performance hydraulic piston type pressure switch designed to offer reliable monitoring and control for a range of hydraulic applications. This pressure switch features a robust design with an NBR seal, ensuring compatibility with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, and HFC. The micro switch within the unit can operate with both NC (normally closed) and NO (normally open) contact functions, allowing for potential-free switching of currents ranging from milliamperes to 2 amperes.
With its small hysteresis and high repetition accuracy of less than 1% of the set pressure point, the HED 5 OH-3X/50K14 ensures precise operation. The device's maximum operating pressure is rated at 315 bar and it comes with pressure ratings options of 6, 10, 16, 25, and 50 bar. The electrical connection is facilitated by a large cubic connector according to DIN EN standards without mating connector included.
For added safety and compliance with international standards, this model carries CE marking in accordance with the Low Voltage Directive EU Electrical connector specifications. It also has UL approval and CCC approval (except for MT version), indicating its suitability for various global markets.
The unit's flange connection design allows for easy installation while its weight of approximately 0.8 kg ensures it remains lightweight yet durable. To enhance its lifespan and performance reliability, it is recommended that the HED 5 OH-3X/50K14 be installed in areas with minimal vibrations and protected from hydraulic pressure surges. This Bosch Rexroth pressure switch stands out as a dependable solution for those requiring accurate pressure monitoring in their hydraulic systems.
$333.00 USD
More are expected on April 28, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 28, 2025 when ordered in
This product is eligible for factory repair.
350 bar micro switch with NC contact/NO contact function, device connector DIN EN 175301-803 (large cubic connector)
Potential-free switching of currents from 1 mA to 2.0 A. Small hysteresis, depending on the set switching point. High repetition accuracy < 1% of the set pressure.
Unpacked Weight: 0.23 kg
4 pressure ratings Electrical connection with large cubic connector Micro switch with NC/NO contact function Potential-free switching of currents from 1 mA to 2 A
Hydro-electric pressure switches of type HED 5 are piston type pressure switches.
They basically consist of housing (1), installation kit with piston (2), compression spring (3), adjustment element (4) and micro switch (5)
The pressure to be monitored acts on the piston (2)
The latter is supported by the spring plate (6) and acts against the continuously adjustable force of the compression spring (3).
The spring plate (6) transmits the movement of the piston (2) onto the micro switch (5). This switches the electric circuit on or off, depending on the circuit set-up.
Notice:
In order to increase the life cycle, the pressure switch should be mounted with low vibrations and protected from hydraulic pressure surges.
Switching pressure differential (measured with HLP46, ϑOil = 40 ±5 °C)
Pressure rating 50 bar
Pressure rating 100 bar
Pressure rating 200 bar
Pressure rating 350 bar
Notice:
The switching pressure differential may increase within the course of the life cycle due to the deterioration of the oil quality and the number of load cycles.
|
"K14" without indicator light |
"K14" with indicator light |
|
|
|
Switching function Terminals 1-2: Contact opens in case of pressure increase Terminals 1-3: Contact closes in case of pressure increase |
|
Notice:
For general information on safety, installation or commissioning, see operating instructions.
Type HED 5 …K14
Dimensions in mm
|
1 |
Adjustment element |
|
2 |
Plug-in connection according to EN 175301-803 (port “K14”) |
|
3 |
Mating connector without circuitry (separate order) |
|
4 |
Mating connector with circuitry (separate order) |
|
5 |
Space required to remove the mating connector |
|
6 |
Seal ring (connection bore of the counterpart: max. Ø6) |
Mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762-M4X45-10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14)
Tightening torque MA = 2 Nm ± 10 %
Material no. R913000370
Mating connectors for mechanical pressure switches with connector “K14”, without circuitry, standard
4P Z14
Mating connectors for mechanical pressure switches with connector “K14”, without circuitry, standard
4P Z14
For mechanical pressure switches with connector “K14”, according to EN 175301-803 and ISO 4400, 3-pole + PE, “large cubic connector”Data sheet
Spare parts & repair
Mating connectors for mechanical pressure switches with connector “K14”, with indicator lights at connections 2 and 3
4P Z15L
Mating connectors for mechanical pressure switches with connector “K14”, with indicator lights at connections 2 and 3
4P Z15L
For mechanical pressure switches with connector “K14”, according to EN 175301-803 and ISO 4400, 3-pole + PE, “large cubic connector”Data sheet
Spare parts & repair
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1
4P Z24
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1
4P Z24
For sensors and valves with connector “K24”, “K35” and “K72” Mating connectors M12, 4-pole, line cross-section 0.75 mm2Data sheet
