UPE2-1X/1,1DR0,82/4A-0V
Manufacturer: Bosch Rexroth
Material #: R901091294
Model : UPE2-1X/1,1DR0,82/4A-0V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

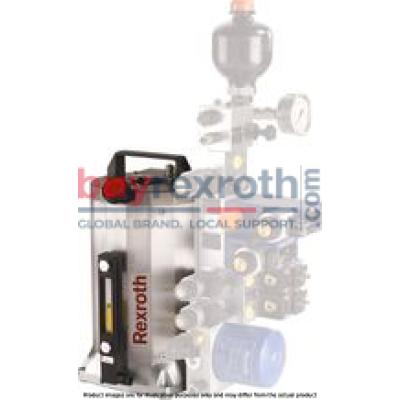

The Bosch Rexroth UPE2-1X/11DR082/4A-0V (R901091294) is an advanced clamping and drive module designed to supply hydraulic fluid to various hydraulic circuits. This self-contained drive system comes ready for connection, featuring a robust aluminum housing that incorporates either a radial piston pump or an external gear pump along with an oil-immersed motor. The motor's stator is pressed into the housing, ensuring efficient heat dissipation to the exterior wall and maintaining operational temperatures below the maximum permissible limit.
Built for short-time and intermittent operations, users must carefully select the duty cycle based on power output and environmental conditions to avoid exceeding the critical operating temperature of 70°C. The module's compact design facilitates vertical installation through four through holes in the tank bottom, optimizing space efficiency while ensuring stability.
The UPE2-1X/11DR082/4A-0V can be optionally outfitted with electric oil level and temperature monitoring systems, a breathing filter, and a complete hydraulic control system. It accommodates various attachment modules such as Basic Module G for simple stroke lowering or pressure holding functions, Directional Valve Module W for controls using valves following DIN form A standards, and Seat Valve Module S which includes a pressure relief block and control blocks tailored to specific applications. These modules can be combined for enhanced functionality.
This model operates quietly despite its significant drive power of 0.75 kW and withstands maximum operating pressures up to 280 bar. The component series X indicates its modernity and adherence to contemporary design standards. With its wide application range and numerous variants available, this clamping and drive module is engineered for versatility while remaining ready for immediate integration into diverse hydraulic systems.
$4,179.00 USD
More are expected on February 3, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as February 3, 2025 when ordered in
The UPE 2 clamping and drive module constitutes a complete drive system which is delivered ready for connection. It is used for the hydraulic fluid supply of hydraulic circuits.
For reasons of thermal loading, the clamping and drive module is to be operated in short-time operation and intermittent operation. The duty cycle is to be selected dependent on the power output and the environmental conditions so that the maximum admissible operating temperature of 80°C is not exceeded.
The clamping and drive module basically consists of the aluminum housing, the pump (radial piston pump or external gear pump) and the oil-immersed motor. The stator of the oil-immersed motor is pressed into the aluminum housing. It leads the winding heat directly to the exterior wall of the aluminum housing.
For the installation, four through holes for the mounting screws have been provided in the tank bottom. The clamping and drive module is to be operated in vertical installation position.
Optionally, the UPE 2 clamping and drive module can be equipped with an electric oil level and oil temperature monitoring, a breathing filter and a complete hydraulic control (see 51144).
Attention!
The clamping and drive module may heat up during operation ⇒ Risk of injury!
Symbol
|
Overview of the attachment modules |
|
|
Basic module "G"
|
Basic module "G" Basic module with integrated pressure relief valve for simple stroke lowering or pressure holding functions If the "G" basic modules are used, no further stacking is possible. For further details see data sheet 51144 "Control block for clamping and drive modules type IH15A" |
|
Directional valve module "W"
|
Directional valve module "W" 1) Allows the design of controls using valves with porting pattern according to DIN 24340 form A The number of directional valve modules depends on the draw-off volume and the displacement of the pump For further details see data sheet 51144 "Control block for clamping and drive modules type IH15A" |
|
Seat valve module "S"
|
Seat valve module "S" 1) Seat valves basically consist of:- a pressure relief block- one or several control blocks- one end block The control is designed depending on the relevant application The number of seat valve modules depends on the draw-off volume and the displacement of the pump For further details see data sheet 51144 "Control block for clamping and drive modules type IH15A"
1) The directional valve modules and the seat valve modules can be combined! |
Technical data
|
Hydraulic fluid 1) |
Mineral oil (HLP) to DIN 51524-2 | ||||||
|
Hydraulic fluid temperature range |
°C |
-20 … +80 | |||||
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2) |
Class 20/18/15 according to ISO 4406 (c) | ||||||
|
Optimum viscosity range |
mm²/s |
10 … 200 | |||||
|
Direction of rotation |
any (radial piston pump), clockwise (external gear pump) | ||||||
|
Installation position |
Vertical | ||||||
|
Operating mode |
All operating modes with which the steady-state oil temperature remains below 80 °C. | ||||||
|
Protection class according to VDE 0530/EN 60034 |
IP54 with completely mounted power unit | ||||||
|
Tank size |
3/R | 4/R | 4/G | 5/R | 7/R | 7/G | |
|
Mass 3) |
kg |
17.8 | 18.4 | 19.6 | 23 | 25 | 26.6 |
| 1) | Please observe our provisions according to data sheet 07075! |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 3) | Without hydraulic fluid |
Radial piston pump
|
Drive power 1.1 kW |
Speed 1) |
n |
rpm |
1380 | 1380 | 2820 | 1380 | 2820 | 1380 | 2820 | 1380 | 2820 |
|
Nominal pressure 1) |
pmax |
bar |
700 | 700 | 700 | 450 | 310 | 250 | 200 | 180 | 140 | |
|
Drive power 2.2 kW |
Speed 1) |
n |
rpm |
1400 | 1400 | 2890 | 1400 | 2890 | 1400 | 2890 | 1400 | 2890 |
|
Nominal pressure 1) |
pmax |
bar |
700 | 700 | 700 | 450 | 700 | 350 | 450 | 250 | 280 |
| 1) | Related to the speed at 50 Hz. |
External gear pump
|
Drive power 1.1 kW |
Speed 1) |
n |
rpm |
1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 2820 | 2820 |
|
Nominal pressure 1) |
pmax |
bar |
260 | 180 | 140 | 110 | 90 | 70 | 45 | 37 | |
|
Drive power 2.2 kW |
Speed 1) |
n |
rpm |
1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 2890 | 2890 |
|
Nominal pressure 1) |
pmax |
bar |
260 | 260 | 260 | 220 | 170 | 140 | 110 | 85 |
| 1) | Related to the speed at 50 Hz. |
Performance diagram
Radial piston pump (specifications apply for a frequency of 50 Hz)
Performance diagram
External gear pump (specifications apply for a frequency of 50 Hz)
Electric motor
The clamping and drive module is designed for the operating mode according to VDE 0530 (EN 60034) for short-time operation S2 and intermittent operation S3 within the nominal power. The electric motor complies with insulation class F and then complete clamping and drive module with protection class IP54.
The direction of rotation of the electric motor depends on the installed pump (in this connection refer to the “Technical data”).
Technical data electric motor
|
Voltage 1) |
U |
V |
230 / 400 ±6 % Δ/Y |
|
Frequency |
f |
Hz |
50 / 60 |
|
Operating mode |
S2 short-time operation, S3 intermittent operation | ||
|
Insulation class |
F (winding) | ||
|
Protection class |
IP54 | ||
|
Number of poles |
2 / 4 | ||
| 1) | Other voltages upon request. |
Frequency 50 Hz
|
Power |
Speed |
Power factor |
Nominal flow with |
|
|
|
|
cos φ |
Δ 230 V |
Y 400 V |
|
kW |
rpm |
|
A |
A |
| 1.1 1) | 1380 | 0.8 | 4.7 | 2.7 |
| 1.1 2) | 2820 | 0.85 | 4.45 | 2.55 |
| 2.2 1) | 1400 | 0.82 | 9.2 | 5.3 |
| 2.2 2) | 2890 | 0.85 | 8.35 | 4.8 |
| 1) | Number of poles 4 |
| 2) | Number of poles 2 |
Frequency 60 Hz
|
Power |
Speed |
Power factor |
Nominal flow with |
|
|
|
|
cos φ |
Δ 230 V |
Y 400 V |
|
kW |
rpm |
|
A |
A |
| 1.1 1) | 1670 | 0.84 | 4.45 | 2.55 |
| 1.1 2) | 3380 | 0.88 | 4.1 | 2.35 |
| 2.2 1) | 1690 | 0.83 | 8.7 | 5 |
| 2.2 2) | 3420 | 0.88 | 7.8 | 4.5 |
| 1) | Number of poles 4 |
| 2) | Number of poles 2 |
Electro-magnetic compatibility of devices (EMC)
According to the “Act on the electro-magnetic compatibility of devices (§2, subsection 4)” and the EEA Directive, the clamping and drive module is no operationally reliable device. In order to prevent electro-magnetic interferences that might occur, interference suppression elements by Murr-Elektronik in 71570 Oppenweiler are recommended.
E.g. type 23050, 3 x 400 V AC, 50 - 60 Hz
Terminal assignment in the terminal box at the clamping and drive module
At the factory
Customer side: Δ triangle U = 230 V
Customer side: Y star U = 400 V
For applications outside these parameters, please consult us!
Sound pressure level
(measured at ν = 41 mm2/s and ϑ = 50 °C)
Radial piston pump
External gear pump
Level switch (option)
The level switch is used for the electric monitoring of the hydraulic fluid filling level. If the minimum oil level is reached, the contact opens and thus gives a signal to the control.
Electrical function
Maximum filling level
Minimum filling level
Technical data
|
Maximum voltage |
V AC/DC |
50 |
|
Maximum current consumption |
A |
0.25 |
|
Maximum power consumption |
W |
3 |
|
Protection class |
IP65 | |
|
Contact type |
Normally closed contact | |
Temperature switch (option)
By means of the temperature switch, the clamping and drive module is protected against operation of inadmissibly high hydraulic fluid temperatures. The temperature switch has a fixedly set switching point switching at a hydraulic fluid temperature of 80 °C.
The switch-back hysteresis is approx. 10 K.
Electrical function
Temperature < 80 °C
Temperature ≥ 80 °C
Technical data
|
Nominal flow with |
250 V AC 50/60 Hz (cos φ 0,95/0,60) |
A |
2.5 / 1.6 |
|
Nominal flow with |
50 V DC |
A |
0.25 |
|
Contact type |
Normally closed contact | ||
|
Tripping temperature |
°C |
80 ±3 | |
Breathing filter (option)
If the clamping and drive module is used in a heavily contaminated environment, we recommend using a breathing filter.
The breathing filter has a filter rating of 10 μm.
Oil tray (option)
Size 3 and size 4 Material no. R901109231
Size 5 and size 7 Material no. R901109235
Color: RAL 7035 "Light gray"
Dimensions in mm
|
1 |
Control connection surface |
|
2 |
Oil drain screw G3/8 |
|
3 |
Breathing filter |
|
4 |
Carrying handle |
|
Nominal tank size |
A |
B |
C |
D |
E |
F |
G |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 3 | 164 | 125 | 85 | 40 | 105 | 280 | 295 |
| 4 | 390 | 405 | |||||
| 5 | 190 | 156 | 98 | 50 | 118 | 320 | 335 |
| 7 | 450 | 465 |
X, Y and Z are reference axes for determining the installation dimensions when control blocks are mounted.
Filling and removal quantity
|
Nominal tank size |
Filling quantity |
Removal quantity |
Removal quantity up to switching point of level switch |
|||
|
Radial piston pump |
Axial piston pump |
Radial piston pump |
Axial piston pump |
Radial piston pump |
Axial piston pump |
|
|
l |
l |
l |
l |
l |
l |
|
| 3 | 2.4 | - | 1 | - | 0.8 | - |
| 4 | 4.5 | 4.1 | 3 | 2.6 | 2.8 | 2.4 |
| 5 | 4.3 | - | 2.3 | - | 2 | - |
| 7 | 7.2 | 6.8 | 5.1 | 4.7 | 4.8 | 4.4 |
