UPE2-1X/1,1FR1,95/3A-1V+R900241988
Manufacturer: Bosch Rexroth
Material #: R900705308
Model : UPE2-1X/1,1FR1,95/3A-1V+R900241988
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

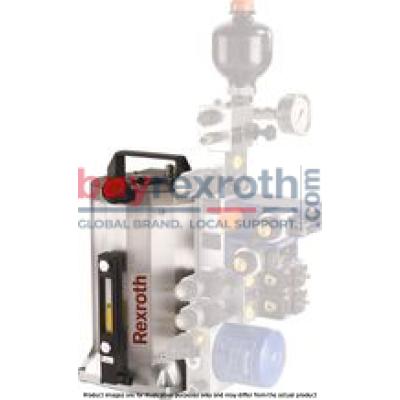

The Bosch Rexroth UPE2-1X/11FR195/3A-1V+R900241988 (R900705308) is a high-performance clamping and drive module designed for the supply of hydraulic fluid to various hydraulic circuits. This compact and efficient unit is ready for connection upon delivery, featuring an aluminum housing that incorporates either a radial piston pump or an external gear pump, along with an oil-immersed motor. The motor's stator is securely pressed into the housing, ensuring effective heat dissipation to the exterior wall and maintaining operational temperatures below the maximum permissible level.
Engineered for vertical installation, the module includes four through holes at the tank bottom for secure mounting. It supports both short-time operation and intermittent operation modes, with duty cycles adjusted based on power output and environmental conditions to avoid surpassing a safe operating temperature.
The UPE2-1X/11FR195/3A-1V+R900241988 can optionally be outfitted with additional features such as electric oil level and temperature monitoring systems, a breathing filter, and complete hydraulic control capabilities. The module's design allows for integration with other attachment modules such as basic module G (integrated pressure relief valve), directional valve module W (for controls using valves with DIN porting pattern A), and seat valve module S (comprising pressure relief block, control blocks, and an end block). These modules can be combined to suit specific control requirements detailed in the data sheet for Control block for clamping and drive modules type IHA.
With its low noise output, compact design, wide application range, and numerous variant options, this clamping and drive module is well-suited for various industrial uses. It boasts a drive power of 0.75 kW, belongs to component series X, and can handle a maximum operating pressure of 280 bar. The unit emphasizes safety during operation due to potential heating risks—highlighting the importance of adhering to proper usage guidelines.
$8,607.00 USD
More are expected on April 23, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 23, 2025 when ordered in

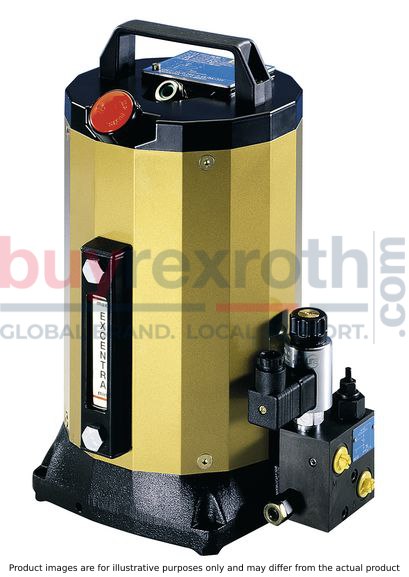

The UPE 2 clamping and drive module constitutes a complete drive system which is delivered ready for connection. It is used for the hydraulic fluid supply of hydraulic circuits.
For reasons of thermal loading, the clamping and drive module is to be operated in short-time operation and intermittent operation. The duty cycle is to be selected dependent on the power output and the environmental conditions so that the maximum admissible operating temperature of 80°C is not exceeded.
The clamping and drive module basically consists of the aluminum housing, the pump (radial piston pump or external gear pump) and the oil-immersed motor. The stator of the oil-immersed motor is pressed into the aluminum housing. It leads the winding heat directly to the exterior wall of the aluminum housing.
For the installation, four through holes for the mounting screws have been provided in the tank bottom. The clamping and drive module is to be operated in vertical installation position.

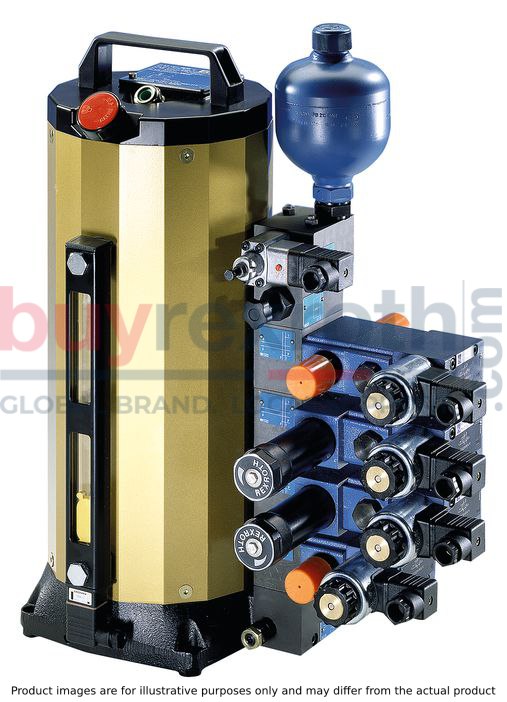

Optionally, the UPE 2 clamping and drive module can be equipped with an electric oil level and oil temperature monitoring, a breathing filter and a complete hydraulic control (see 51144).
Attention!
The clamping and drive module may heat up during operation ⇒ Risk of injury!
Symbol
|
Overview of the attachment modules |
|
|
Basic module "G"
|
Basic module "G" Basic module with integrated pressure relief valve for simple stroke lowering or pressure holding functions If the "G" basic modules are used, no further stacking is possible. For further details see data sheet 51144 "Control block for clamping and drive modules type IH15A" |
|
Directional valve module "W"
|
Directional valve module "W" 1) Allows the design of controls using valves with porting pattern according to DIN 24340 form A The number of directional valve modules depends on the draw-off volume and the displacement of the pump For further details see data sheet 51144 "Control block for clamping and drive modules type IH15A" |
|
Seat valve module "S"
|
Seat valve module "S" 1) Seat valves basically consist of:- a pressure relief block- one or several control blocks- one end block The control is designed depending on the relevant application The number of seat valve modules depends on the draw-off volume and the displacement of the pump For further details see data sheet 51144 "Control block for clamping and drive modules type IH15A"
1) The directional valve modules and the seat valve modules can be combined! |
Technical data
|
Hydraulic fluid 1) |
Mineral oil (HLP) to DIN 51524-2 | ||||||
|
Hydraulic fluid temperature range |
°C |
-20 … +80 | |||||
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2) |
Class 20/18/15 according to ISO 4406 (c) | ||||||
|
Optimum viscosity range |
mm²/s |
10 … 200 | |||||
|
Direction of rotation |
any (radial piston pump), clockwise (external gear pump) | ||||||
|
Installation position |
Vertical | ||||||
|
Operating mode |
All operating modes with which the steady-state oil temperature remains below 80 °C. | ||||||
|
Protection class according to VDE 0530/EN 60034 |
IP54 with completely mounted power unit | ||||||
|
Tank size |
3/R | 4/R | 4/G | 5/R | 7/R | 7/G | |
|
Mass 3) |
kg |
17.8 | 18.4 | 19.6 | 23 | 25 | 26.6 |
| 1) | Please observe our provisions according to data sheet 07075! |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 3) | Without hydraulic fluid |
Radial piston pump
|
Drive power 1.1 kW |
Speed 1) |
n |
rpm |
1380 | 1380 | 2820 | 1380 | 2820 | 1380 | 2820 | 1380 | 2820 |
|
Nominal pressure 1) |
pmax |
bar |
700 | 700 | 700 | 450 | 310 | 250 | 200 | 180 | 140 | |
|
Drive power 2.2 kW |
Speed 1) |
n |
rpm |
1400 | 1400 | 2890 | 1400 | 2890 | 1400 | 2890 | 1400 | 2890 |
|
Nominal pressure 1) |
pmax |
bar |
700 | 700 | 700 | 450 | 700 | 350 | 450 | 250 | 280 |
| 1) | Related to the speed at 50 Hz. |
External gear pump
|
Drive power 1.1 kW |
Speed 1) |
n |
rpm |
1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 2820 | 2820 |
|
Nominal pressure 1) |
pmax |
bar |
260 | 180 | 140 | 110 | 90 | 70 | 45 | 37 | |
|
Drive power 2.2 kW |
Speed 1) |
n |
rpm |
1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 2890 | 2890 |
|
Nominal pressure 1) |
pmax |
bar |
260 | 260 | 260 | 220 | 170 | 140 | 110 | 85 |
| 1) | Related to the speed at 50 Hz. |

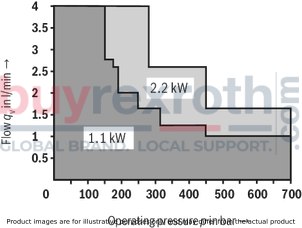

Performance diagram
Radial piston pump (specifications apply for a frequency of 50 Hz)
Performance diagram
External gear pump (specifications apply for a frequency of 50 Hz)
Electric motor
The clamping and drive module is designed for the operating mode according to VDE 0530 (EN 60034) for short-time operation S2 and intermittent operation S3 within the nominal power. The electric motor complies with insulation class F and then complete clamping and drive module with protection class IP54.
The direction of rotation of the electric motor depends on the installed pump (in this connection refer to the “Technical data”).
Technical data electric motor
|
Voltage 1) |
U |
V |
230 / 400 ±6 % Δ/Y |
|
Frequency |
f |
Hz |
50 / 60 |
|
Operating mode |
S2 short-time operation, S3 intermittent operation | ||
|
Insulation class |
F (winding) | ||
|
Protection class |
IP54 | ||
|
Number of poles |
2 / 4 | ||
| 1) | Other voltages upon request. |
Frequency 50 Hz
|
Power |
Speed |
Power factor |
Nominal flow with |
|
|
|
|
cos φ |
Δ 230 V |
Y 400 V |
|
kW |
rpm |
|
A |
A |
| 1.1 1) | 1380 | 0.8 | 4.7 | 2.7 |
| 1.1 2) | 2820 | 0.85 | 4.45 | 2.55 |
| 2.2 1) | 1400 | 0.82 | 9.2 | 5.3 |
| 2.2 2) | 2890 | 0.85 | 8.35 | 4.8 |
| 1) | Number of poles 4 |
| 2) | Number of poles 2 |
Frequency 60 Hz
|
Power |
Speed |
Power factor |
Nominal flow with |
|
|
|
|
cos φ |
Δ 230 V |
Y 400 V |
|
kW |
rpm |
|
A |
A |
| 1.1 1) | 1670 | 0.84 | 4.45 | 2.55 |
| 1.1 2) | 3380 | 0.88 | 4.1 | 2.35 |
| 2.2 1) | 1690 | 0.83 | 8.7 | 5 |
| 2.2 2) | 3420 | 0.88 | 7.8 | 4.5 |
| 1) | Number of poles 4 |
| 2) | Number of poles 2 |
Electro-magnetic compatibility of devices (EMC)
According to the “Act on the electro-magnetic compatibility of devices (§2, subsection 4)” and the EEA Directive, the clamping and drive module is no operationally reliable device. In order to prevent electro-magnetic interferences that might occur, interference suppression elements by Murr-Elektronik in 71570 Oppenweiler are recommended.
E.g. type 23050, 3 x 400 V AC, 50 - 60 Hz

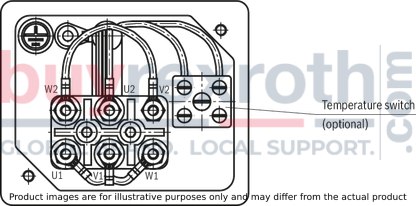

Terminal assignment in the terminal box at the clamping and drive module
At the factory
Customer side: Δ triangle U = 230 V
Customer side: Y star U = 400 V
For applications outside these parameters, please consult us!
Sound pressure level
(measured at ν = 41 mm2/s and ϑ = 50 °C)
Radial piston pump
External gear pump
Level switch (option)
The level switch is used for the electric monitoring of the hydraulic fluid filling level. If the minimum oil level is reached, the contact opens and thus gives a signal to the control.
Electrical function
Maximum filling level
Minimum filling level
Technical data
|
Maximum voltage |
V AC/DC |
50 |
|
Maximum current consumption |
A |
0.25 |
|
Maximum power consumption |
W |
3 |
|
Protection class |
IP65 | |
|
Contact type |
Normally closed contact | |
Temperature switch (option)
By means of the temperature switch, the clamping and drive module is protected against operation of inadmissibly high hydraulic fluid temperatures. The temperature switch has a fixedly set switching point switching at a hydraulic fluid temperature of 80 °C.
The switch-back hysteresis is approx. 10 K.
Electrical function
Temperature < 80 °C
Temperature ≥ 80 °C
Technical data
|
Nominal flow with |
250 V AC 50/60 Hz (cos φ 0,95/0,60) |
A |
2.5 / 1.6 |
|
Nominal flow with |
50 V DC |
A |
0.25 |
|
Contact type |
Normally closed contact | ||
|
Tripping temperature |
°C |
80 ±3 | |
Breathing filter (option)
If the clamping and drive module is used in a heavily contaminated environment, we recommend using a breathing filter.
The breathing filter has a filter rating of 10 μm.
Oil tray (option)
Size 3 and size 4 Material no. R901109231
Size 5 and size 7 Material no. R901109235
Color: RAL 7035 "Light gray"

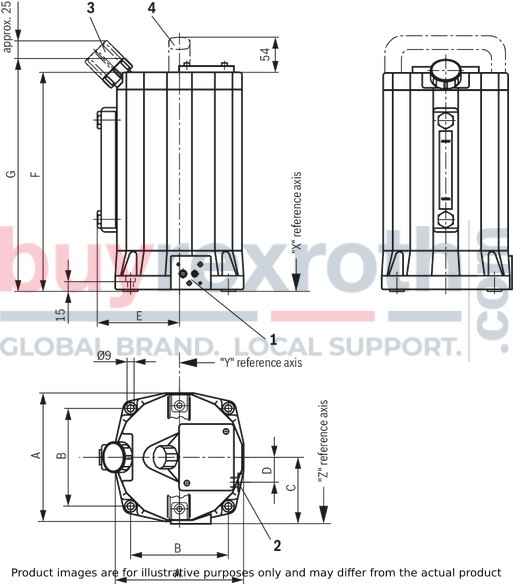

Dimensions in mm
|
1 |
Control connection surface |
|
2 |
Oil drain screw G3/8 |
|
3 |
Breathing filter |
|
4 |
Carrying handle |
|
Nominal tank size |
A |
B |
C |
D |
E |
F |
G |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 3 | 164 | 125 | 85 | 40 | 105 | 280 | 295 |
| 4 | 390 | 405 | |||||
| 5 | 190 | 156 | 98 | 50 | 118 | 320 | 335 |
| 7 | 450 | 465 |
X, Y and Z are reference axes for determining the installation dimensions when control blocks are mounted.
Filling and removal quantity
|
Nominal tank size |
Filling quantity |
Removal quantity |
Removal quantity up to switching point of level switch |
|||
|
Radial piston pump |
Axial piston pump |
Radial piston pump |
Axial piston pump |
Radial piston pump |
Axial piston pump |
|
|
l |
l |
l |
l |
l |
l |
|
| 3 | 2.4 | - | 1 | - | 0.8 | - |
| 4 | 4.5 | 4.1 | 3 | 2.6 | 2.8 | 2.4 |
| 5 | 4.3 | - | 2.3 | - | 2 | - |
| 7 | 7.2 | 6.8 | 5.1 | 4.7 | 4.8 | 4.4 |
