DRC5-5X/50YSO173

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

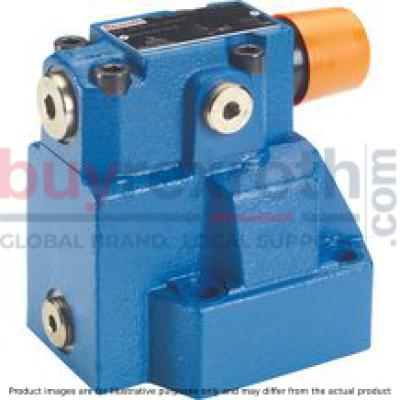

The Bosch Rexroth DRC5-5X/50YSO173 (R900918503) is a sophisticated pressure reducing valve, designed for efficient control within hydraulic systems. This model is specifically engineered to manage the flow from the secondary circuit by utilizing a pilot-operated mechanism. It features a main valve with a spool insert alongside a pilot control valve equipped with an adjustable pressure element. The operation of this valve is straightforward: when in the rest position, the valve allows unrestricted flow of hydraulic fluid from channel B to channel A through the main spool insert. The pressure in channel A influences the bottom of the main spool, while also impacting various components within the pilot control valve through a series of nozzles and channels. The balance between these forces and the spring setting determines when the ball opens, thus regulating when the control spool moves towards a closed position. This product ensures that desired pressure levels are maintained accurately by achieving equilibrium between channel A's pressure and the spring's set value. An external pilot oil return line ensures that fluid is directed back into the tank effectively. Additionally, Bosch Rexroth has incorporated several features for versatility and monitoring purposes. These include options for subplate mounting or threaded connections, as well as various adjustment types like rotary knobs and lockable rotary knobs with scales for precise settings adjustments. For added functionality, an optional check valve can be installed for free return flow from channel A to channel B, and there's a dedicated pressure gauge connection for monitoring reduced pressure in channel A. Designed to conform to ISO porting patterns, this model can also be configured as a cartridge valve if required by specific applications. Its robust design and meticulous engineering make it suitable for complex hydraulic systems requiring reliable pressure reduction capabilities.
