R901206207

DBAW15BF2-2X/315-6EG24N9K4A08V

Manufacturer: Bosch Rexroth

Material #: R901206207

Model : DBAW15BF2-2X/315-6EG24N9K4A08V


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

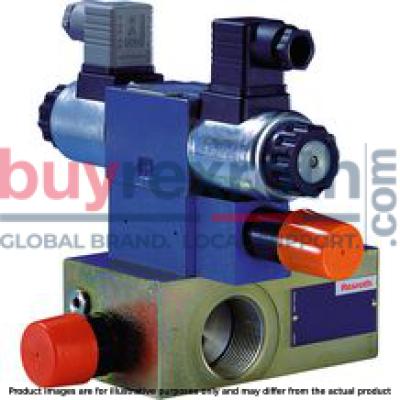

The Bosch Rexroth DBAW15BF2-2X/315-6EG24N9K4A08V (R901206207) is a sophisticated pump safety block designed for direct mounting onto SAE pressure ports of pumps. This pilot-operated pressure relief valve is integrated into a block and serves the critical function of limiting and solenoid-actuated unloading of the operating pressure in hydraulic systems. The DBAW15BF2-2X/315-6EG24N9K4A08V ensures safe operation by employing a directional valve to unload the main control spool, negating the need for an additional cover plate. This model is particularly suited for use with displacement pumps, featuring a pressure relief valve that allows for pressure adjustment only if it is set below the screwin cartridge valve's limit. It also facilitates zero-pressure startup and circulation of the pump, contributing to low circulation pressure due to its proximity to the pump, which also results in reduced compression volume allowing soft switching to depressurized circulation and quick pressure buildup. The unit offers various adjustment types for pressure settings, including options like a rotary knob, sleeve with hexagon and protective cap, a lockable rotary knob with scale, or a rotary knob with scale. Customers can select from different maximum operating pressures and flow rates according to their specific requirements. Designed for low noise levels through direct flange mounting at the pump, this pump safety block exemplifies Bosch Rexroth's commitment to reliability and efficiency in hydraulic system components. Whether used in standard applications or in more complex hydraulic circuits, this model ensures precise control over pressure relief functions within a wide range of operational contexts.

$3,123.00 USD

More are expected on April 17, 2025
  Add to Cart

Status: This product is temporarily out of stock.


Qty: Delivered as early as April 17, 2025 when ordered in

This product is eligible for factory repair.
