THROTTLE CHECK VALVE Z2FS22-8-3X/S2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

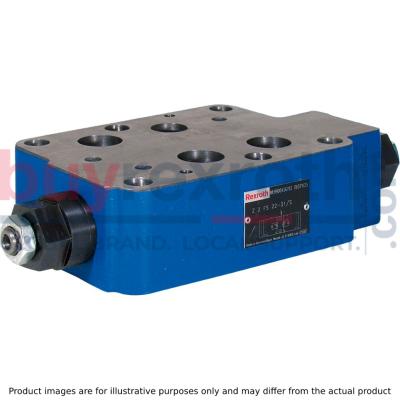

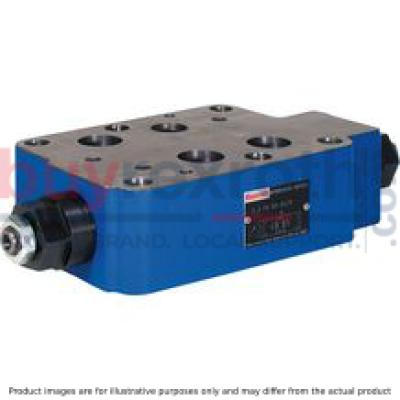

The Bosch Rexroth Z2FS22-8-3X/S2 (R900443176) is a high-performance industrial hydraulic valve designed for reliable flow throttling to a set value. This sandwich plate valve falls under the category of throttle check valves, which are utilized to limit the flow of hydraulic fluid to one or two actuator ports. It features a double throttle check mechanism that allows for adjustable throttling in one direction while permitting free return flow in the opposite direction. The valve's construction includes two symmetrically arranged throttle check valves with adjustable throttle spools that can be fine-tuned via an internal hexagon spindle. The Z2FS22-8-3X/S2 is designed to maintain its throttling position through a combination of active pressure and spring force when handling supply throttling. With its ability to control actuator velocity, this valve is typically installed between the directional valve and the subplate. It offers versatility in application as it can be used for both supply and discharge throttling. The model features corrosion-resistant design, ensuring durability and longevity even in demanding environments. The Bosch Rexroth Z2FS22-8-3X/S2 adheres to ISO standards with its porting pattern and comes equipped with NBR seals compatible with various hydraulic fluids like HL, HLP, HLPD, HVLP, HVLPD, and HFC. Its specifications include a size designation of CETOP D, a maximum operating pressure capacity of up to 315 bar, and a maximum flow rate capability measured in liters per minute (l/min). This model is characterized by its ease of adjustment through a spindle with a hexagon socket and can handle both main or pilot flows for two consumer ports. The component series X indicates its place within the manufacturer's product range, signifying the latest advancements in design and functionality for industrial hydraulic systems.
