3DR10P7-6X/100Y/00M

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

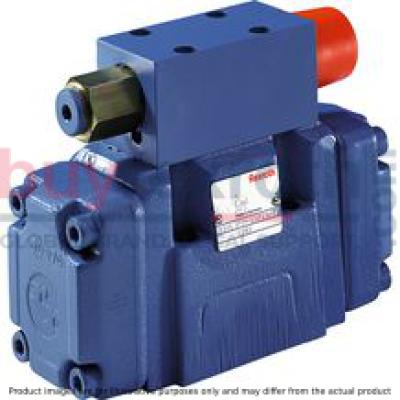

The Bosch Rexroth 3DR10P7-6X/100Y/00M (R900917796) is a sophisticated pressure reducing valve designed to manage system pressure by reducing and limiting the pressure in the secondary circuit. This pilot-operated way pressure reducing valve features a main valve with a control spool and a pilot control valve equipped with a pressure adjustment element. In its initial position, the valve allows unrestricted fluid flow from channel P to A, while simultaneously applying pressure to balance against a compression spring through various internal channels and mechanisms. This dynamic valve operates by building up pressure upstream of a ball in the pilot control valve based on the compression spring's setting, maintaining the control spool in an open position. As fluid flows from channel P through the control spool to channel A, any increase in channel A's pressure beyond the set value triggers the opening of the ball and subsequent closure of the control spool. The desired reduced pressure level is achieved when equilibrium is established between channel A's pressure and the spring's set value. The 3DR10P7-6X/100Y/00M is designed for subplate mounting with porting patterns conforming to DIN form A, ISO, and CETOP RP 121 H standards. With various adjustment elements available such as rotary knobs and lockable rotary knobs with or without scales, as well as sleeves with hexagon and protective cap, this versatile valve offers customization for specific applications. It supports maximum operating pressures up to bar levels and can handle maximum flow rates measured in liters per minute. Additionally, this model includes an external pilot oil return via port Y that must be connected depressurized to ensure proper functioning. The presence of a pressure gauge connection allows for monitoring of reduced pressures within channel A, ensuring precise system regulation. The Bosch Rexroth 3DR10P7-6X/100Y/00M stands out for its reliability in maintaining system efficiency and safety by accurately controlling hydraulic pressures within complex machinery setups.
