MULTISTATION MANIFOLD 7HSR06-25/01D SO8 PHOSPHATED

Manufacturer: Bosch Rexroth

Material #: R900644679

Model : MULTISTATION MANI. 7HSR06-25/01D SO8 PH&

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

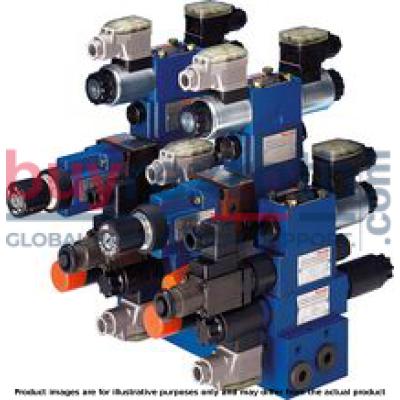

The Bosch Rexroth MULTISTATION MANI. 7HSR06-25/01D SO8 PH (R900644679) is a compact hydraulic control block designed for efficient and reliable operation in a variety of applications. This base element is engineered for ready-for-connection controls using a vertical stacking design, which allows for space-saving installation and easy maintenance. It features common pump and tank lines, as well as separate actuator ports for each station, ensuring flexibility in hydraulic system design. With its phosphate coating conforming to DIN EN standards, the MULTISTATION MANI. 7HSR06-25/01D SO8 PH offers enhanced durability and corrosion resistance. The port sizes for both pump and return are G1/4, facilitating standardized connections. The product has been constructed with the capability to withstand a maximum operating pressure of up to 250 bar, making it suitable for high-pressure applications. This model boasts a compact size with dimensions that support multiple vertical stackings without compromising performance or accessibility. Optional measuring ports can be included in the actuator lines for monitoring and control purposes. Additionally, it allows for the mounting of sandwich plates and valves of size 6, further extending its versatility. The unit's weight is optimized to maintain balance and stability when integrated into hydraulic systems. It operates effectively with HLP hydraulic fluid, ensuring compatibility with standard industrial fluids and maintaining system integrity. Overall, the Bosch Rexroth MULTISTATION MANI. 7HSR06-25/01D SO8 PH is an essential component for those seeking a robust and versatile solution to manage their hydraulic control requirements efficiently. Its design emphasizes ease of use, adaptability, and long-term reliability in demanding operational environments.

$1,246.00 USD

More are expected on September 30, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as September 30, 2024 when ordered in

MULTISTATION MANIFOLD 7HSR06-25/01D SO8 PHOSPHATED

Size 6, 7 valves

Compact hydraulic controls for 7 valves of size 6

Unpacked Weight: 12.24 kg

Base element for ready-for-connection controls in vertical stacking design Compact hydraulic controls Common pump line Common tank line Separate actuator ports of the stations Measuring ports in the actuator lines, optional Mounting of sandwich plates and valves of size 6

Base element for ready-for-connection controls in vertical stacking design
Compacter hydraulic control block
Common pump and tank line
Separate actuator ports of the stations
Size 6
Maximum operating pressure 315 bar

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Max. pressure	315
Surface coating	Phosphate coating DIN EN 12476
Port sizes pump and return	G1/2
Productgroup ID	9,10,11,12,13,14
Connection point	bottom
Size	6
Length	398
Number of vertical stackings	7
Port size	G3/8
Weight	12.24
Hydraulic fluid	HLP

Manifold	01	02	03		04		05	06	07	08
		HSR	06	‒		/	01

Number of ready-for-connection controls in vertical stacking design
01	1 Control	1
	2 controls	2
	3 Controls	3
	4 controls	4
	5 controls	5
	6 controls	6
	7 controls	7
	8 controls	8
	9 controls	9
	10 controls	10
02	Manifold	HSR
03	Size 6	06
Component series
04	Port size: A, B = G3/8; P, T = G1/2	25
04	With enlarged connection thread; port size: A, B = G1/2; P, T = G3/4	35
Connection thread
05	Pipe thread according to ISO 228/1	01
Position of actuator ports
06	Lateral	C
06	At the bottom	D
Version
07	Standard version	no code
07	With measuring ports in A and B	S08 1)
Coating
08	Phosphate coating according to DIN EN 12476	PHOSPHATED 2)
08	Galvanic coating DIN 50979	FE//ZN8//CN/T0
1) Not possible with component series 25 with lateral actuator ports
2) Standard version (manganese or zinc phosphate coating)

Size		6
Material		GGG40
Surface coating		Standard coating: Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants)
Operating pressure max. 1)	bar	315

1)	Manifold without valve fitting

For applications outside these parameters, please consult us!
