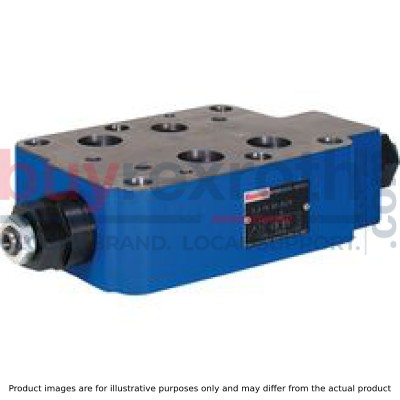

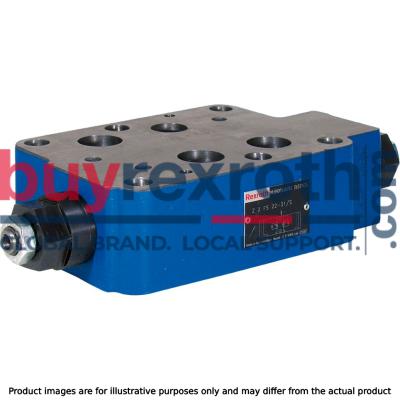

THROTTLE CHECK VALVE Z2FS22-8-3X/SV
Manufacturer: Bosch Rexroth
Material #: R900474580
Model : Z2FS22-8-3X/SV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z2FS22-8-3X/SV (R900474580) is a high-performance industrial hydraulic valve designed for reliable throttling of flow to a set value. This direct actuated valve features a spool symbol for configurations A A, B B or A A, B B, and is mechanically actuated. With its maximum pressure sustainability and multiple ports, the Z2FS22-8-3X/SV is capable of handling a variety of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR.
This sandwich plate valve comes with FKM seals and conforms to NFPA T.. R D SizeCETOP D and ISO connection diagrams. It has been engineered to allow for precise flow limitation of one or two actuator ports using two symmetrically arranged throttle check valves. These valves limit flows in one direction through adjustable throttle spools while permitting free return flow in the opposite direction.
The Z2FS22-8-3X/SV's construction allows for easy adjustment via an internal hexagon spindle. The design ensures that the hydraulic fluid is efficiently directed through the necessary channels and that the throttle spool can be axially adjusted to manage the throttling point effectively. This feature enables users to fine-tune actuator velocity as required.
With its corrosion-protected design and capability for either supply or discharge throttling, this Bosch Rexroth valve stands out as an essential component in various hydraulic systems. Its robust construction ensures longevity even in demanding environments. The valve is part of the X component series and can withstand a maximum operating pressure of bar while accommodating a maximum flow rate of l/min.
$1,492.00 USD
More are expected on December 23, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as December 23, 2024 when ordered in
This product is eligible for factory repair.
Size 25, A1 → A2, B1 → B2 or A2 → A1, B2 → B1, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable throttling of the flow to setting value.
Unpacked Weight: 6.82 kg
Sandwich plate valve Porting pattern according to ISO 4401-08-08-0-05 For limiting the main or pilot flow of two consumer ports Adjustment type: Spindle with hexagon socket For supply or discharge throttling Corrosion-protected design
The valve type Z2FS is a throttle check valve in sandwich plate design. It is used for the flow limitation of one or two actuator ports.
Two symmetrically arranged throttle check valves limit flows (by adjustable throttle spools) in one direction and allow free return flow in the opposite direction.

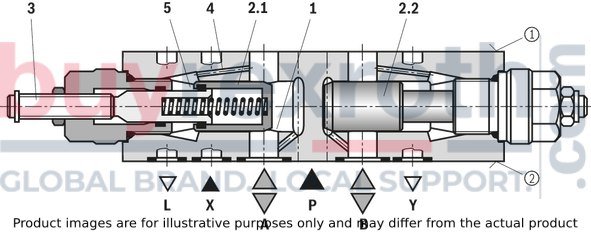

In case of supply throttling, the hydraulic fluid is directed through channel A➀ via throttling point (1) to actuator A➁. The throttle spool (2.1) can be axially adjusted via the spindle (3) for adjustment of the throttling point (1).
Simultaneously, the hydraulic fluid in channel A➀ is directed via the bore (4) to the piston side (5). The active pressure and the spring force retain the throttle spool (2.1) in throttle position.
The hydraulic fluid return flow from actuator B➁ displaces the throttle spool (2.2) and enables the unobstructed flow as check valve. Depending on the version ("S" or "S2"), the throttling effect may occur in supply or discharge.
Flow limitation
For actuator velocity adjustment, the throttle check valve is installed between the directional valve and the subplate.
Supply throttling
|
① |
component side |
|
② |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
Via check valve with closed throttle
Δp-qV characteristic curves
Constant throttle position
|
① |
component side |
|
② |
plate side |
Supply throttling "S"
Version "-"
Version "A"
Version "B"
Discharge throttling "S2"
Version "-"
Version "A"
Version "B"

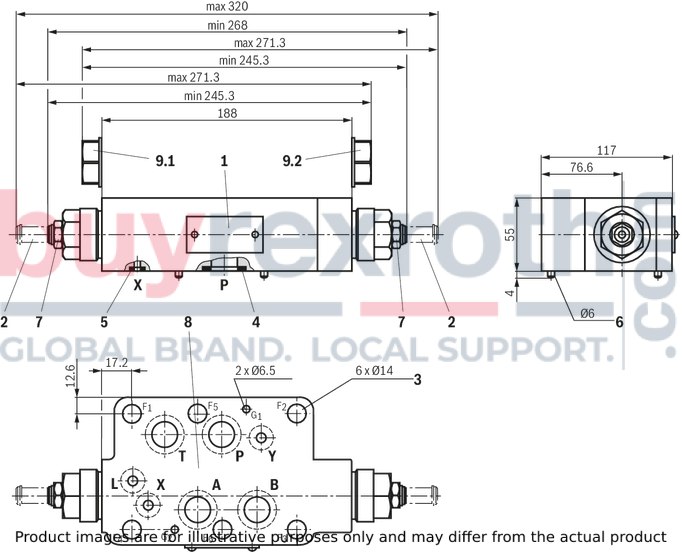

Dimensions in mm
|
|
Required surface quality of the valve contact surface |
|
1 |
Name plate |
|
2 |
Adjustment type "8“ Spindle for changing the flow cross-section (internal hexagon SW6) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Through holes for valve mounting |
|
4 |
Same seal rings for ports A, B, P, T |
|
5 |
Identical seal rings for ports X, Y, L |
|
6 |
Locking pin (included in the scope of delivery) |
|
7 |
Hexagon SW22, tightening torque MA = 25 Nm |
|
8 |
Porting pattern according to ISO 4401-08-08-0-05 |
|
9.1 |
Plug screw with version "B" |
|
9.2 |
Plug screw with version "A" |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
25 |
6 |
ISO 4762 - M12 - 10.9-flZn-240h-L |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
