MULTISTATION MANIFOLD 4HSR10-35/01C PHOSPHATED

Manufacturer: Bosch Rexroth

Material #: R900170964

Model : MULTISTATION MANI. 4HSR10-35/01C PHOSPH&

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth MULTISTATION MANI. 4HSR10-35/01C PHOSPH (R900170964) is a high-quality, compact hydraulic control block designed for efficient and reliable operation of hydraulic valves. This base element is engineered for ready-for-connection controls in a vertical stacking design, facilitating the setup of sandwich plates and valves of size 6. It boasts separate actuator ports for each station, allowing for independent control and flexibility in application. Constructed to withstand a maximum operating pressure of up to 350 bar, this unit ensures robust performance in demanding environments. The common pump line and tank line design simplify the hydraulic circuit while maintaining efficiency. Additionally, the lateral connection points enhance the ease of installation and serviceability. With port sizes pump and return G1/4, the MULTISTATION MANI. 4HSR10-35/01C PHOSPH is equipped to handle adequate flow rates for various hydraulic functions. Its compact size with a length specification allows it to fit into tight spaces without sacrificing capability or functionality. Optional measuring ports in the actuator lines offer the possibility for system diagnostics and monitoring, ensuring that maintenance can be proactive rather than reactive. The ability to mount sandwich plates and valves of size 6 with an additional adapter plate provides versatility for different system configurations. The use of Hydraulic fluid HLP highlights its compatibility with standard hydraulic oils, ensuring easy integration into existing systems. The product's thoughtful design emphasizes both performance and convenience, making it an ideal choice for those seeking a reliable solution for their hydraulic control needs without compromising on space or complexity.

$491.22 USD

More are expected on May 26, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as May 26, 2025 when ordered in

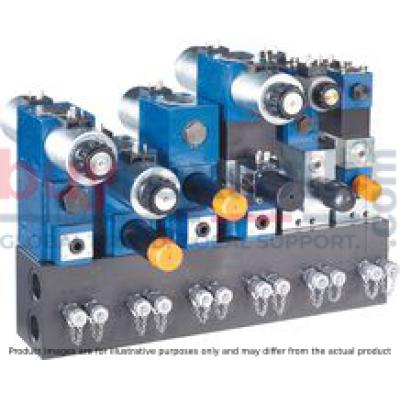

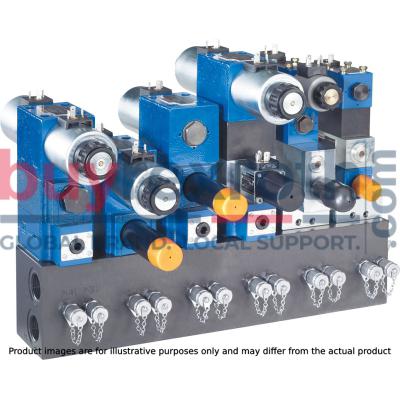

MULTISTATION MANIFOLD 4HSR10-35/01C PHOSPHATED

Size 10, 4 valves

Compact hydraulic controls for 4 valves of size 10

Unpacked Weight: 21.08 kg

Base element for ready-for-connection controls in vertical stacking design Compact hydraulic controls Common pump line Common tank line Separate actuator ports of the stations Measuring ports in the actuator lines, optional Set-up of sandwich plates and valves of size 10 Mounting of sandwich plates and valves of size 6 with additional adapter plate possible

Separate actuator ports of the stations
Base element for ready-for-connection controls in vertical stacking design
Compacter hydraulic control block
Common pump and tank line
Size 10
Maximum operating pressure 315 bar

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Max. pressure	315
Port sizes pump and return	G1
Productgroup ID	9,10,11,12,13,14
Connection point	lateral
Size	10
Length	321
Number of vertical stackings	4
Port size	G3/4
Weight	21.08
Hydraulic fluid	HLP

Manifold	01	02	03		04		05	06	07	08
		HSR	10	‒		/	01

Number of ready-for-connection controls in vertical stacking design
01	1 Control	1
	2 controls	2
	3 Controls	3
	4 controls	4
	5 controls	5
	6 controls	6
	7 controls	7
	8 controls	8
02	Manifold	HSR
03	Size 10	10
Component series
04	Port size: A, B = G1/2; P, T = G3/4	15
04	With enlarged connection thread; port size: A, B = G3/4; P, T = G1	35
Connection thread
05	Pipe thread according to ISO 228/1	01
Position of actuator ports
06	Lateral	C
06	At the bottom	D
Version
07	Standard version	no code
07	With measuring ports in A and B	S08 1)
Coating
08	Phosphate coating according to DIN EN 12476	PHOSPHATED 2)
08	Galvanic coating DIN 50979	FE//ZN8//CN/T0
1) Not possible with component series 25 with lateral actuator ports
2) Standard version (manganese or zinc phosphate coating)

Size		10
Material		GGG40
Surface coating		Standard coating: Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants)
Operating pressure max. 1)	bar	315

1)	Manifold without valve fitting

For applications outside these parameters, please consult us!
