MAGNETIC FIELD SENSOR REED SPDT R 15801

$54.93 USD

Add to Cart

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout. Available for immediate shipment

Qty: Delivered as early as August 15, 2025 when ordered in

MAGNETIC FIELD SENSOR REED SPDT R 15801

Unpacked Weight: 0.035 kg

Productgroup ID	17
Connection type	Cable 2.0 m, 3-pin
Contact type	REED, changeover
Compatible	PSK
Electrical accessories for linear axes	Magnetic sensors
Switching current	≤500
Protection class	IP66
Switching voltage	≤100
Weight	0.035
Use	REED sensor

Part number		R347600903	R347601003	R347601203	R347601303	R347601403	R913011323	R913011324	R347601903	R347601803
Functional principle		Magnetic
Contact type									Hall, PNP normally closed	REED, changeover
Operating voltage	V DC	≤ 30	3.8 ... 30				≤ 30	3.8 ... 30
Current consumption	mA								≤ 10
Output current	mA								≤ 20
Switching voltage	V DC									≤ 100
Switching current	mA									≤ 500
Cable length	mm								2000
Housing protection class									IP66
Load current	mA	500	≤ 20				500	≤ 20
Switching function		REED / changeover contact (NC: C+NC, NO: C+NO)	Hall PNP/normally closed (NC)	Hall, PNP/normally open (NO)	Hall, NPN/normally closed (NC)	Hall, NPN/normally open (NO)	REED / changeover contact (NC: C+NC, NO: C+NO)	Hall PNP/normally closed (NC)
Connection type		Line 2.0 m, 3-pin
Galvanized connection ends		✔
Function indication		‒
Short-circuit protection		‒
Reverse polarity protection		‒
Switch-on suppression		‒
Switching frequency	kHz	2.5
Pulse delay (Off delay)		‒
Maximum permissible starting speed	m/s	2
Suitable for flexing installation 1)		‒
Can withstand torsion 1)		‒
Weld spark resistant 1)		‒
Cable cross-section 1)	mm2	3x0,14
Cable diameter D 1)		3.2 mm ±0.2
Bending radius, stationary 1)		‒
Bending radius, flexing 1)		‒
Bending cycles 1)		‒
Maximum permissible travel speed 1)		‒
Maximum permissible acceleration 1)		‒
Permissible ambient temperature (min ... max)		-40 °C ... +85 °C
Protection type		IP66
MTTFd (as per EN ISO 13849-1 )		‒
Certifications and approvals		‒

1)	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain.

Attention: R347601803 has 2 switching points.

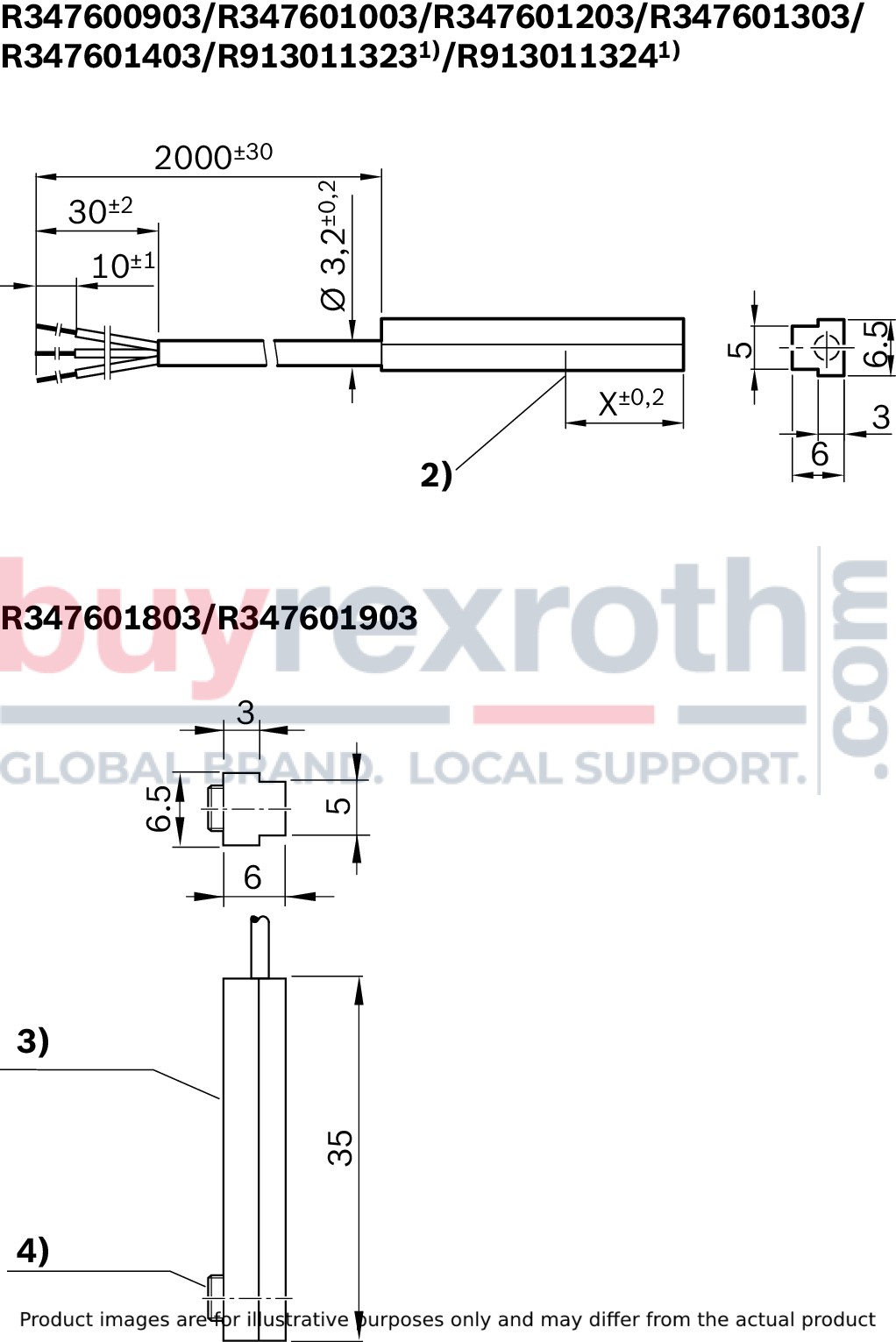

Part number	Activation point (dimension "X")
Part number	mm
R347600903	9
R347601003	13.65
R347601203
R347601303
R347601403
R913011323	9
R913011324	13.65
R347601903	-
R347601803	-

No certificate for import into

the Chinese market is necessary for these products.
