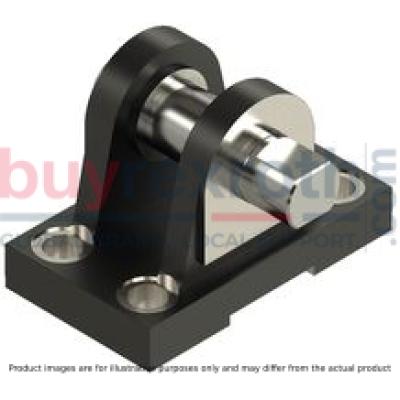

BEARING PEDESTAL EMC-HD 125 PSBG
Manufacturer: Bosch Rexroth
Material #: R156350100
Model : BEARING PEDESTAL EMC-HD 125 PSBG
$544.29 USD
More are expected on July 30, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as July 30, 2024 when ordered in
Dimensions
|
EMC-HD |
085 | 105 | 125 | 150 | 180 | ||
|
CK 1) |
H9 |
mm |
32 | 40 | 50 | 63 | 80 |
|
CL |
h16 |
mm |
70 | 90 | 110 | 140 | 170 |
|
CM |
A12 |
mm |
32 | 40 | 50 | 63 | 80 |
|
FL |
js12 |
mm |
65 | 76 | 95 | 112 | 140 |
|
G 2) |
f7 |
mm |
25 | 30 | 40 | 53 | 70 |
|
HB |
H13 |
mm |
17.5 | 22 | 26 | 33 | 39 |
|
KL |
mm |
13 | 16 | 19 | 20 | 26 | |
|
L 2) |
mm |
114.5 | 135 | 157 | 198 | 230 | |
|
LE |
min. |
mm |
43 | 52 | 65 | 75 | 95 |
|
MR |
max. |
mm |
32 | 40 | 50 | 63 | 80 |
|
RC |
js14 |
mm |
50 | 65 | 80 | 100 | 125 |
|
S |
26 ‒ 1 mm deep | 33 ‒ 1 mm deep | 40 ‒ 1 mm deep | 48 ‒ 1 mm deep | 57 ‒ 1 mm deep | ||
|
SL 2) |
mm |
90.5 | 112 | 130 | 165 | 192 | |
|
TB |
js14 |
mm |
110 | 130 | 170 | 210 | 250 |
|
UH |
max. |
mm |
143 | 170 | 220 | 270 | 320 |
|
UR |
max. |
mm |
85 | 108 | 130 | 160 | 210 |
| 1) | Matching pivot pin ⌀ f7 (pin and pin locking feature are included in the scope of supply and are not ready-mounted on delivery) |
| 2) | Values deviate from ISO 8132 standard |
| Note: Non-dimensioned contours may deviate from the illustration and/or from the CAD file. |
